Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
209

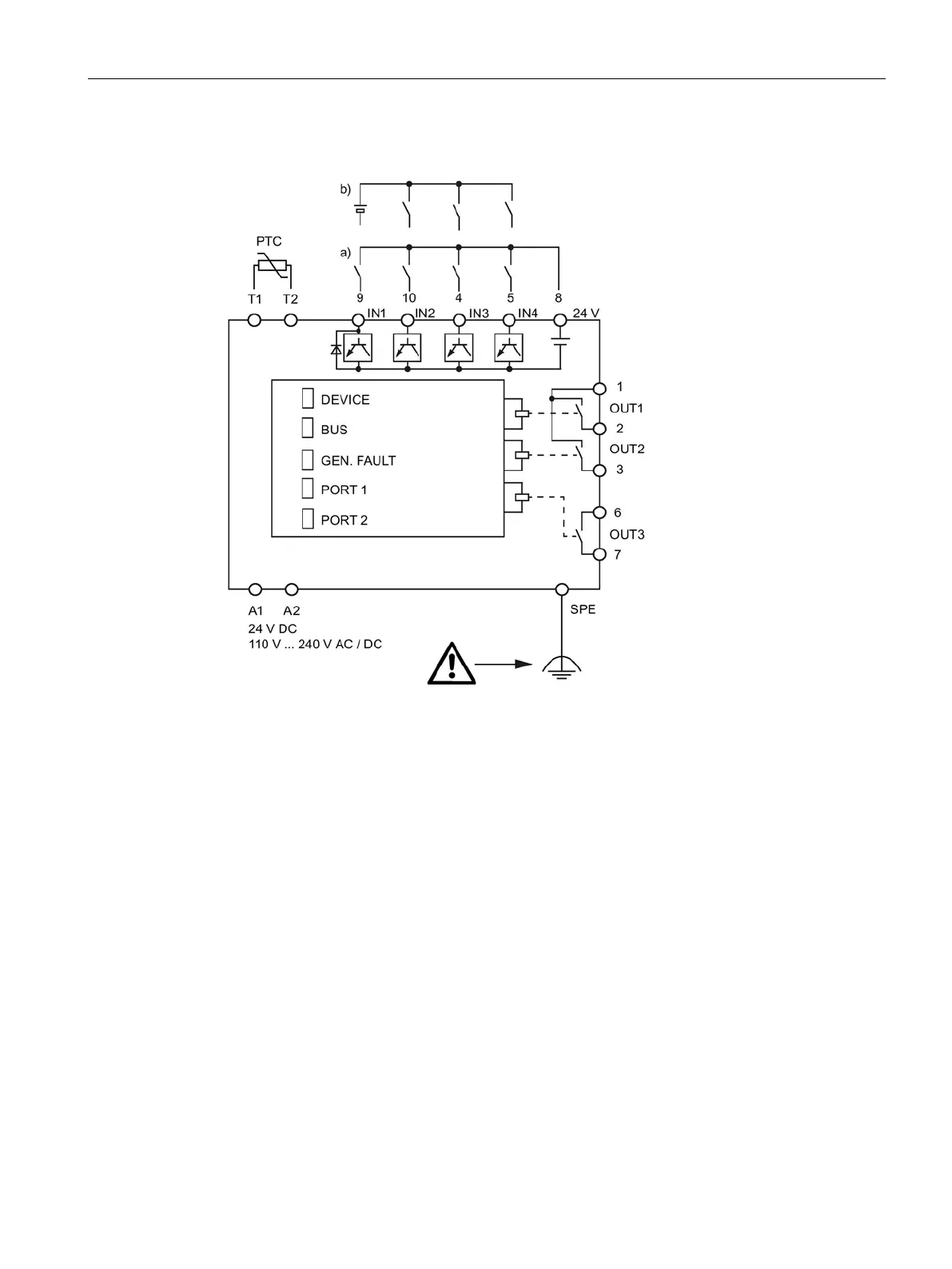

Connection examples for SIMOCODE pro V PN / pro V EIP basic units
Figure 12-18 Connection examples for SIMOCODE pro V PN / pro V EIP basic units
