12.2 Wiring, connecting
SIMOCODE pro
222 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Terminal assignment for digital module DM-F Local
The following table shows the pin assignment of the removable terminals:

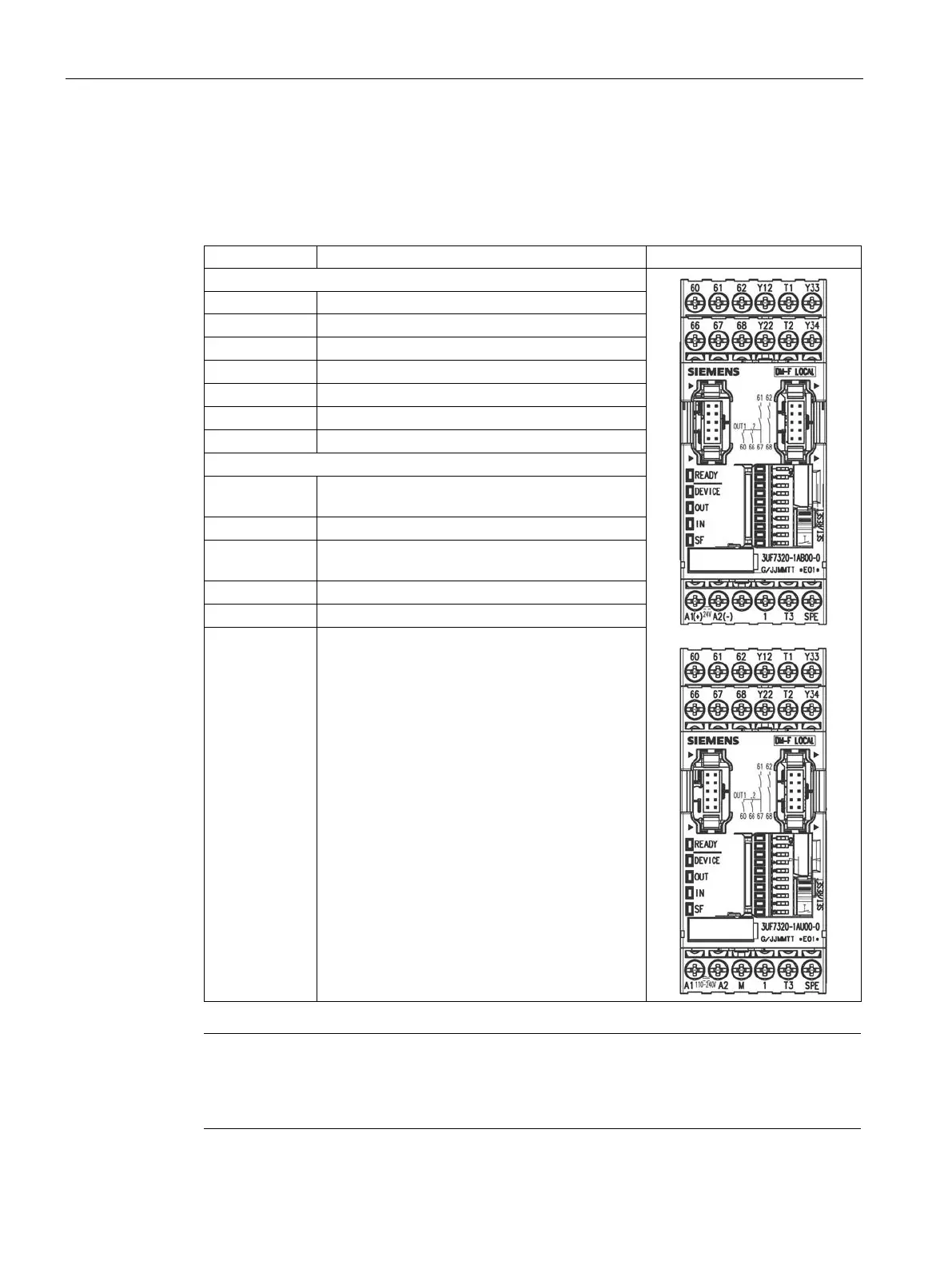

Table 12- 18 Terminal assignment of the removable terminals of the digital module DM-F Local,
24 V DC version and 110 to 240 V UC version.
Terminal
Assignment
Upper terminals
60, 66
Digital module, relay outputs 1 (60) and 2 (66)
61, 67
Relay enabling circuit 1, NO
62, 68
Relay enabling circuit 2, NO
Y12, Y22
Sensor input channel 1, channel 2
T1, T2
Supply for sensor inputs (24 V DC, pulsed)
Y33 Start button (start after rising and falling edge)
Y34
Feedback circuit
Lower terminals
A1 (+) Power supply connection 110 to 240 V AC/DC or
+24 V DC
A2 (-)
N or -24 V
M Ground (reference potential for sensor inputs,
3UF7320-1AU00-0 only)
1
Cascading input
T3
Supply for sensor inputs (24 V DC, static)
SPE
1)
System shielding
1)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possible to the functional ground of the contro
l cabinet,
e.g. to the grounded mounting plate of the control cabinet.
