Siemens SIMOCODE pro V MR

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
223

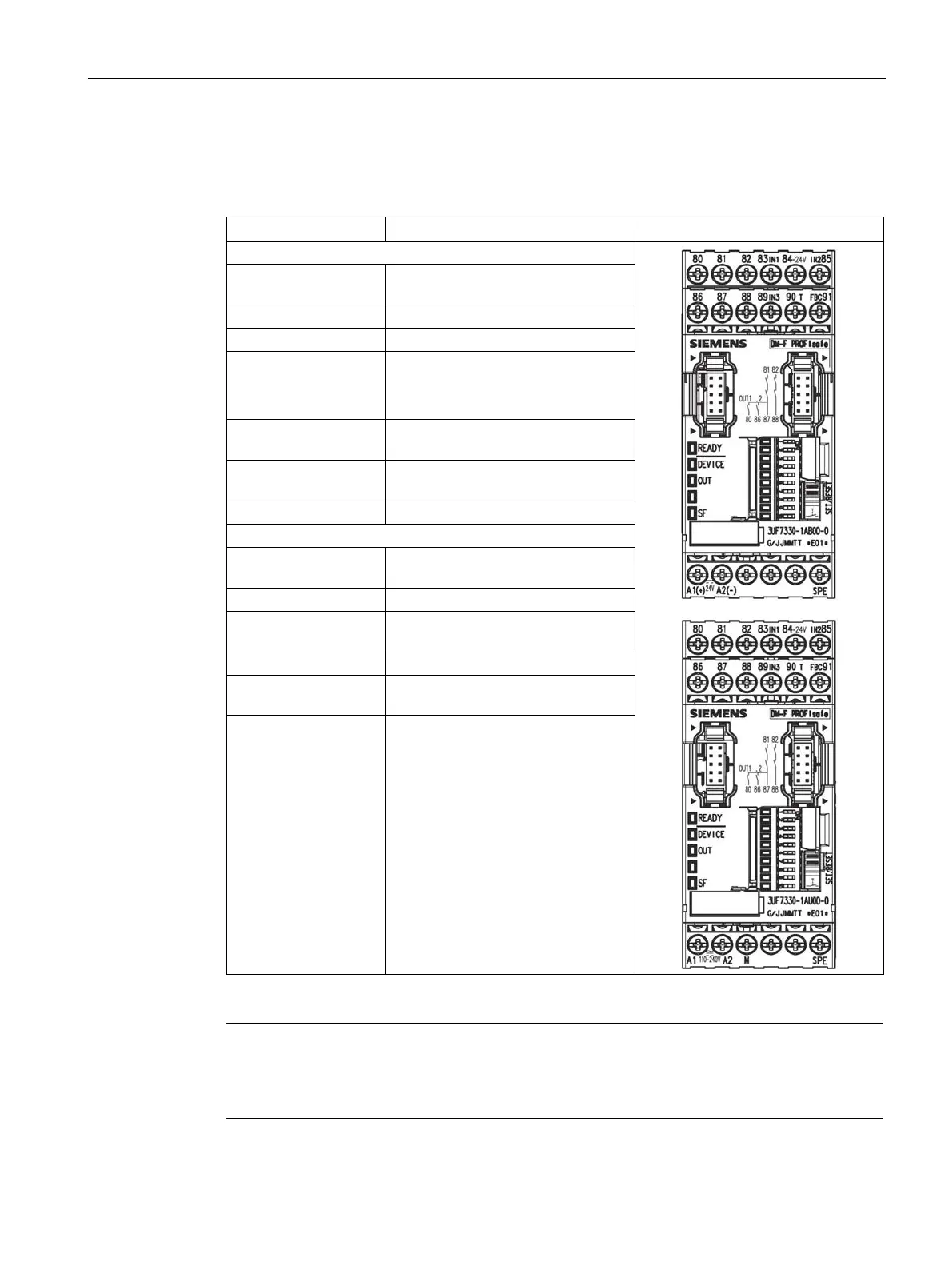

Terminal assignment for digital module DM-F PROFIsafe
Table 12- 19 Terminal assignment of the removable terminals of the digital module DM-F PROFIsafe,
24 V DC version and 110 to 240 V UC version.
Terminal
Assignment
Upper terminals
80, 86 Digital module, relay outputs 1 (80)
and 2 (86)
81, 87
Relay enabling circuit 1, NO
82, 88 Relay enabling circuit 2, NO
83 (IN1)
85 (IN2)
89 (IN3)
Digital module, inputs 1, 2, 3
84 Power supply, diigital module, inputs
1 to 3, 24 V DC
90 (T) Feedback circuit supply (FBC)
24 V DC
91 (FBC)
Feedback circuit
Lower terminals
A1 (+) Power supply connection 110 to
240 V AC/DC or +24 V DC
A2 (-)
N or -24 V
M Ground (reference potential inputs,
only 3UF7320-1AU00-0)
1
Cascading input
T3 Supply for sensor inputs
(24 V DC, static)
SPE
1)
System shielding
1)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possible to the functional ground of the control cabinet,
e.g. to the grounded mounting plate of the control cabinet.
