Configuration
5.3 Braking resistors (armature short-circuit braking)
1FW3 complete torque motors
104 Configuration Manual, 08/2020, A5E46027705B AA

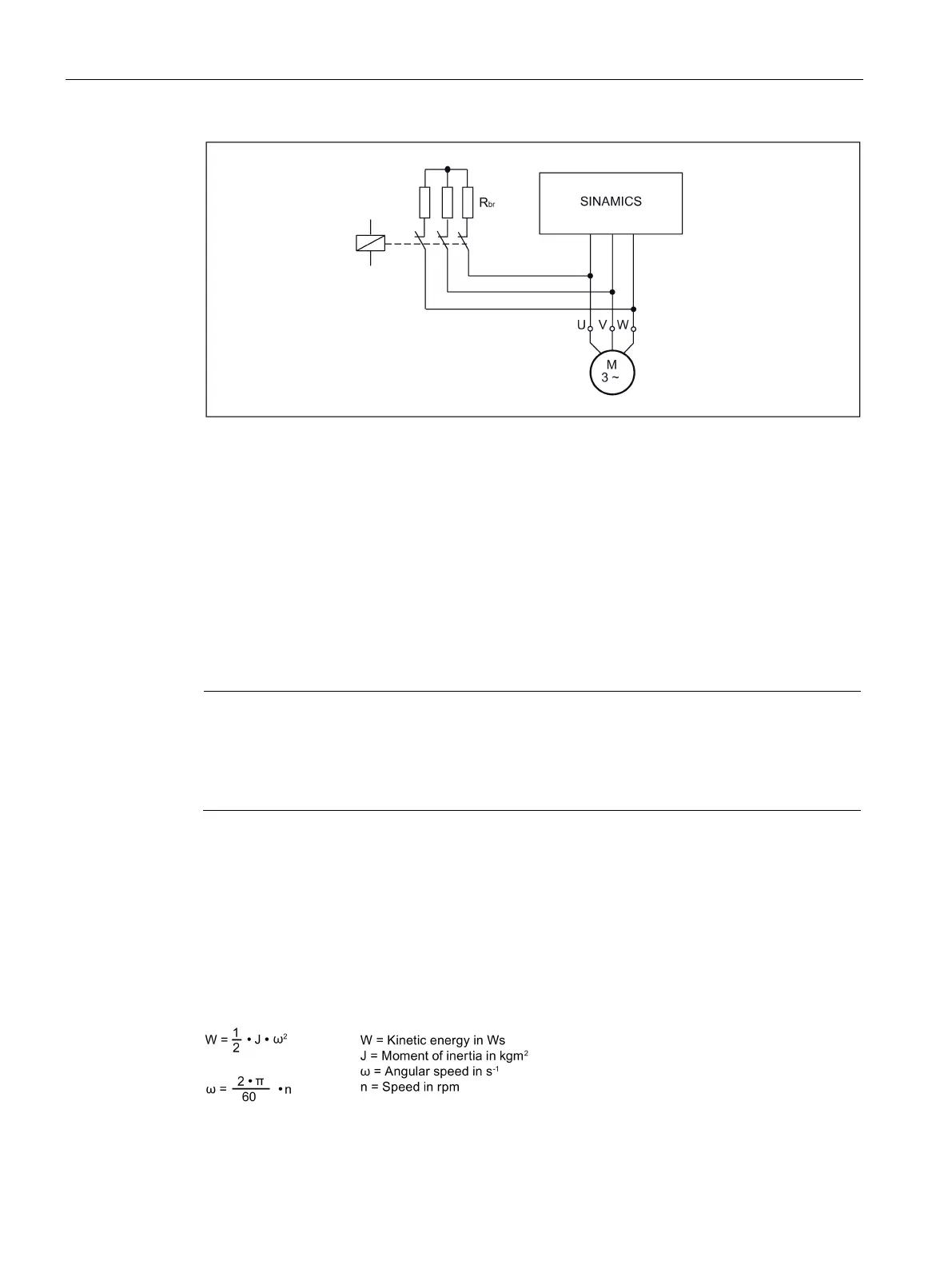

Figure 5-8 Circuit (schematic) with brake resistors
Ordering address
Gottlieb-Daimler-Str. 61, 71711 Murr
Note
Other manufacturers
It goes without saying that equivalent products from other manufacturers may be used. Our
recommendations should be considered as such. We cannot accept any liability for the
quality and properties/features of third
-party products.
Rating
The ratings of the resistors must match the particular I
2
t load capability. The resistors can be
dimensioned so that a surface temperature of 300° C can occur briefly (max. 500 ms). In
order to prevent the resistors from being destroyed, braking from the rated speed can occur
max. every 2 minutes. Other braking cycles must be specified when ordering the resistors.
The external moment of inertia and the intrinsic motor moment of inertia are decisive when
dimensioning these resistors.
The kinetic energy must be specified when ordering in order to determine the resistor rating.
Match the ratings of the braking resistors to the ability to withstand I
2
t.
