5.4 Mounting
1FW3 complete torque motors
110 Configuration Manual, 08/2020, A5E46027705B AA
Thermal damage to temperature-sensitive parts
The motors can have surface temperatures of over +100° C. Temperature-sensitive parts in
contact with the motor or attached to the motor can be damaged. Temperature-sensitive
parts include cables and electronic components, for example.
• Never attach temperature-sensitive parts to the motor.
• Ensure that no temperature-sensitive parts are in contact with the motor.
Data loss due to strong magnetic fields
If you are located close to the rotor, any magnetic or electronic data storage media as well
as electronic devices that you might be carrying could be damaged.
• Do not wear or carry any magnetic or electronic data storage media (e.g. credit cards,
USB sticks, floppy disks) and no electronic devices (e.g. watches) if you are close to a
5.4.2 Overview of the mounting options
Torque motors are generally used as direct drives, i.e. without any intermediate gearbox or
belt.
You can see the principle difference between mounting motors for conventional drives and
for direct drives in the following diagram.

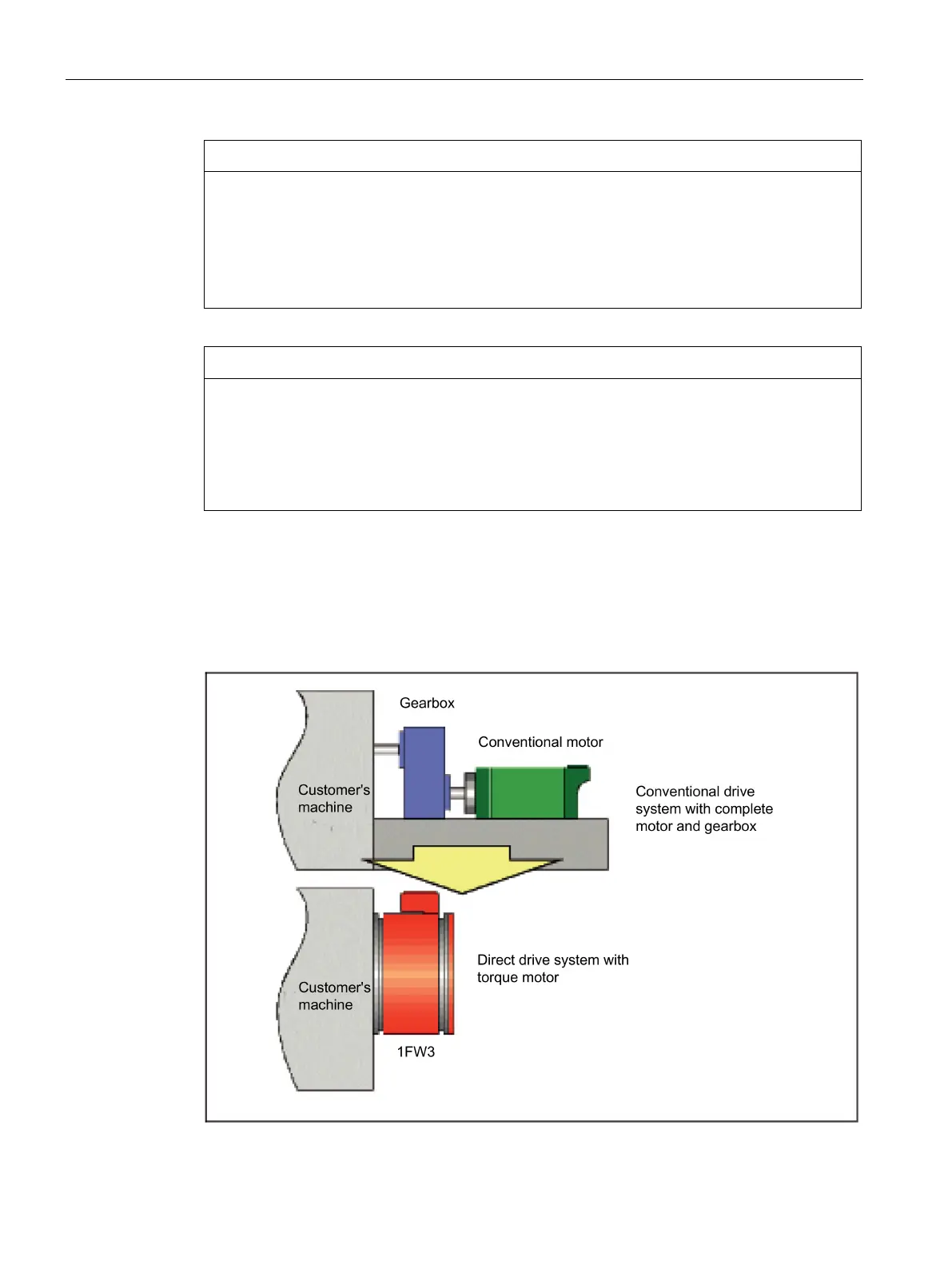

Figure 5-10 Comparison between conventional and direct drive systems
