Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
125
5.4.3.2 Shaft-side clamping element
Various mounting options using clamping elements are shown in this Chapter.
Siemens AG in cooperation with RINGSPANN GmbH has developed various clamping
system solutions to ensure secure, friction-locked connection of torque motors to cylindrical
machine shafts - with the following objectives.
● Safely and reliably transmitting the torque
● Precisely centering the torque motor on the machine shaft
● Avoid inadmissible deformation to the torque motor components
● No distortion caused by different temperature changes in the torque motor and in the
machine shaft
● Simple mounting
● Simple removal, even after longer periods of operation
Mounting using suitable clamping elements is explained in the following.

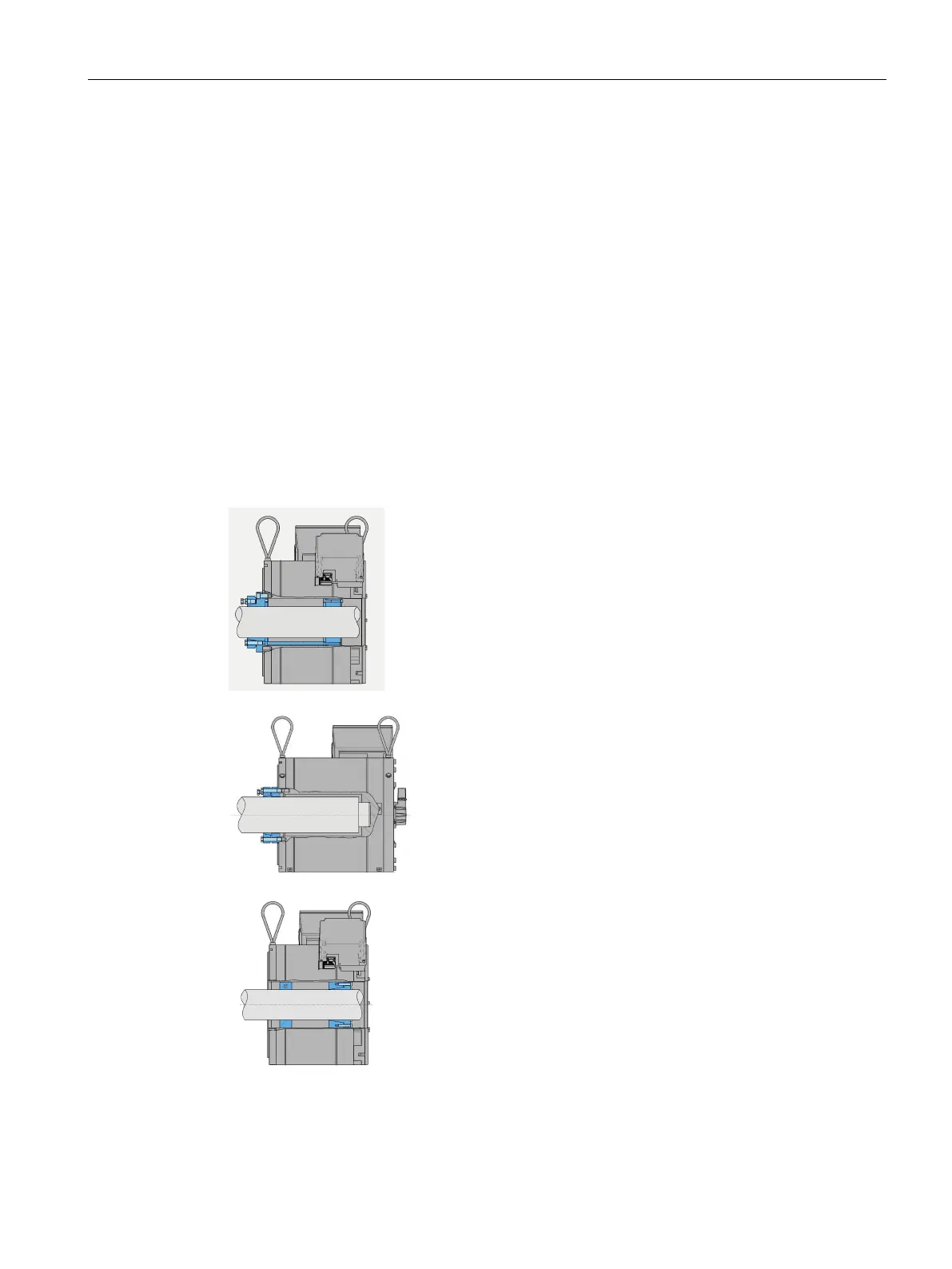

Hollow shaft with option, clamping element and centering part
1FW315
☐-☐☐☐☐☐-☐☐A☐ + Q30
☐-☐☐☐☐☐-☐☐A☐ + Q30
See Chapter "Hollow shaft with option +Q30"
-on shaft with clamping element
☐☐☐-☐☐☐☐☐-☐☐S☐ + Q30
-on shaft with option +Q30"
Hollow shaft with inner clamping element from the Ringspann
company
☐-☐☐☐☐☐-☐☐C☐
0☐-☐☐☐☐☐-☐☐C☐
For details, see Chapter "Hollow shaft, inner clamping ele-
ment"
