Siemens SIMOTICS T-1FW3 User Manual

Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
61
3.6.3 Solid shaft

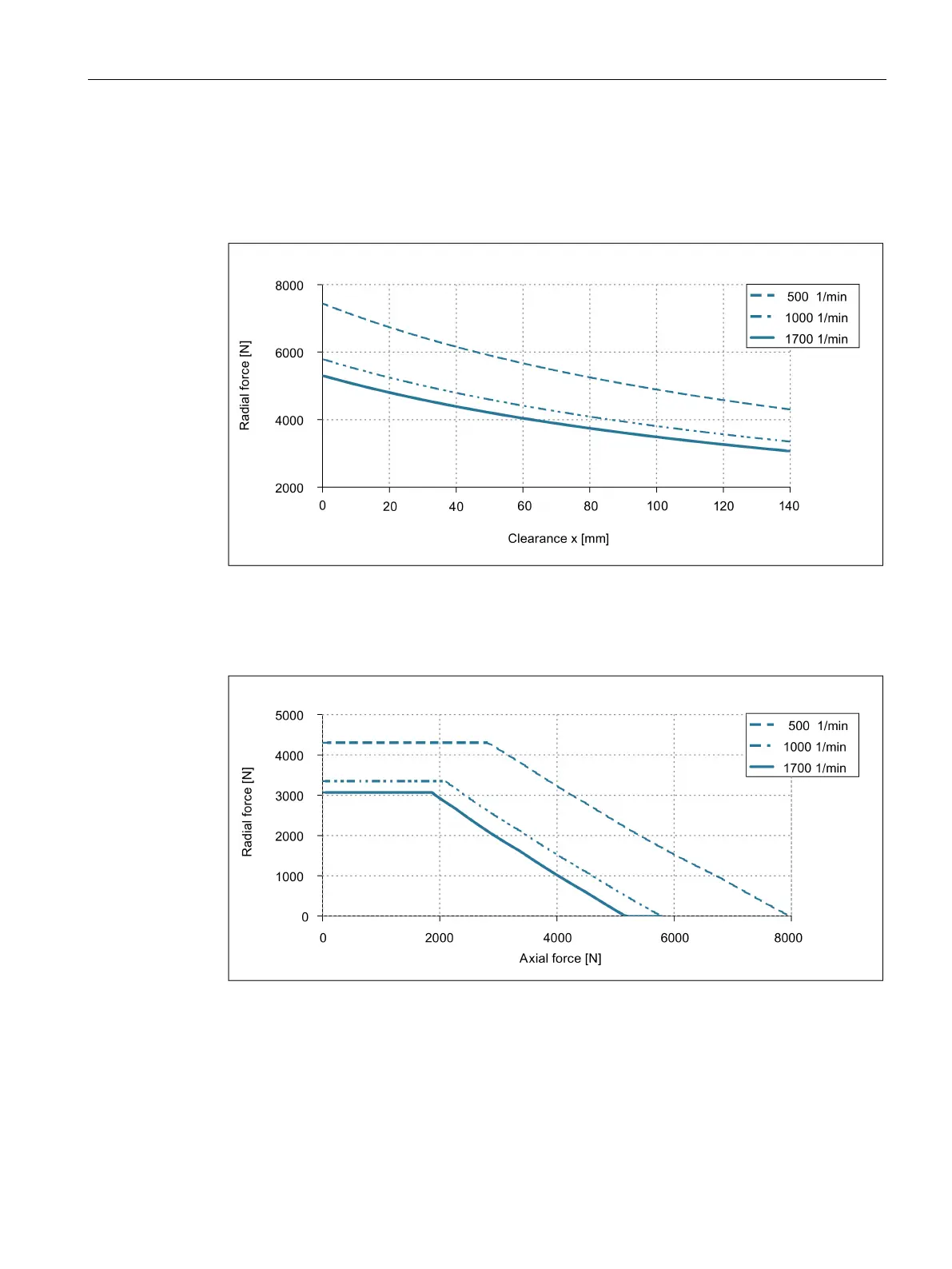

Radial force diagram for 1FW315❑ solid shaft
Figure 3-20 Radial force diagram for 1FW315❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW315❑ solid shaft
Figure 3-21 Permissible axial force as a function of radial force for 1FW315❑ (20000 h)
