Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
62 Configuration Manual, 08/2020, A5E46027705B AA

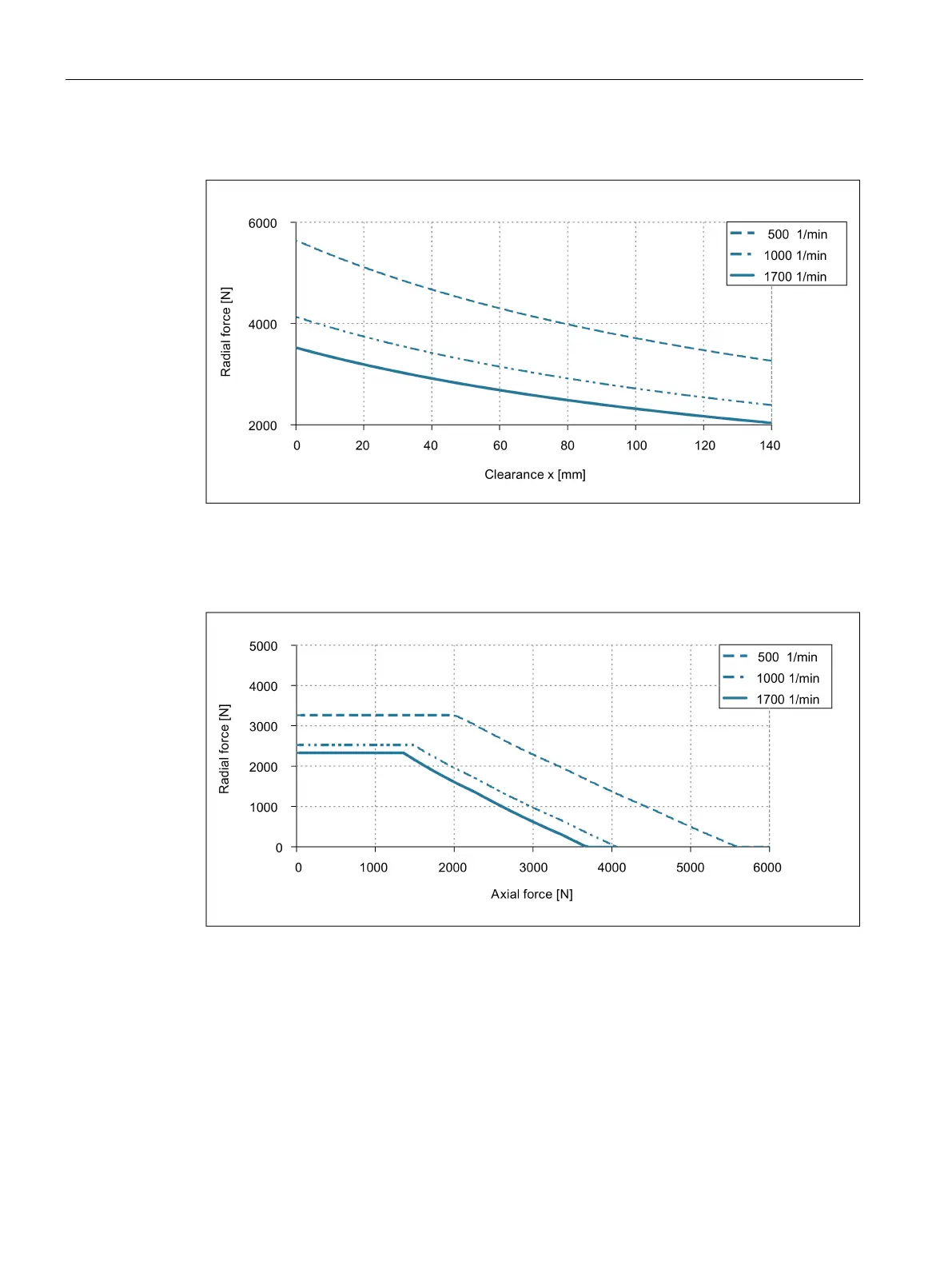

Radial force diagram for 1FW315❑ solid shaft
Figure 3-22 Radial force diagram for 1FW315❑, with nominal bearing change interval of 60000 h
Axial force diagram for 1FW315❑ solid shaft
Figure 3-23 Permissible axial force as a function of radial force for 1FW315❑ (60000 h)
