Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
63

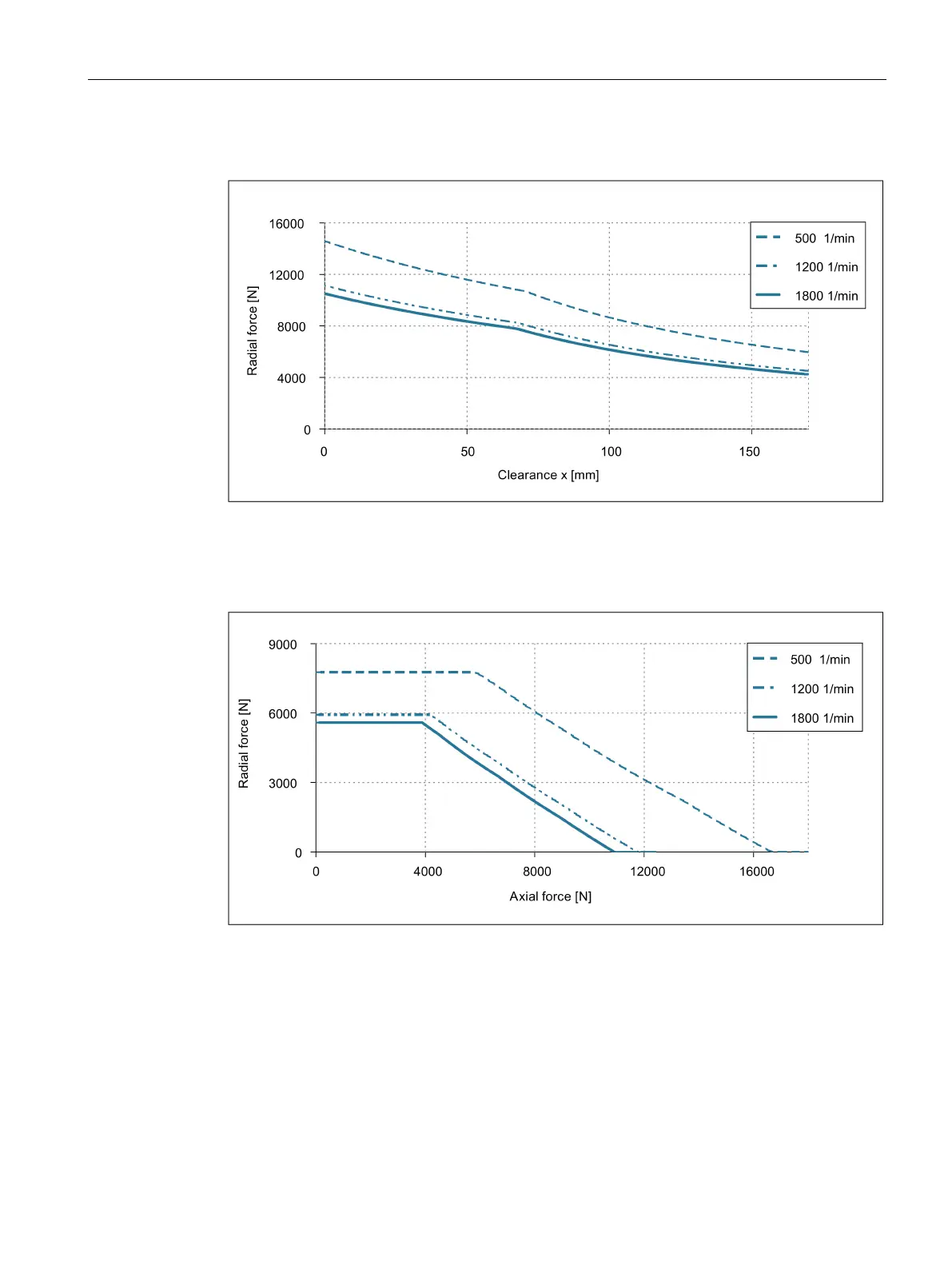

Radial force diagram for 1FW320 solid shaft
Figure 3-24 Radial force diagram for 1FW320, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW320 solid shaft
Figure 3-25 Permissible axial force as a function of radial force for 1FW320 (20000 h)
