Siemens SIMOTICS T-1FW3 User Manual

Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
64 Configuration Manual, 08/2020, A5E46027705B AA

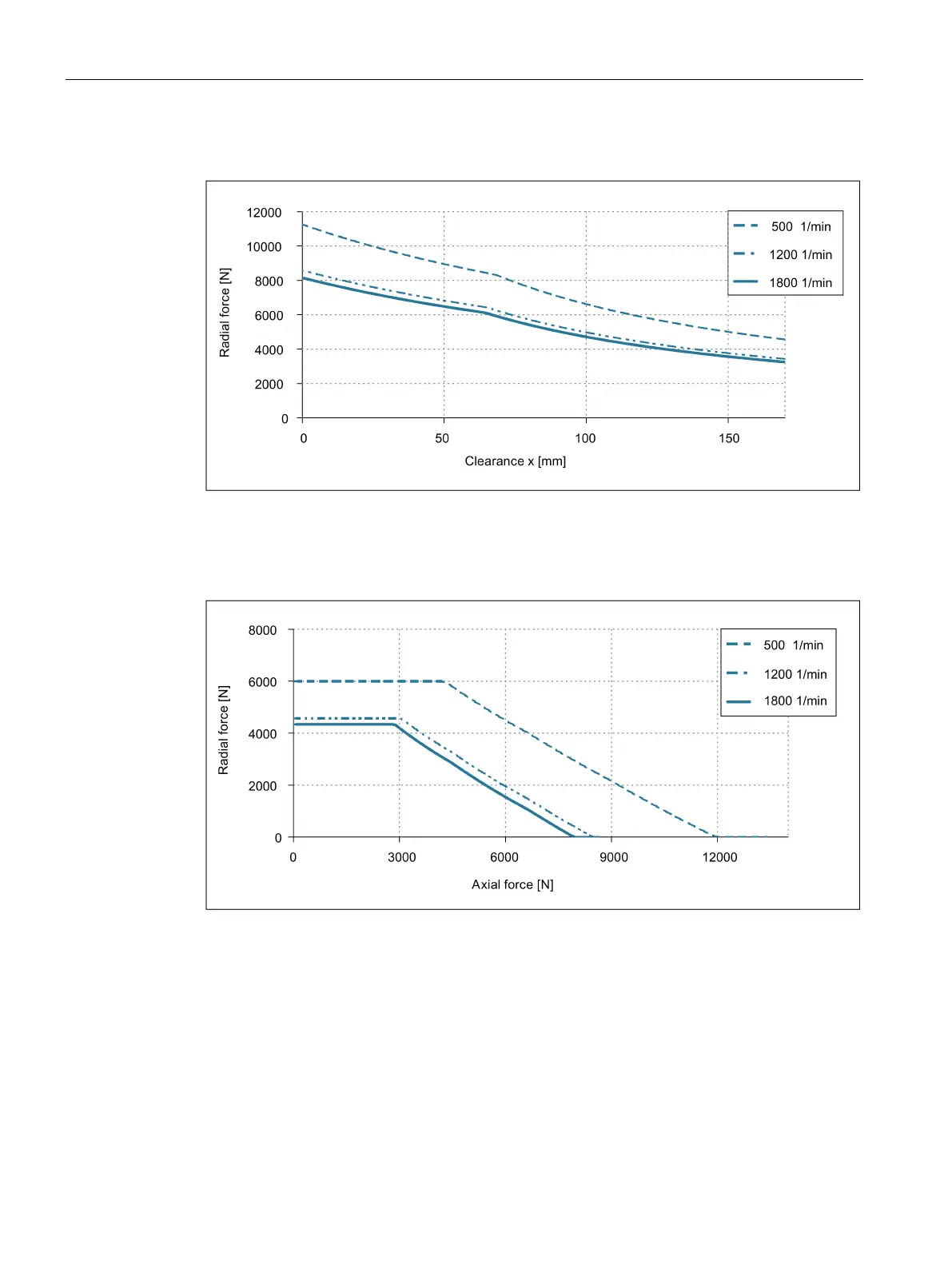

Radial force diagram for 1FW320❑ solid shaft
Figure 3-26 Radial force diagram for 1FW320❑, with nominal bearing change interval of 60000 h
Axial force diagram for 1FW320❑ solid shaft
Figure 3-27 Permissible axial force as a function of radial force for 1FW320❑ (60000 h)
