Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
65

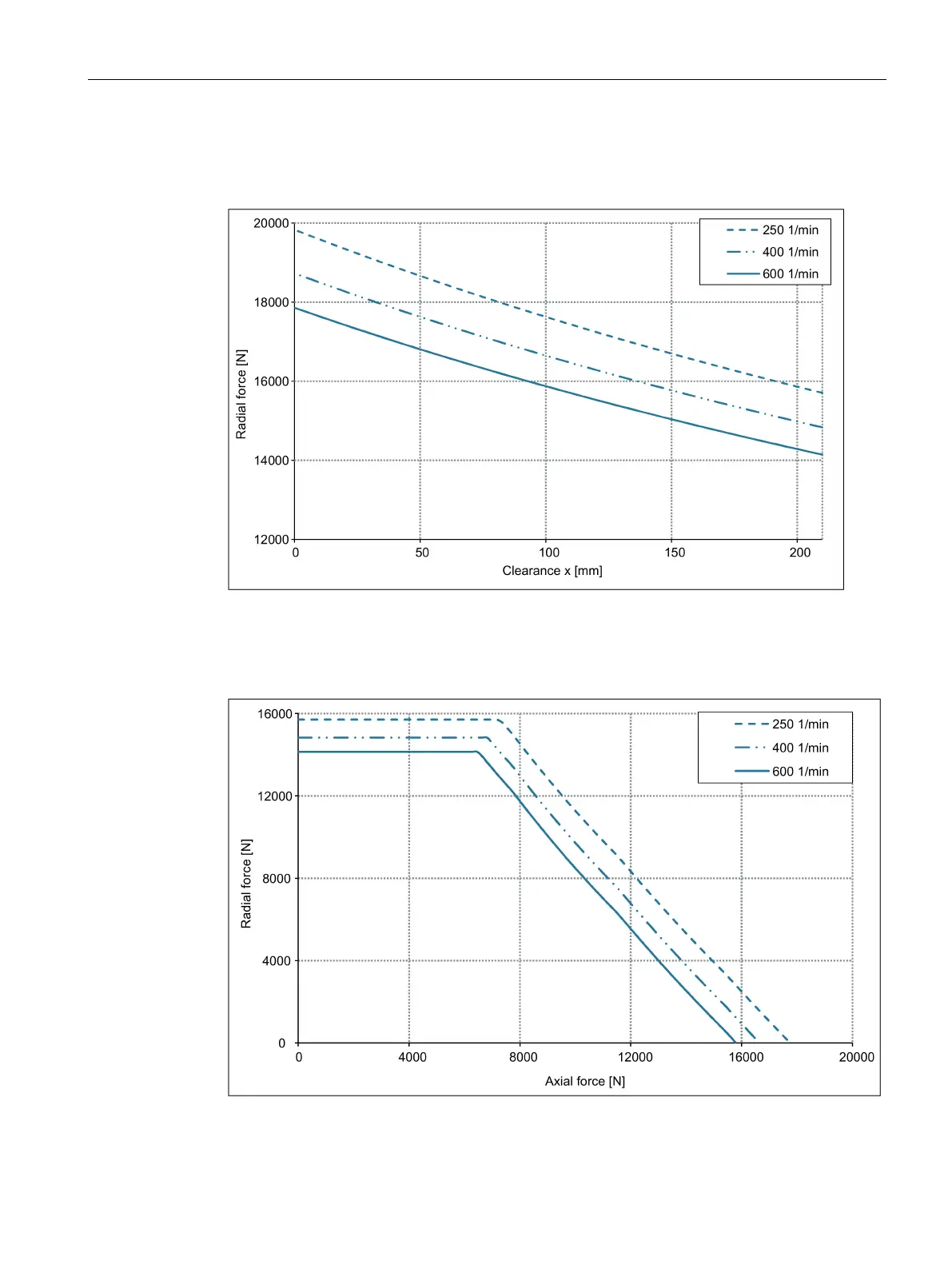

Radial force diagram for 1FW328❑ solid shaft
Figure 3-28 Radial force diagram for 1FW328❑, with nominal bearing change interval of 40000 h
Axial force diagram for 1FW328❑ solid shaft
Figure 3-29 Permissible axial force as a function of radial force for 1FW328❑ (40000 h)
