Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
141
5.4.6 Plug-on shaft and DE without bearings
Mounting instructions

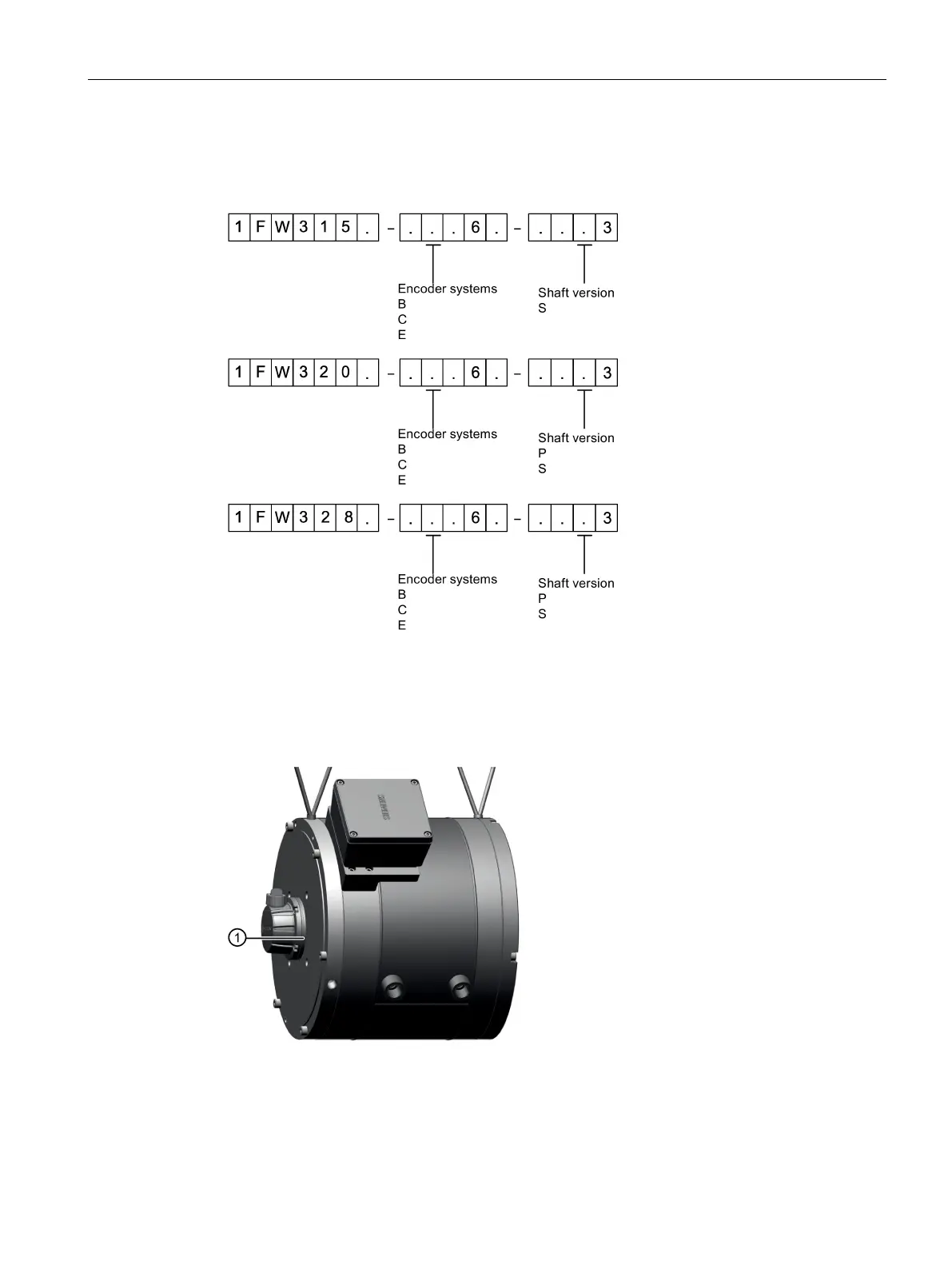

The motor is shipped with a transport ring at the NDE. The transport ring is located between
the encoder and the bearing shield. This prevents the motor shaft from coming into contact
with the encoder. See the diagram below.
1
Transport ring
Figure 5-34 Transport ring for motors without bearing
