1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
75
Motor components and options
4
4.1 Motor components
4.1.1 Thermal motor protection
NOTICE
Thermal motor damage
Windings and bearings can be destroyed if the motor overheats. Further, if a motor
overheats, this can demagnetize the permanent magnets.
Only operate the motors in conjunction with an effective temperature control.
Thermal motor protection with temperature sensors
The stator core has two temperature sensors to monitor the winding; one of these is a
reserve.
If you want to use the reserve temperature sensor, you must change the plug-in connection.
The plug-in connection is at motors with encoder with belt drive in the encoder box. At all
other motor versions the plug-in connection is in the terminal box. See the following pictures
to this.
1
Connected temperature sensor with plug-in connector
2
Reserve temperature sensor with plug-in connector

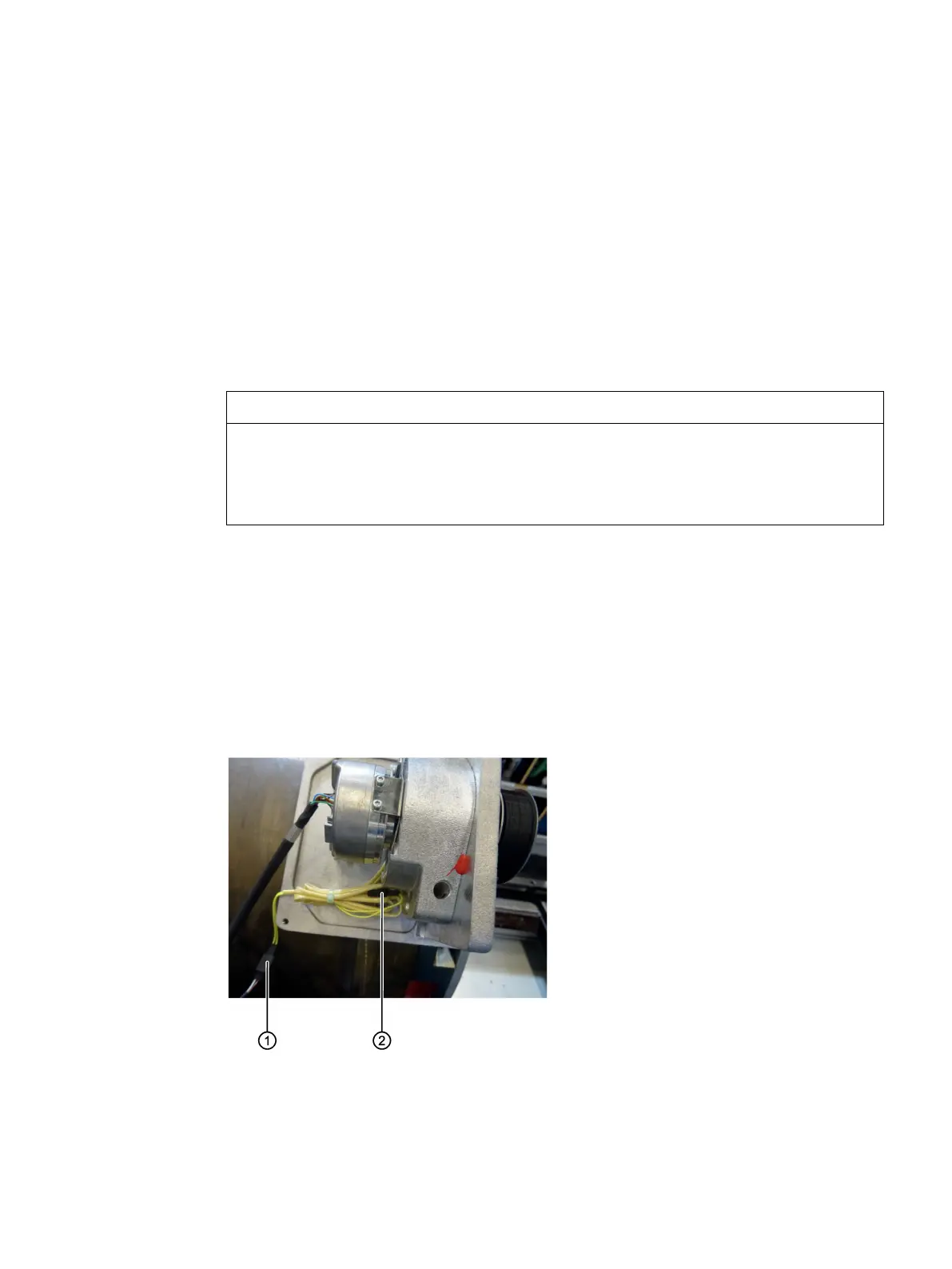

Figure 4-1 Example: Connection in the encoder box
