Siemens SIMOTICS T-1FW3 User Manual

Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
54 Configuration Manual, 08/2020, A5E46027705B AA
3.6.1 Hollow shaft

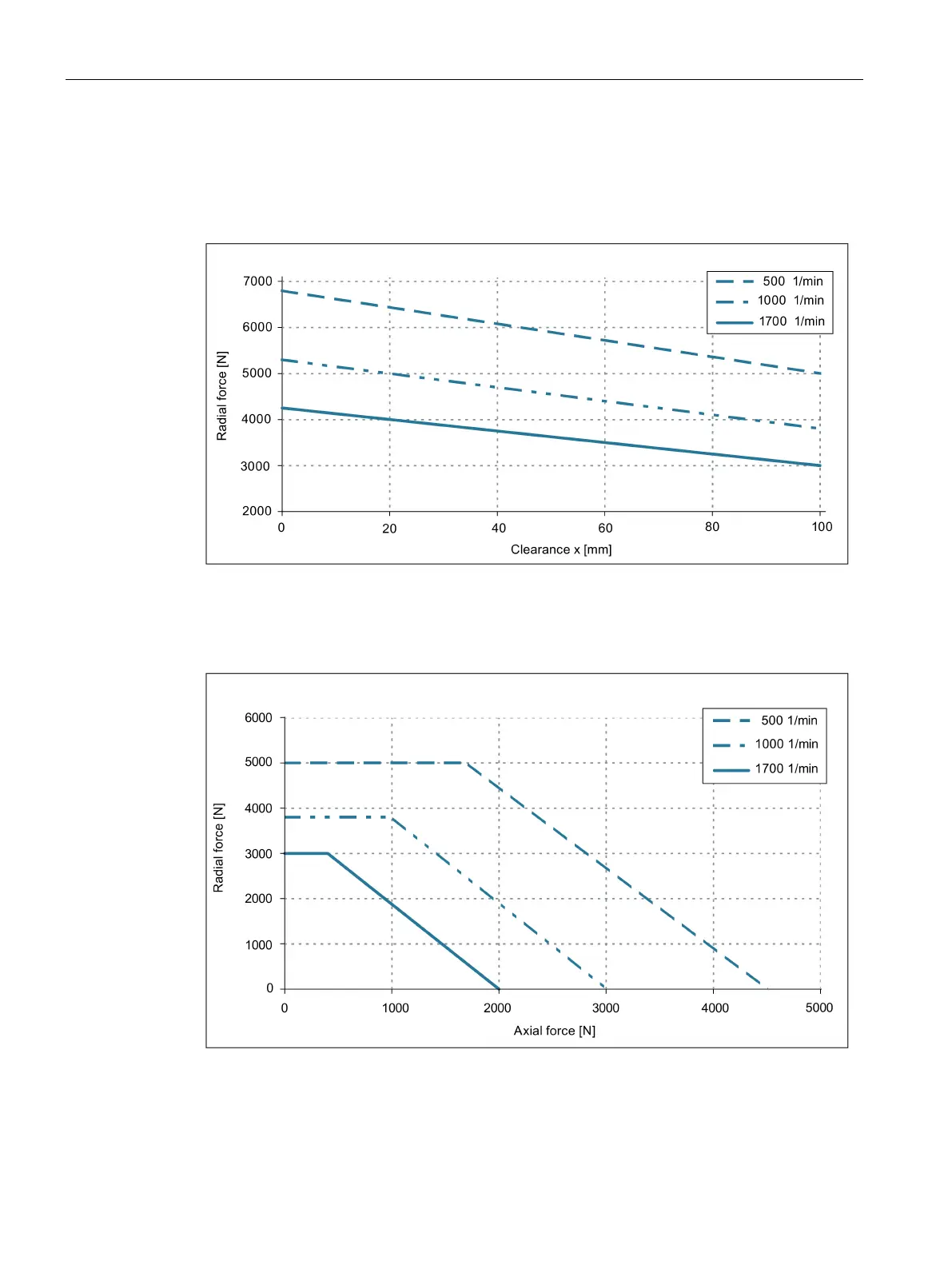

Radial force diagram for 1FW315❑ hollow shaft
Figure 3-6 Radial force diagram for 1FW315❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW315❑ hollow shaft
Figure 3-7 Permissible axial force as a function of radial force for 1FW315❑
