Siemens SIMOTICS T-1FW3 User Manual

Motor components and options
4.1 Motor components
1FW3 complete torque motors
86 Configuration Manual, 08/2020, A5E46027705B AA
4.1.2.6 Multi-pole resolver
Description
The number of sine and cosine periods per revolution corresponds to the number of pole
pairs of the resolver. Resolvers can detect relative motion. The absolute position within one
resolver output signal period can be determined.
Function and technical data
● Angular measuring system for the commutation
● Speed actual value sensing
● Indirect incremental measuring system for the position control loop
Table 4- 10 Technical specifications, resolvers
Properties
8-pole
(for SH 200)
4-pole
(for SH 150 and SH 280)
Excitation voltage
+ 5 V
rms
to + 13 V
rms
Excitation frequency
4 kHz to 10 kHz
Current consumption
< 80 mA
rms
Angular error, peak-to-peak (mech.)
< 4'
< 10'
Electrical transformation ratio
0.5
1
U
sinetrack
2
U
cosinetrack

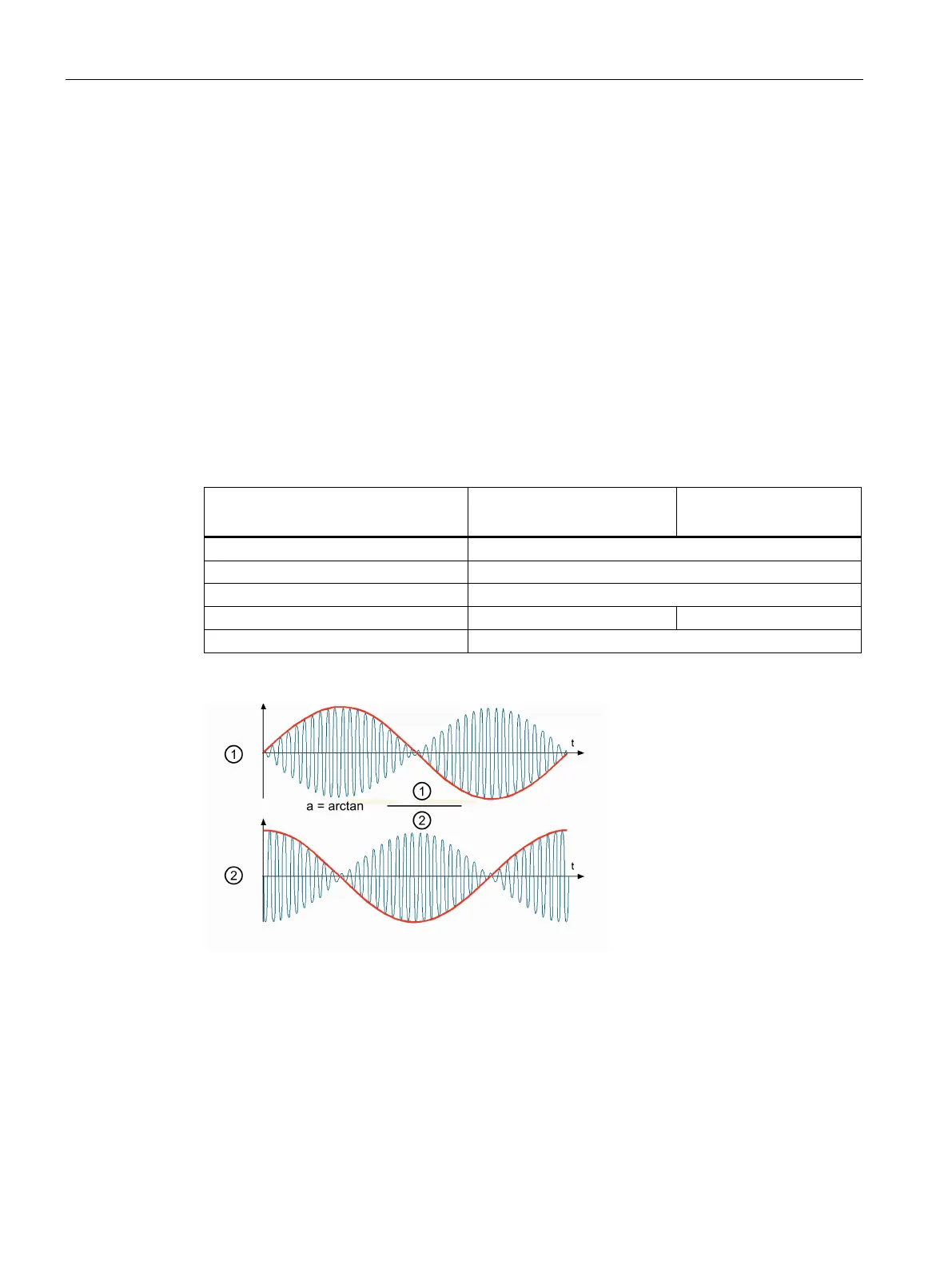

Figure 4-5 Output signals, resolver
