Siemens SIMOTICS T-1FW3 User Manual

Motor components and options
4.1 Motor components
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
85

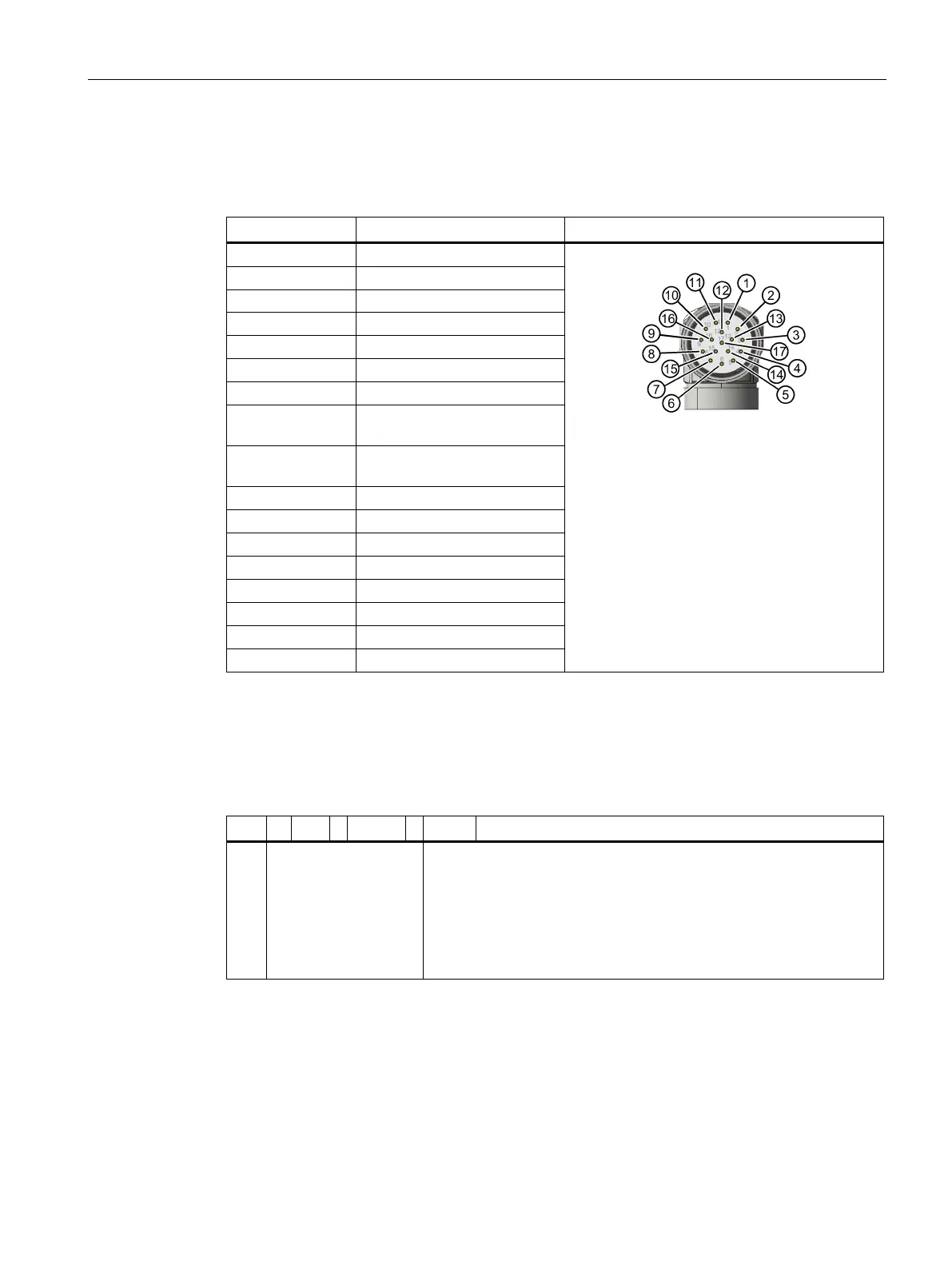

Connection pin assignment for 17-pin flange socket with pin contacts
Table 4- 8 Connection pin assignment, 17-pin flange socket
PIN No.
Signal
Diagram
1
A
2
A*
3
Data
4 Not connected
5
Clock
6
Not connected
7
M encoder
8 +1R1 (KTY 84) or 1R1
(Pt1000)
9 –1R2 (KTY 84) or 1R2
(Pt1000)
10
P encoder
11
B
12
B*
13
Data*
14
Clock*
15 *
)
M sense
16 *
)
P sense
17
Not connected
*
)
Cable break and voltage control
Cables
Table 4- 9 Pre-assembled cable
6FX
③
002
-
2EQ10
-
☐☐☐
0
③
③
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
☐☐☐
Length
Max. cable length 100 m
Mating connector: 6FX2003-0SU17 (socket)
For other technical data and length code, refer to Catalog D21.4, Chapter "MOTION-
CONNECT connection system".
