5.5 Data on efficiency
1FW3 complete torque motors
154 Configuration Manual, 08/2020, A5E46027705B AA
5.5 Data on efficiency
If necessary, you can calculate the efficiency yourself with the SIZER configuration tool and
then read off efficiency data at an operating point. You will find the link to the SIZER
configuration tool in chapter "SIZER configuration tool (Page 91)".
If, for example, you require detailed efficiency characteristics or values at specific operating
points you can contact Technical Support. You can find the link to Technical Support in
chapter "Introduction (Page 3)".

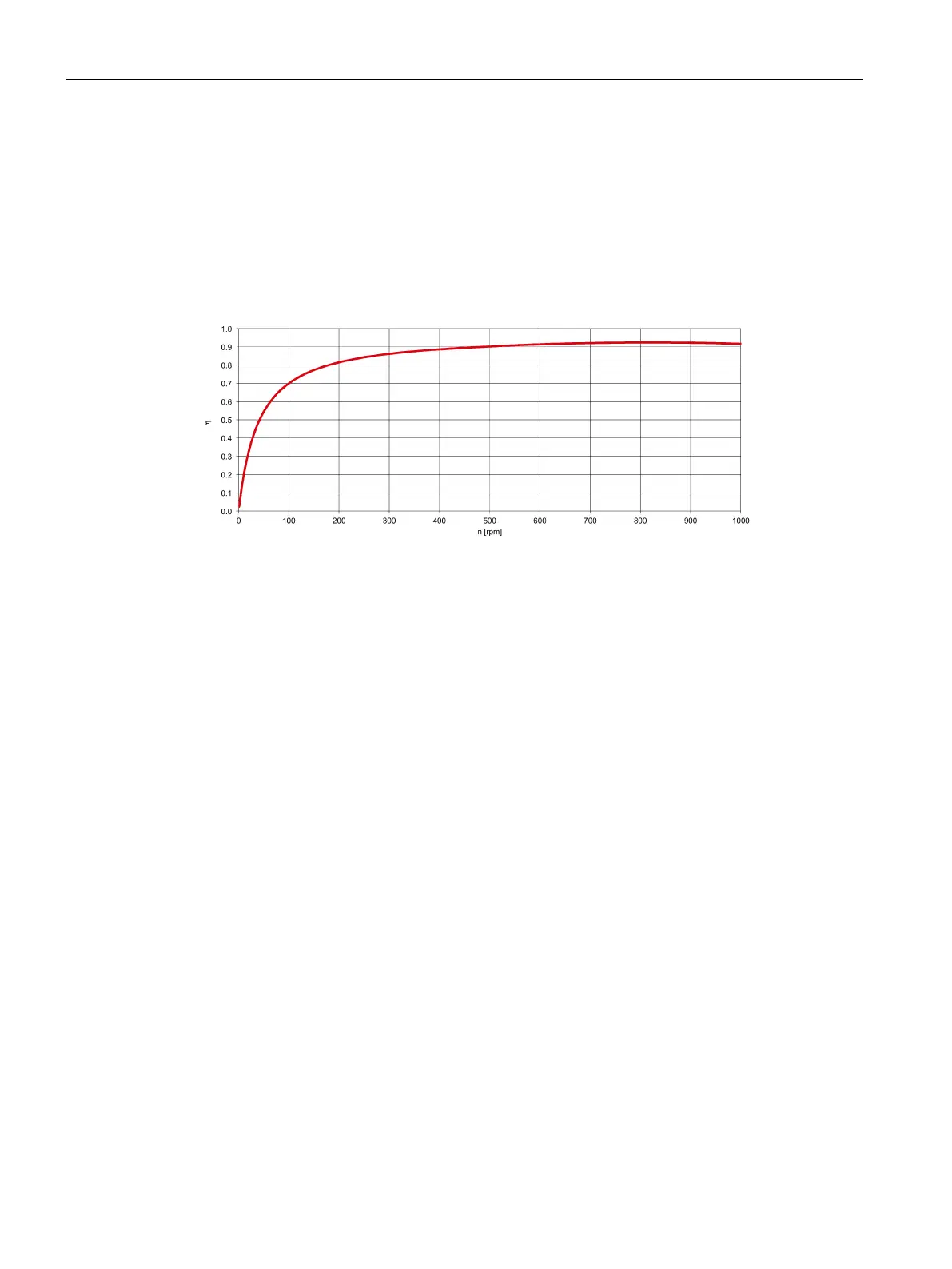

Figure 5-39 Example diagram: Efficiency as a function of speed
You can refer to catalog "D21.4 SINAMICS S120 and SIMOTICS" for the optimum efficiency
in continuous operation.
