Motor components and options
4.1 Motor components
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
89
4.1.2.8 Coaxial encoder mounting
Coaxial encoder mounting is available for high dynamic requirements and the highest
precision. The encoder module can be easily replaced without requiring readjustment.
Further information can be found in Chapter "Removing/mounting the encoder (Page 143)."

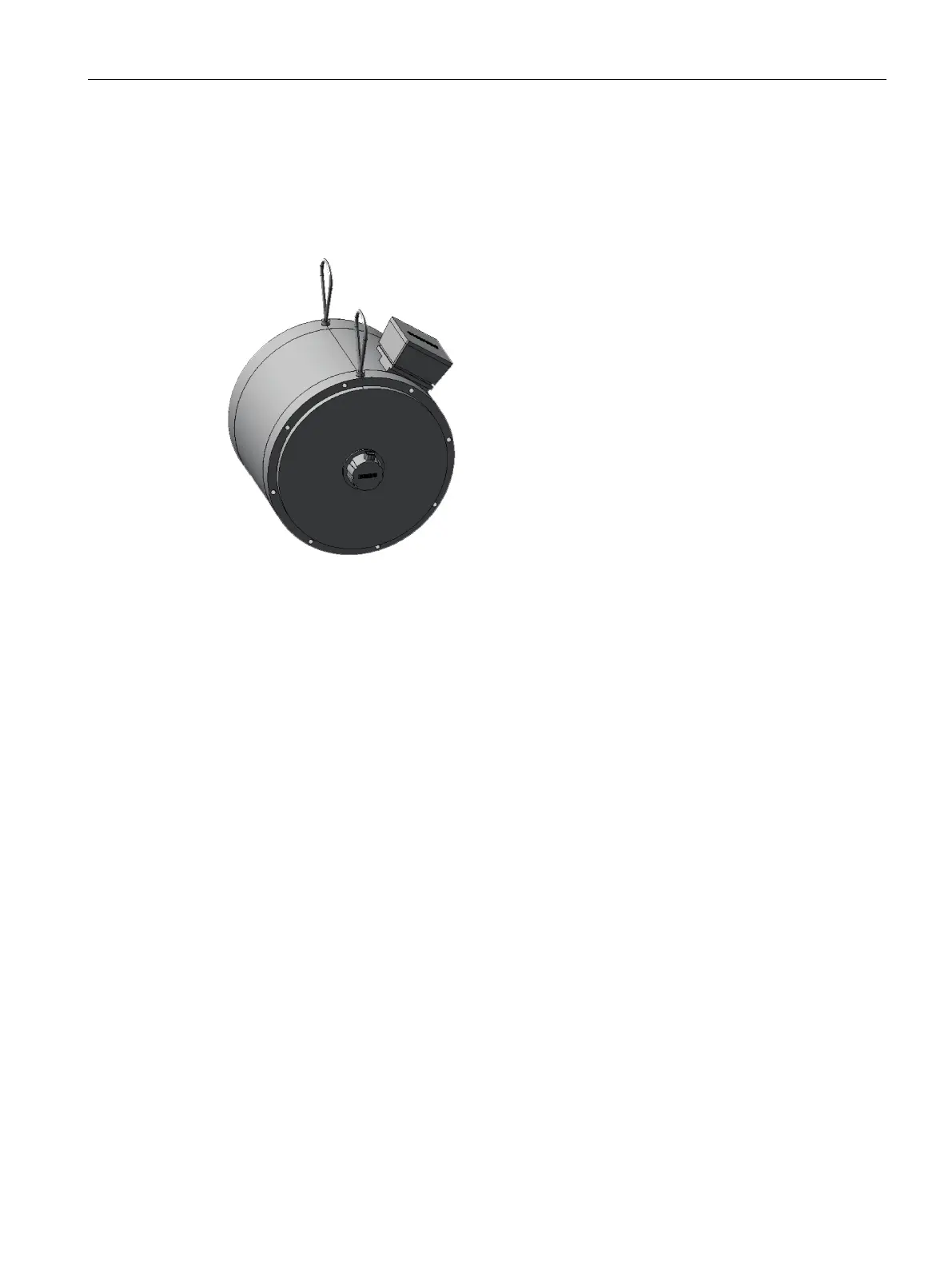

Figure 4-6 1FW3 with coaxially mounted encoder
4.1.2.9 Motor version without encoder
To connect the temperature sensors, use the separate terminal in the terminal box. The
terminal box has a cable entry for this purpose.
You can find further information about connecting the temperature sensors in Chapter
"Connecting temperature sensors (Page 308)"
