Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
149
5.4.11 Heavy Duty (Z option L03)
Heavy Duty is the version for increased shock loads.

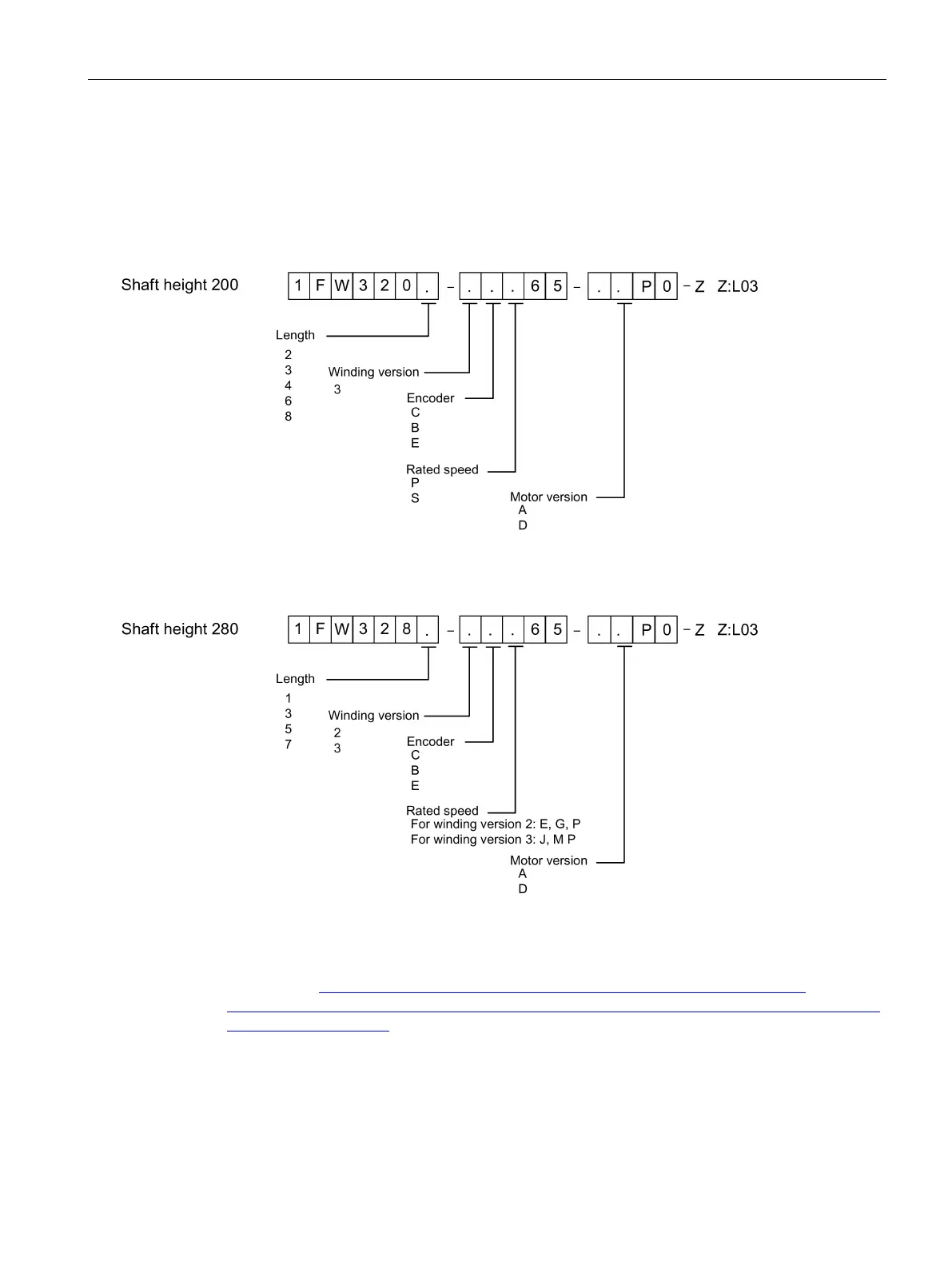

Valid for the following complete torque motors
Type of construction: IM B5
You can obtain more information about our Heavy Duty motors at the Internet: "SIMOTICS T
Heavy Duty (http://w3.siemens.com/mcms/mc-solutions/en/motors/motion-control-
motors/simotics-t-torque-motor/torque-motors-1fw3/torque-motors-heavy-duty/Pages/torque-
motor-heavy-duty.aspx)".
Dimension drawings
You can find the dimension drawings for the motors in Chapter "Dimension drawings
(Page 315)".
