Siemens SIMOTICS T-1FW3 User Manual

Motor components and options
4.1 Motor components
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
87

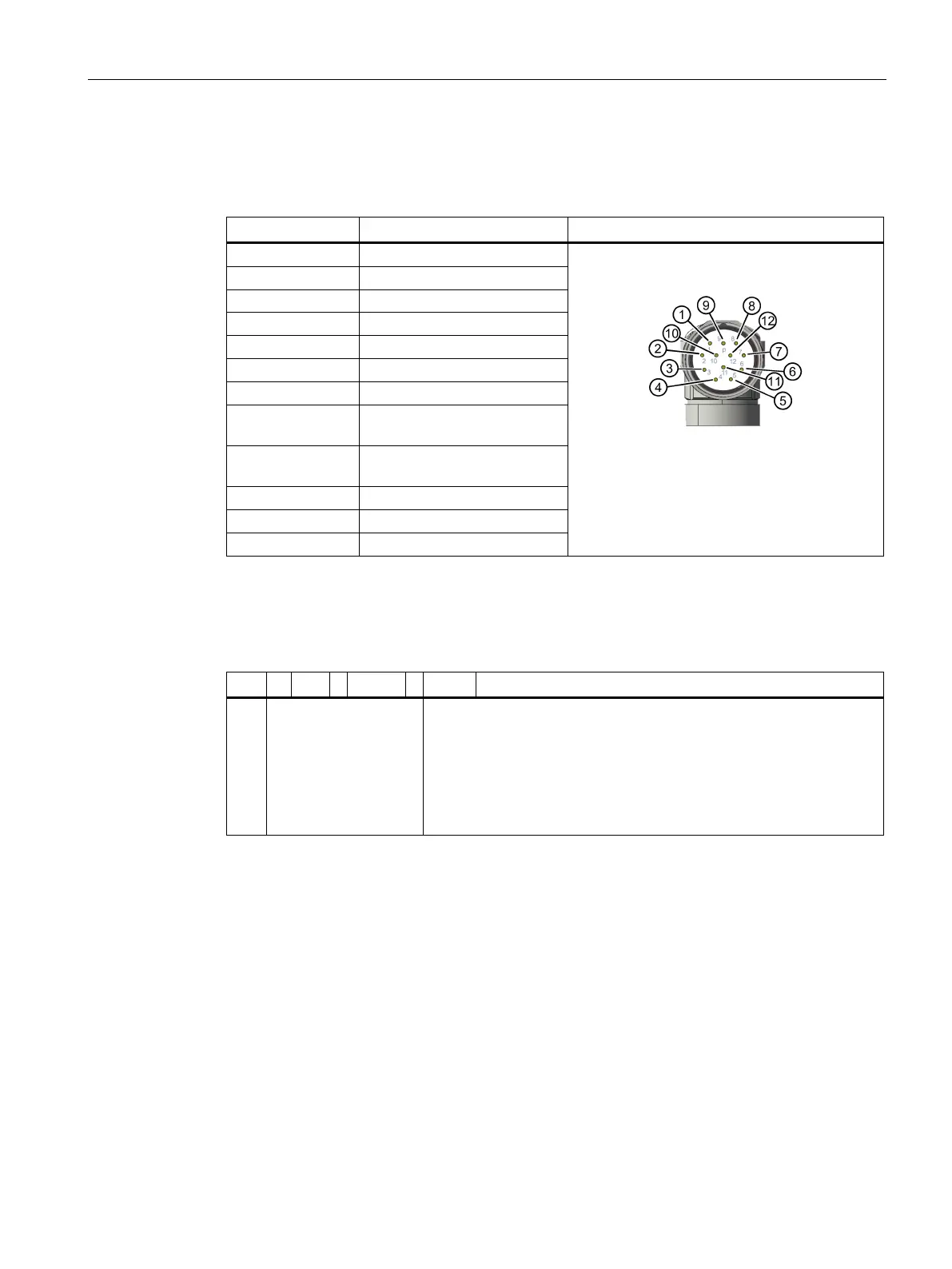

Connection pin assignment for 12-pin flange socket with pin contacts
Table 4- 11 Connection pin assignment, 12-pin flange socket
PIN No.
Signal
Fig.
1
S2
2
S4
3
Not connected
4 Not connected
5
Not connected
6
Not connected
7
R2
8 +1R1 (KTY 84) or 1R1
(Pt1000)
9 –1R2 (KTY 84) or 1R2
(Pt1000)
10
R1
11
S1
12
S3
Cables
Table 4- 12 Pre-assembled cable
6FX
③
002
-
2CF02
-
☐☐☐
0
③
③
5 MOTION-
CONNECTⓇ500
8 MOTION-
CONNECTⓇ800
☐☐☐
Length
Max. cable length 130 m
Mating connector: 6FX2003-0SU12 (socket)
For other technical data and length code, refer to Catalog D21.4, Chapter "MOTION-
CONNECT connection system"
