Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
55

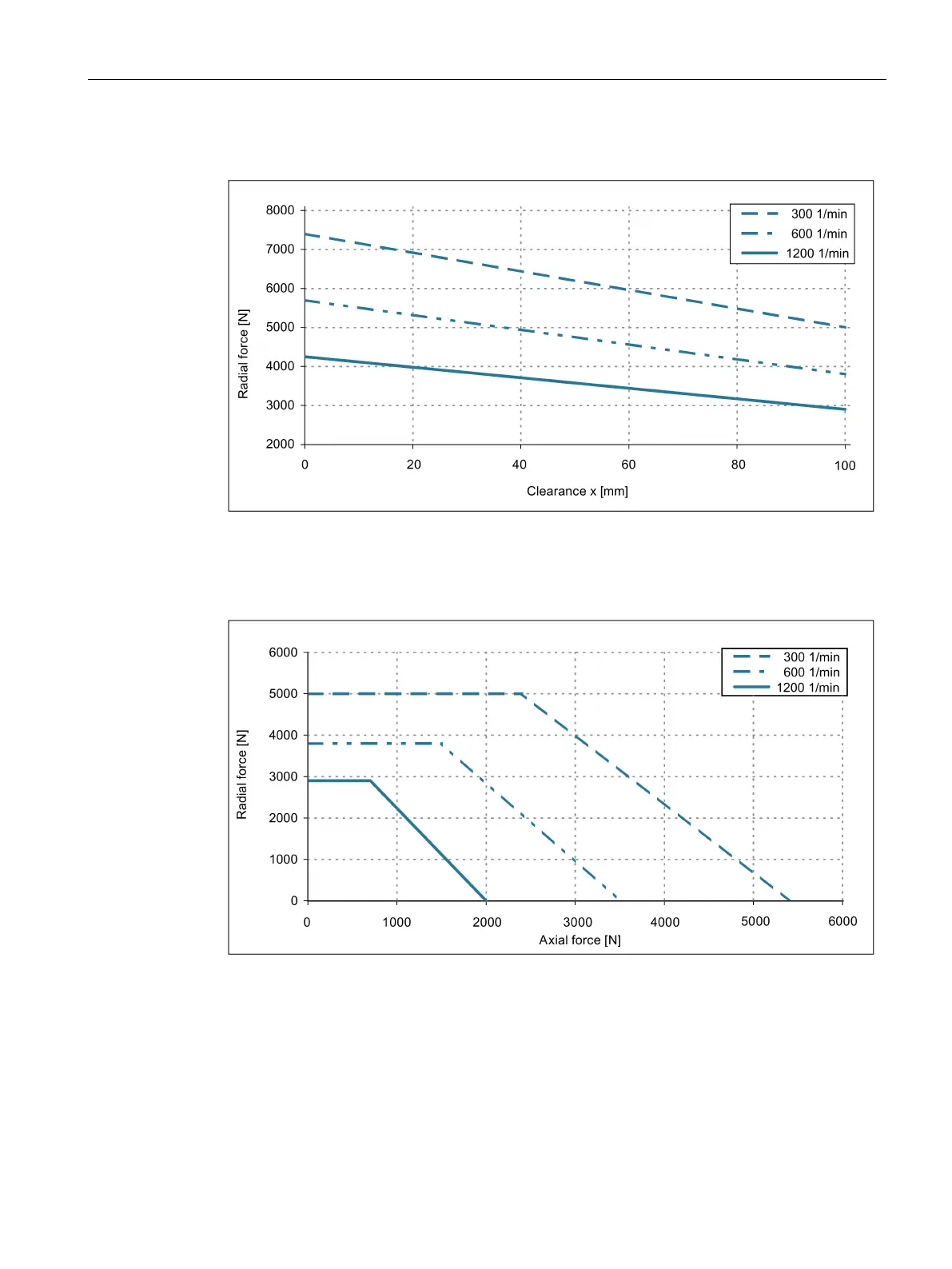

Radial force diagram for 1FW320❑ hollow shaft
Figure 3-8 Radial force diagram for 1FW320❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW320❑ hollow shaft
Figure 3-9 Permissible axial force as a function of radial force for 1FW320❑
