Siemens SIMOTICS T-1FW3 User Manual

Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
56 Configuration Manual, 08/2020, A5E46027705B AA
Radial force diagram for 1FW328❑ hollow shaft

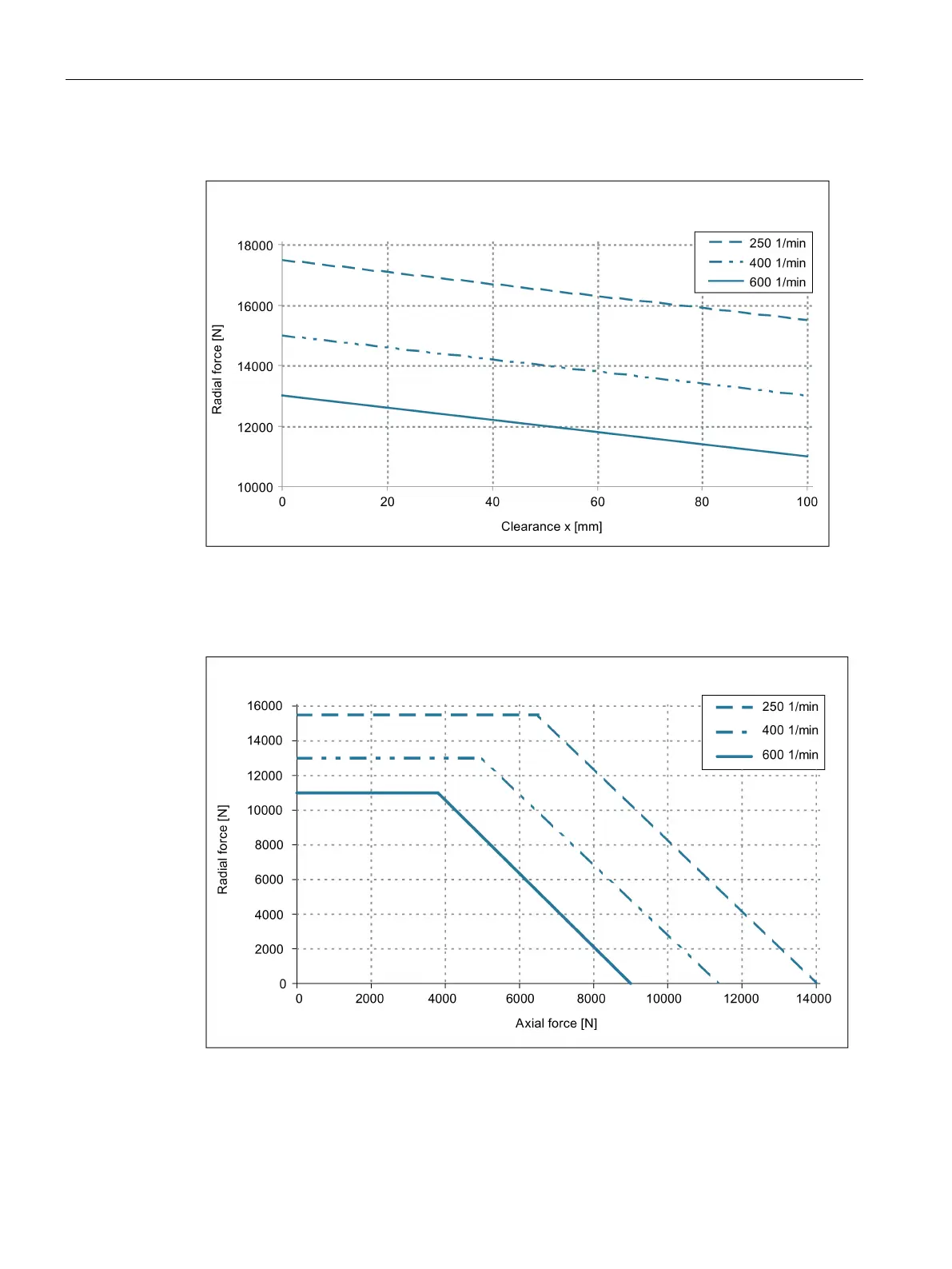

Figure 3-10 Radial force diagram for 1FW328❑, with nominal bearing change interval of 20000 h
Axial force diagram for 1FW328❑ hollow shaft
Figure 3-11 Permissible axial force as a function of radial force for 1FW328❑
