Configuration
5.4 Mounting
1FW3 complete torque motors
132 Configuration Manual, 08/2020, A5E46027705B AA
Hollow shaft with option +Q30
☐-☐☐☐☐☐-☐☐
● Harmonized clamping system
● For hollow shafts through which hot or cold media are routed
● Axial mounting space is required at the DE
● Mounted only from the DE or alternatively, in two parts from DE/NDE
● Torque transmission to the customer shaft (h8 fit) via a flanged clamping element at the
DE
● Supported at the NDE using an aluminum ring to guarantee centered mounting and to
prevent any inadmissible wobbling motion.

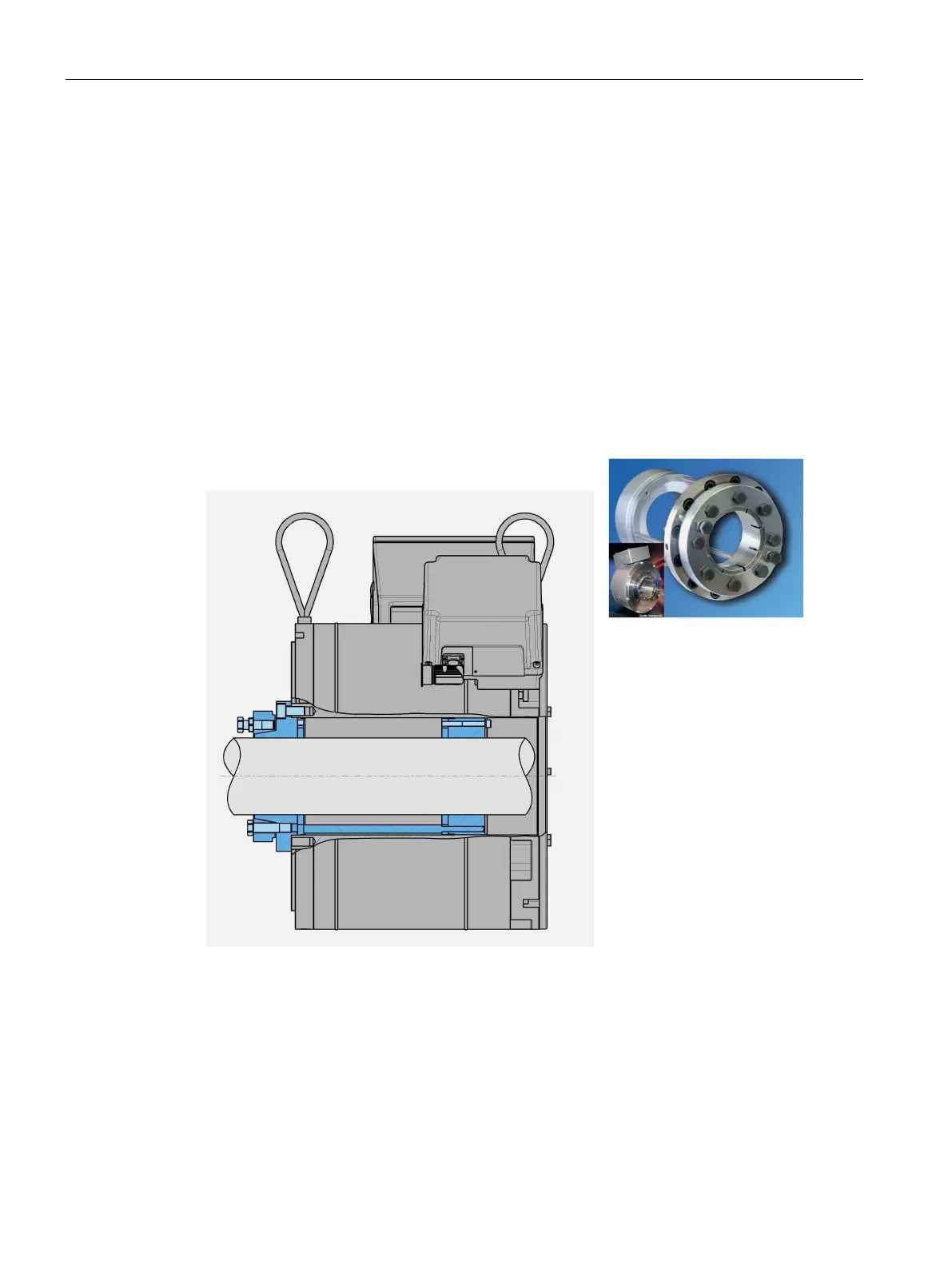

Figure 5-27 Outer clamping system
