Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
139
Mounting examples
1
Siemens must be consulted (regarding overdetermination)
2
For bearing module with increased radial/axial force load

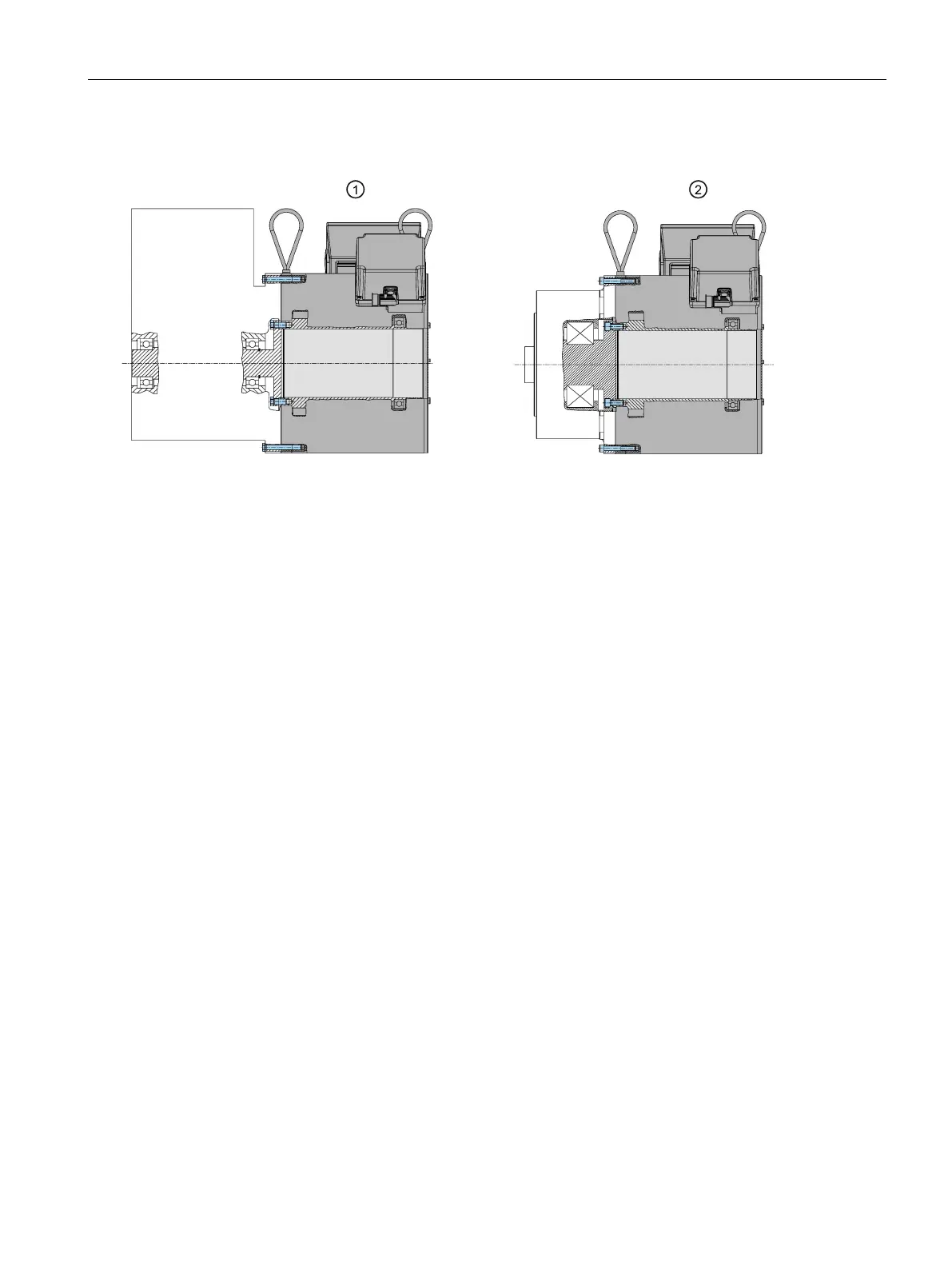

Figure 5-32 Mounting examples for motors with no bearings at the DE
