Electrical connection
8.3 System integration
1FW3 complete torque motors
304 Configuration Manual, 08/2020, A5E46027705B AA
No.
Description
No.
Description
No.
Description
1
3 x M5 connection studs
4
M6 grounding screw
7
2 x M12 grounding studs
2
3 x M10 connection studs
5
M10 grounding screw
8
12 x M16 connecting studs
3
M4 grounding screw
6
3 x M12 connection studs
9
4 x M16 grounding studs

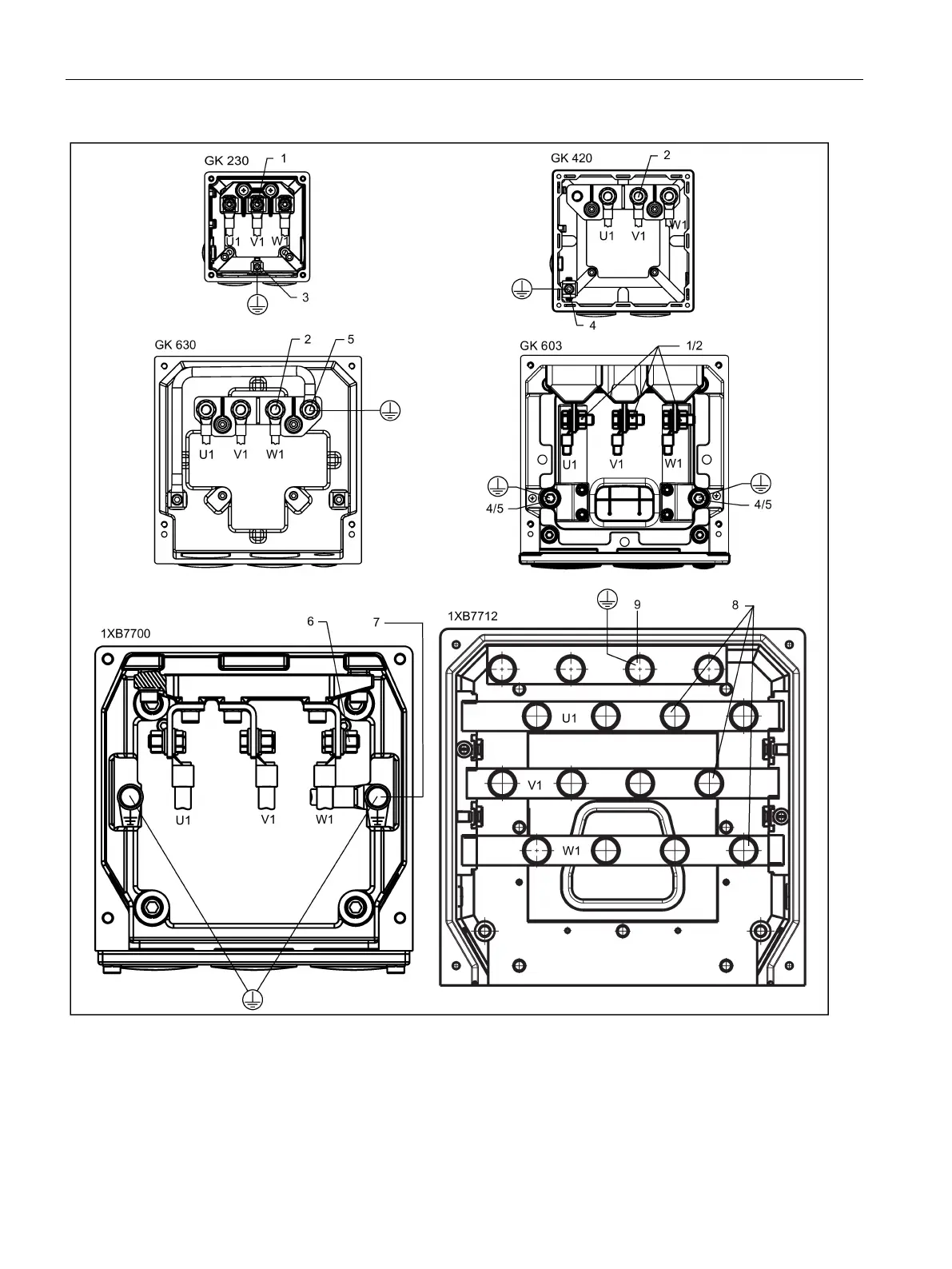

Figure 8-6 Terminal box assignments
