Mechanical properties
3.1 Cooling
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
45

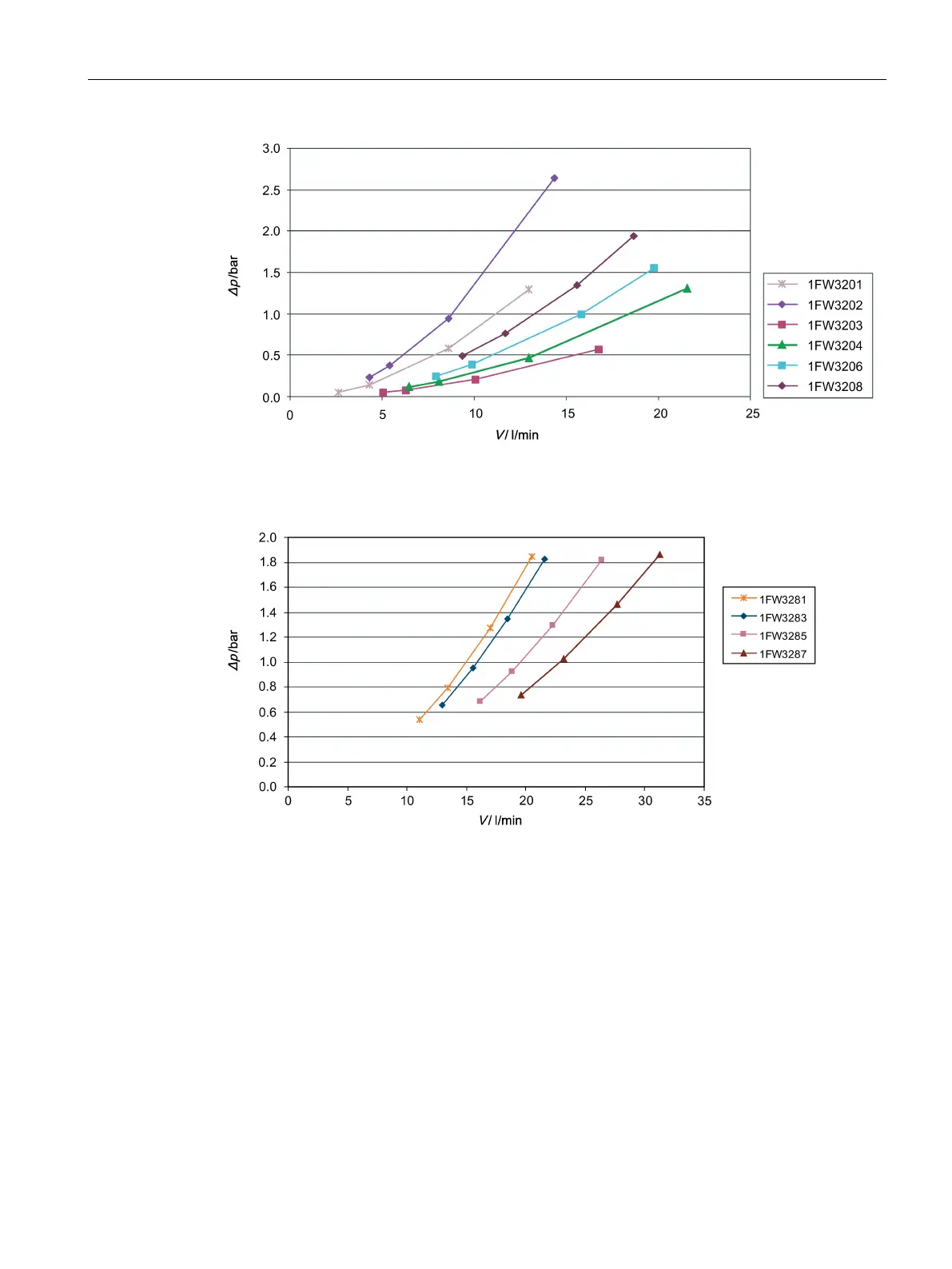

Figure 3-3 Flow rate for SH200
Figure 3-4 Flow rate for SH280
