Siemens SIMOTICS T-1FW3 User Manual

Mechanical properties
3.6 Radial and axial forces
1FW3 complete torque motors
58 Configuration Manual, 08/2020, A5E46027705B AA
Radial force diagram for 1FW315❑ plug-on shaft

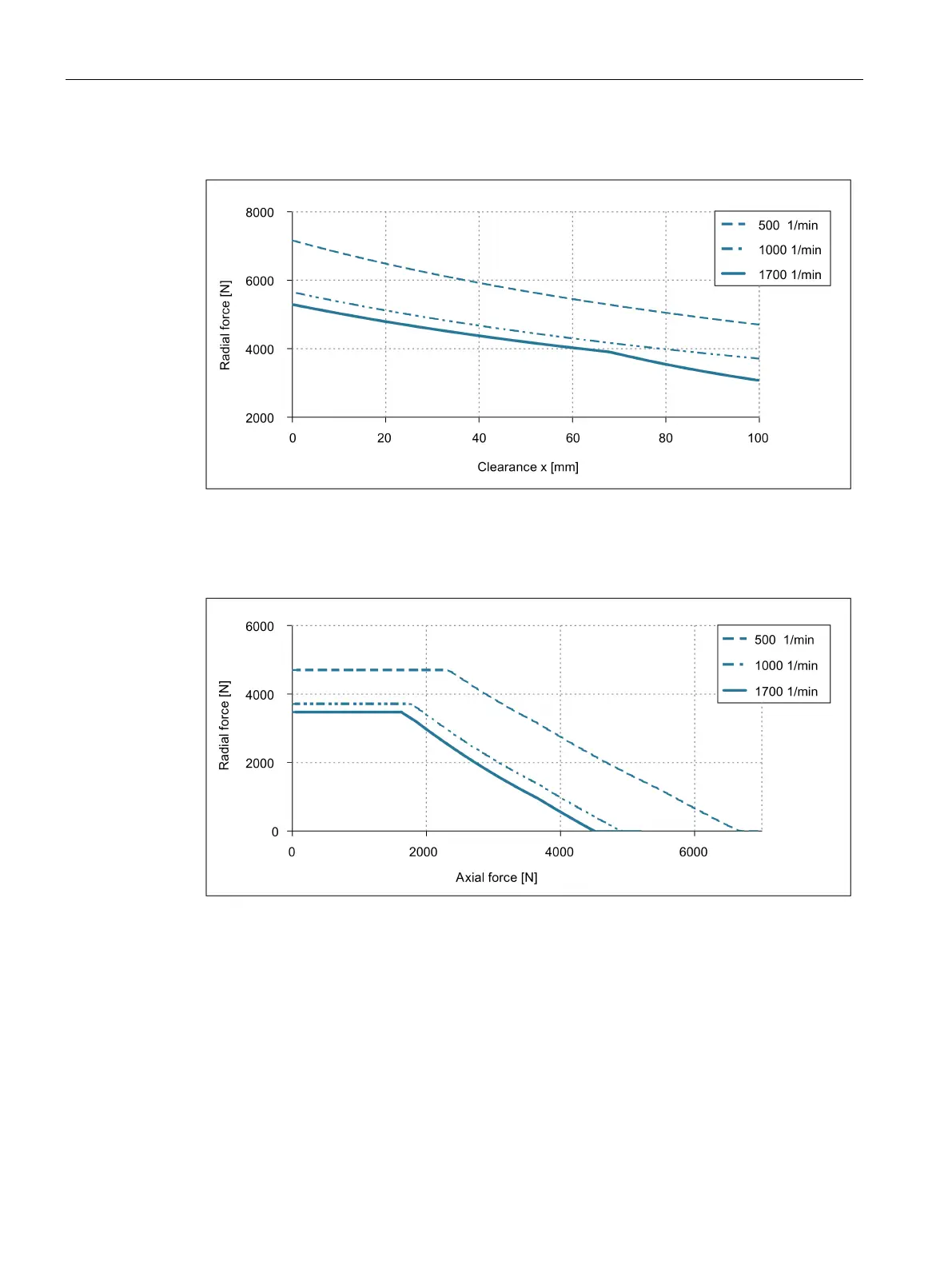

Figure 3-14 Radial force diagram for 1FW315❑, with nominal bearing change interval of 60000 h
Axial force diagram for 1FW315❑ plug-on shaft
Figure 3-15 Permissible axial force as a function of radial force for 1FW315❑ (60000 h)
