Measuring socket
PCB connector

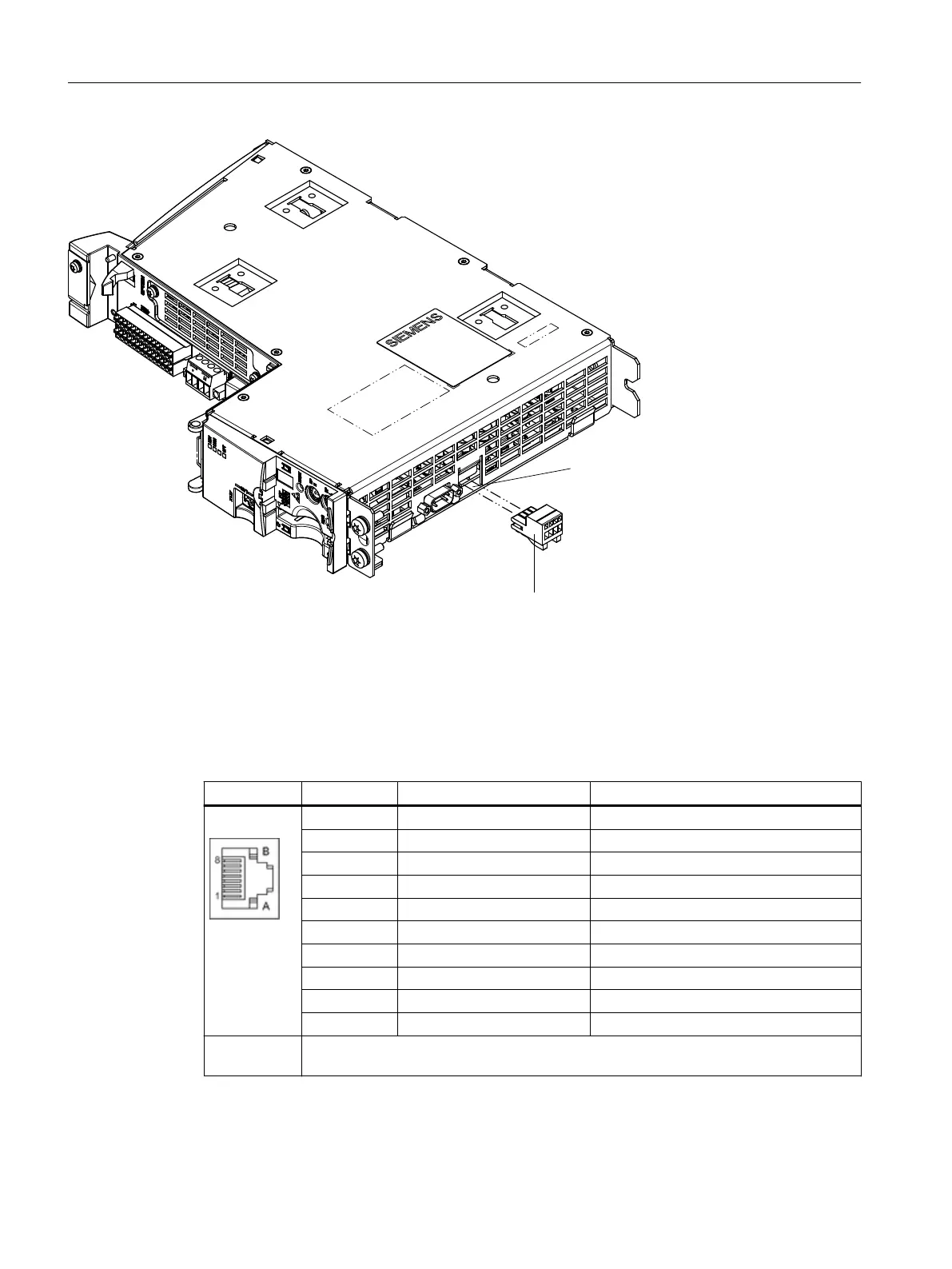

Figure 3-3 Mounting a PC board connector (Phoenix Contact) in the measuring socket
3.1.2.2 X100-X103 DRIVE-CLiQ interfaces
Table 3-2 X100-X103 DRIVE-CLiQ interfaces
Pin Signal name Technical data
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use -
5 Reserved, do not use -
6 RXN Receive data -
7 Reserved, do not use -
8 Reserved, do not use -
A + (24 V) Power supply
B M (0 V) Electronics ground
Connector
type
DRIVE-CLiQ socket
The blanking covers for the DRIVE-CLiQ interfaces are included in the scope of delivery.
Blanking covers (50 x) Article No.: 6SL3066-4CA00-0AA0
Control Units
3.1 Control Unit CU320-2 PN (PROFINET)
Supplementary component descriptions
14 Manual, 06/2019
