5.3.2.2 X500/X501 DRIVE-CLiQ interfaces

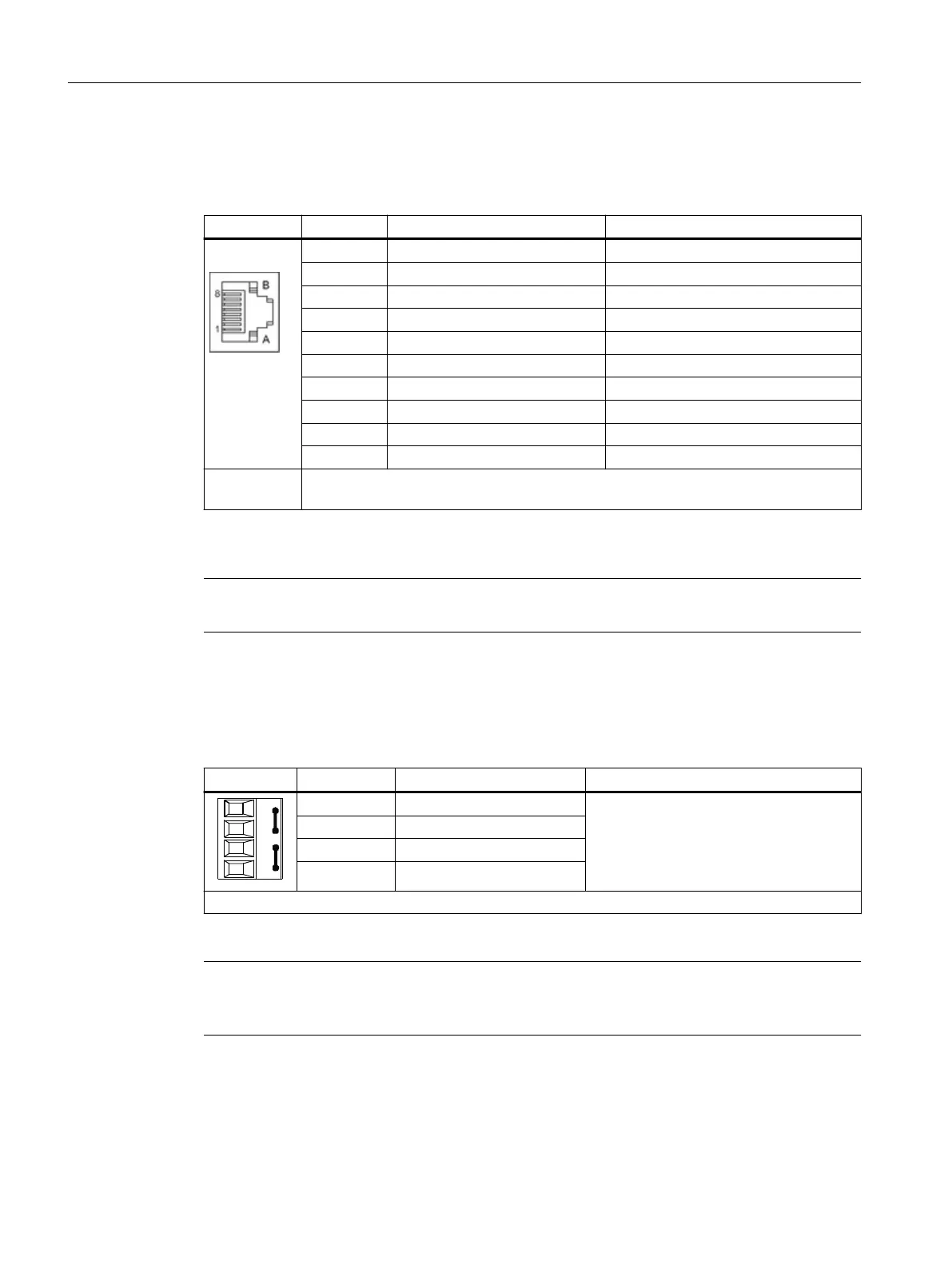

Table 5-23 X500/X501: DRIVE-CLiQ interfaces
Pin Signal name Technical data
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use -
5 Reserved, do not use -
6 RXN Receive data -
7 Reserved, do not use -
8 Reserved, do not use -
A + (24 V) Power supply, max. 450 mA
B M (0 V) Electronics ground
Connector
type
DRIVE-CLiQ socket
The blanking covers for the DRIVE-CLiQ interfaces are included in the scope of delivery.
Blanking covers (50 units), article number: 6SL3066-4CA00-0AA0
Note
The maximum DRIVE-CLiQ cable length is 100 m.
5.3.2.3 X524 Electronics power supply
Table 5-24 X524 electronics power supply
Terminal Designation Technical data
+
M
+ Electronics power supply Voltage: 24 V DC (20.4 ... 28.8 V)
Current consumption (max.): 0.5 A
(including DRIVE-CLiQ)
Max. current via the jumper in the connec‐
tor: 20 A (15 A according to UL/CSA)
+ Electronics power supply
M Electronics ground
M Electronics ground
Type: Screw terminal 2
The maximum cable length that can be connected is 30 m.
Note
The two "+" and "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
