3.2.2.4 X132 digital inputs/outputs

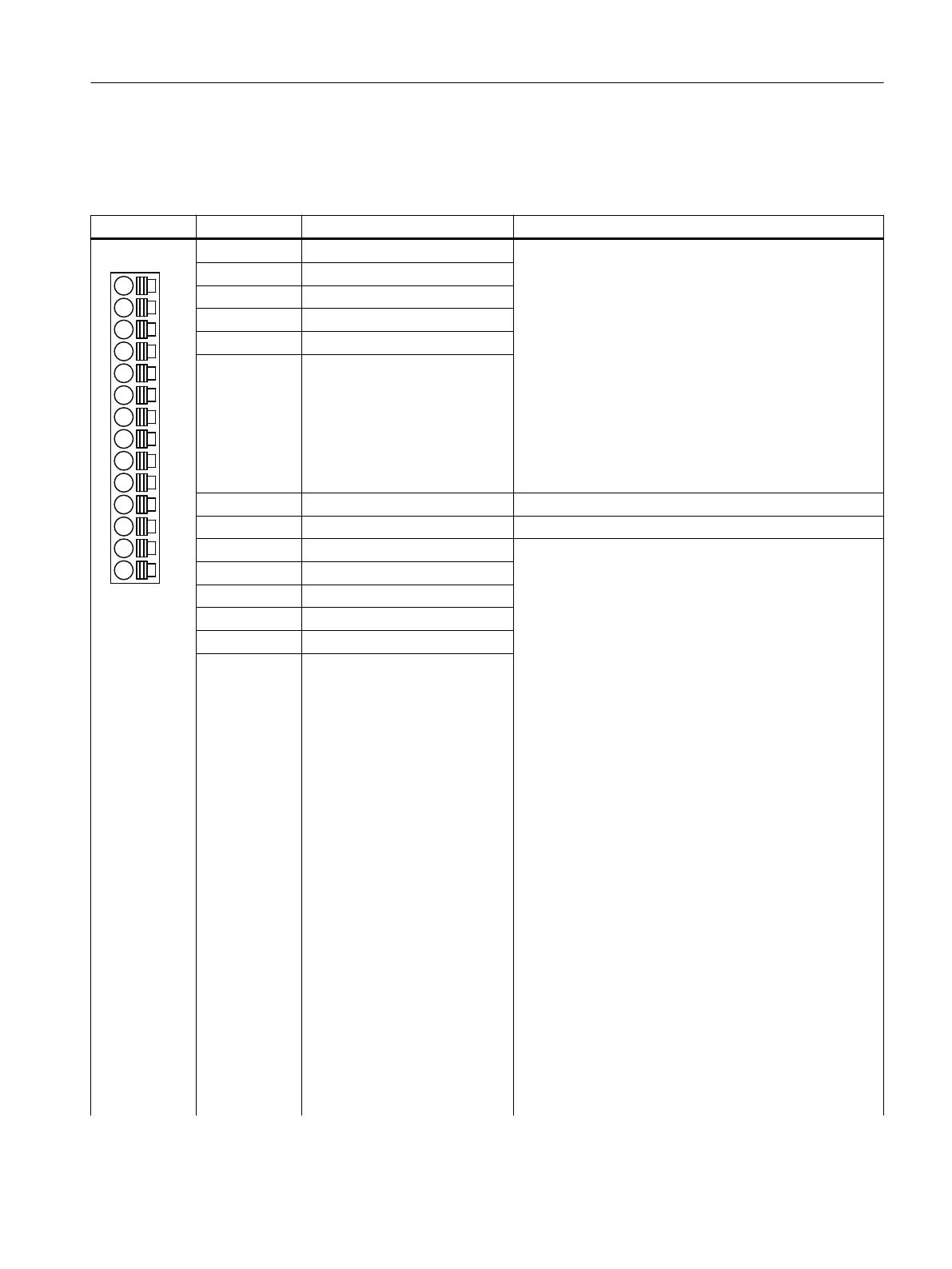

Table 3-18 X132 digital inputs/outputs
Terminal Designation
1)
Technical data
1
1 DI 4 Voltage: -3 … +30 V DC
Electrical isolation: Yes
Reference potential: M2
Input characteristic acc. to IEC 61131-2, type 1
Input voltage (including ripple)
"1" signal: 15 … 30 V
"0" signal: -3 … +5 V
Input current
at 24 V DC: typ. 3.5 mA
at <0.5 mA: Signal "0" reliably detected
Input delay
for "0" → "1": typ. 50 μs
for "1" → "0": typ. 150 µs
2 DI 5
3 DI 6
4 DI 7
5 DI 20
6 DI 21
7 M2 Reference potential for terminals 1 … 6
8 M Electronics ground
9 DI/DO 12 As input:
Voltage: -3 … +30 V DC
Electrical isolation: no
Reference potential: M
Input characteristic acc. to IEC 61131-2, type 1
Input voltage (including ripple)
"1" signal: 15 … 30 V
"0" signal: -3 … +5 V
Input current
at 24 V DC: typ. 3.5 mA
at <0.5 mA: Signal "0" reliably detected
Input delay
for "0" → "1": typ. 5 μs
for "1" → "0": typ. 50 μs
DI 12, DI 13, DI 14 and DI 15 are "fast inputs"
2)
As output:
Voltage: 24 V DC
Electrical isolation: no
Reference potential: M
Output voltage
"1" signal, with load: > X124.+ -2 V
Output current
for each output: ≤ 0.5 A
Sum of all four outputs: ≤ 2 A
Residual current for "0" signal: < 0.5 mA
Short-circuit protection, automatic restart after a short-
circuit
Load types: ohmic, capacitive, inductive
Output delay
3)
for "0" → "1": typ. 150 μs / max. 400 μs (ohmic load)
for "1" → "0": typ. 75 µs / max. 100 µs (ohmic load)
10 DI/DO 13
11 M
12 DI/DO 14
13 DI/DO 15
14 M
Control Units
3.2 Control Unit CU320-2 DP (PROFIBUS)
Supplementary component descriptions
Manual, 06/2019 33
