5.2.2 Interface description
5.2.2.1 Overview
DRIVE-CLiQ
interfaces
PE conductor
connection
M4 / 1.8 Nm
Relay outputs
Analog inputs
Analog outputs
Voltage/
current measurement
Electronics power
supply
Shield connection
Digital
inputs
Digital inputs/outputs
Auxiliary power for
Digital inputs
LED
X501
X500
X520
X530
X524
X540
X541
S5
X521
X522
X542

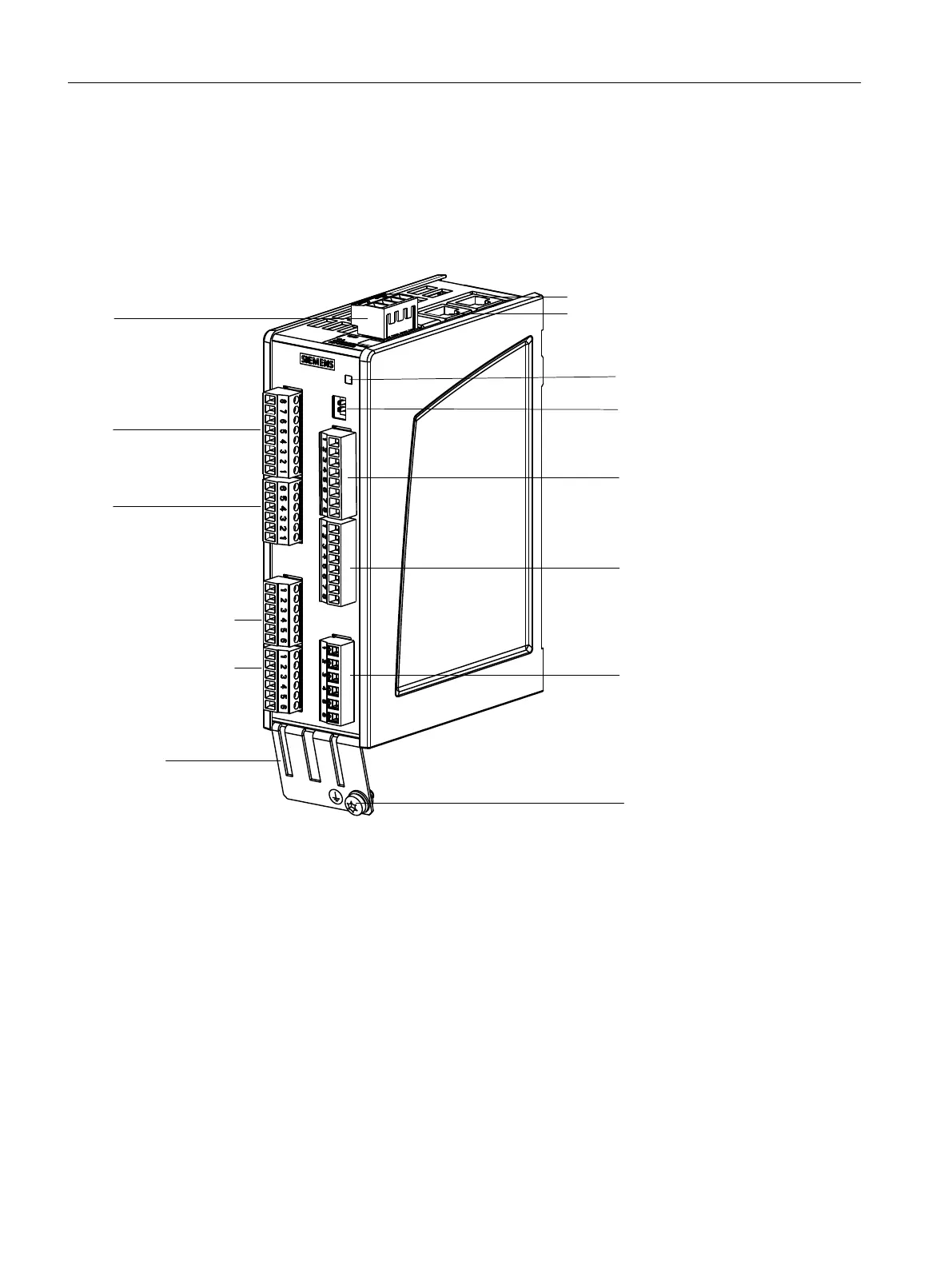

Figure 5-2 Interface overview TM31
