5.3.2.4 X531-X536 temperature sensor inputs

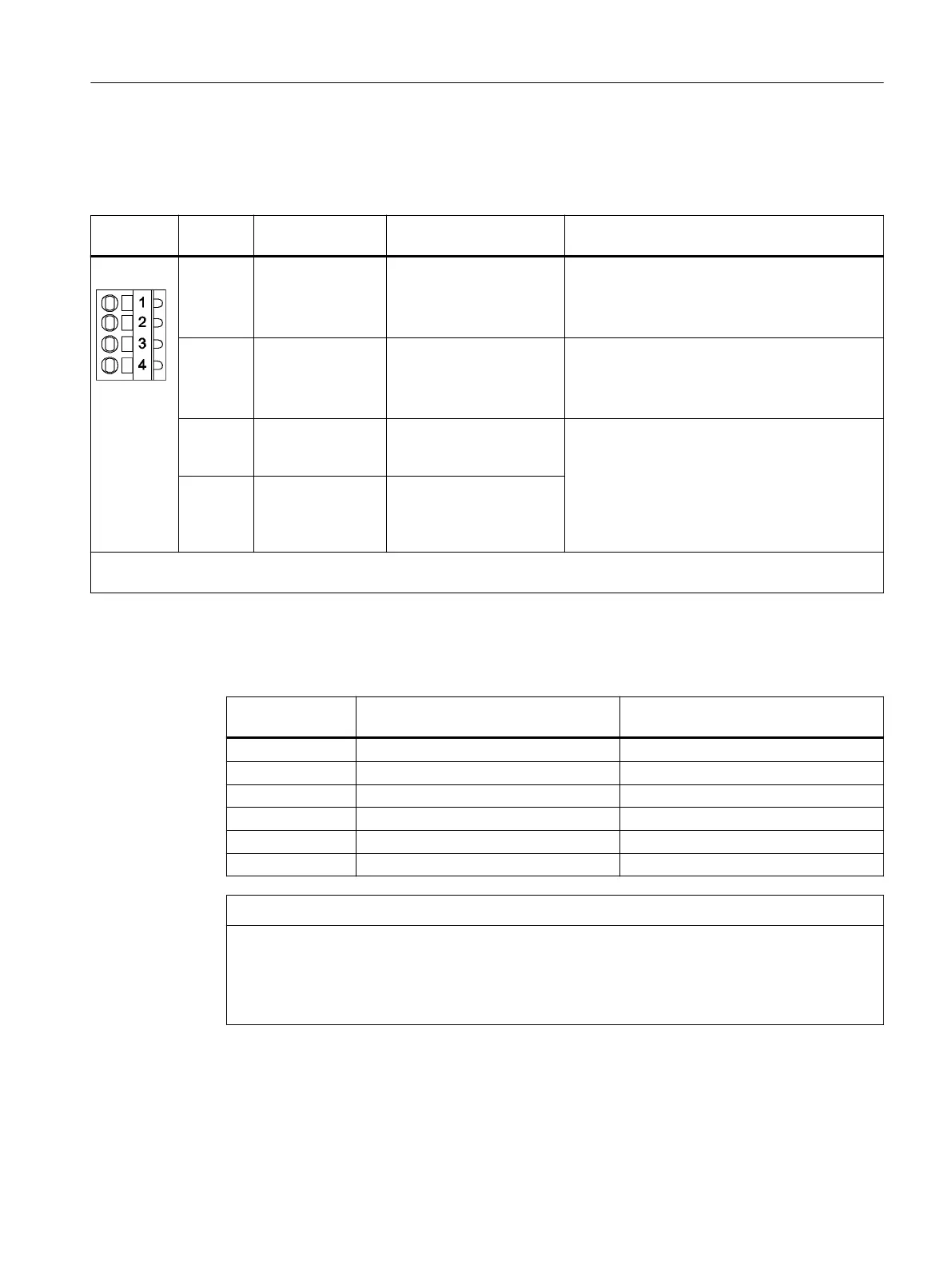

Table 5-25 X531-X536: Temperature sensor inputs
Terminal Function
1x2- / 2x2-wire
Function
3 and 4-wire
Technical data
1 +Temp
(channel x)
+
(Channel x)
Temperature sensor connection for sensors with
1x2 wires
Connection of the 2nd measurement cable for
sensors with 4 wires
2 -Temp
(channel x)
-
(Channel x)
Temperature sensor connection for sensors with
1x2 wires
Connection of the 1st measurement cable for
sensors with 3 and 4 wires
3 +Temp
(channel y)
+ I
c
(constant current, positive
channel x)
Temperature sensor connection for sensors with
2x2, 3 and 4-wires
4 -Temp
(channel y)
- I
c
(constant current, nega‐
tive
channel x)
Type: Spring-loaded terminal 3
Measuring current via temperature sensor connection: approx. 0.83 mA
When connecting temperature sensors with 3 wires, a jumper must be inserted between
X53☐.2 and X53☐.4 (☐ = 1...6).
Table 5-26 Channel assignment
Terminal Channel number [x]
for 1x2, 3 and 4-wires
Channel number [y]
for 2x2 wires
X531 0 6
X532 1 7
X533 2 8
X534 3 9
X535 4 10
X536 5 11
NOTICE
Damage to motor in the event of incorrectly connected KTY temperature sensor
If a KTY temperature sensor is connected with incorrect polarity, it is not possible to detect
when the motor overheats. Overheating can cause damage to the motor.
● Connect a KTY temperature sensor with the correct polarity.
