Tool Offsets 04.00
8.5 Activate 3D tool offsets
8
840D
NCU 572
NCU 573
840Di

Siemens AG 2000. All rights reserved
8-284
SINUMERIK 840D/840Di/810D/FM-NC Programming Guide Advanced (PGA)
−
04.00 Edition
Path curvature
Path curvature is not monitored. In such cases, it is
also advisable to use only tools of a type that do not
violate the contour.

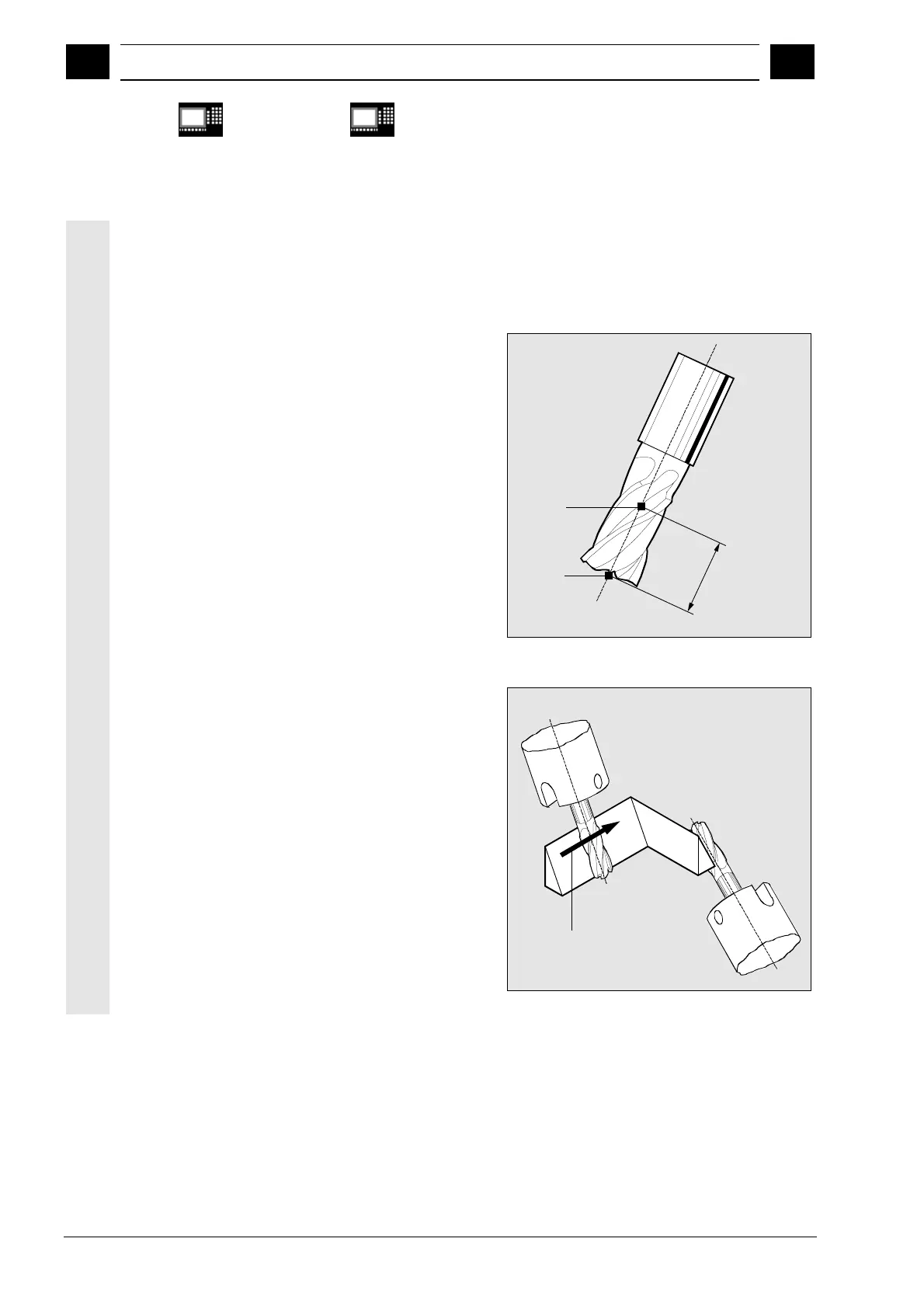

Insertion depth (ISD)
Program command ISD (insertion depth) is used to
program the tool insertion depth for peripheral milling
operations. This makes it possible to change the
position of the machining point on the outer surface
of the tool.
ISD specifies the distance between the cutter tip
(FS) and the cutter reference point (FH). The point
FH is produced by projecting the programmed
machining point along the tool axis. ISD is only
evaluated when 3D tool radius compensation is
active.
ISD
FH
FS
Inside corners/outside corners
Inside and outside corners are handled separately.
The term inside or outside corner depends on the
tool orientation.
When changes occur in the orientation at a corner,
the corner type can change during machining. If this
happens, machining stops and an error message is
generated.
Direction of machining
