Siemens SINUMERIK 810D Programming Guide

7
Transformations 08.97
7.2 Millin
g
machinin
g
on turned
p
arts: TRANSMIT
7
840D
NCU 571
840D
NCU 572
NCU 573
FM-NC 810D 840Di

Siemens AG 2000. All rights reserved
7-238
SINUMERIK 840D/840Di/810D/FM-NC Programming Guide Advanced (PGA)
−
04.00 Edition
7.2 Milling machining on turned parts: TRANSMIT
Programming
TRANSMIT
or
TRANSMIT(n)
TRAFOOF
Explanation of the commands
TRANSMIT
Activates the first declared TRANSMIT function
TRANSMIT(n)
Activates the nth declared TRANSMIT function; n may not be greater
than 2 (TRANSMIT (1) corresponds to TRANSMIT).
TRAFOOF
Deactivates an active transformation
An active TRANSMIT transformation TRANSMIT
transformation is also deactivated if one of the other
transformations is activated in the respective
channel (e.g. TRACYL, TRAANG, TRAORI).

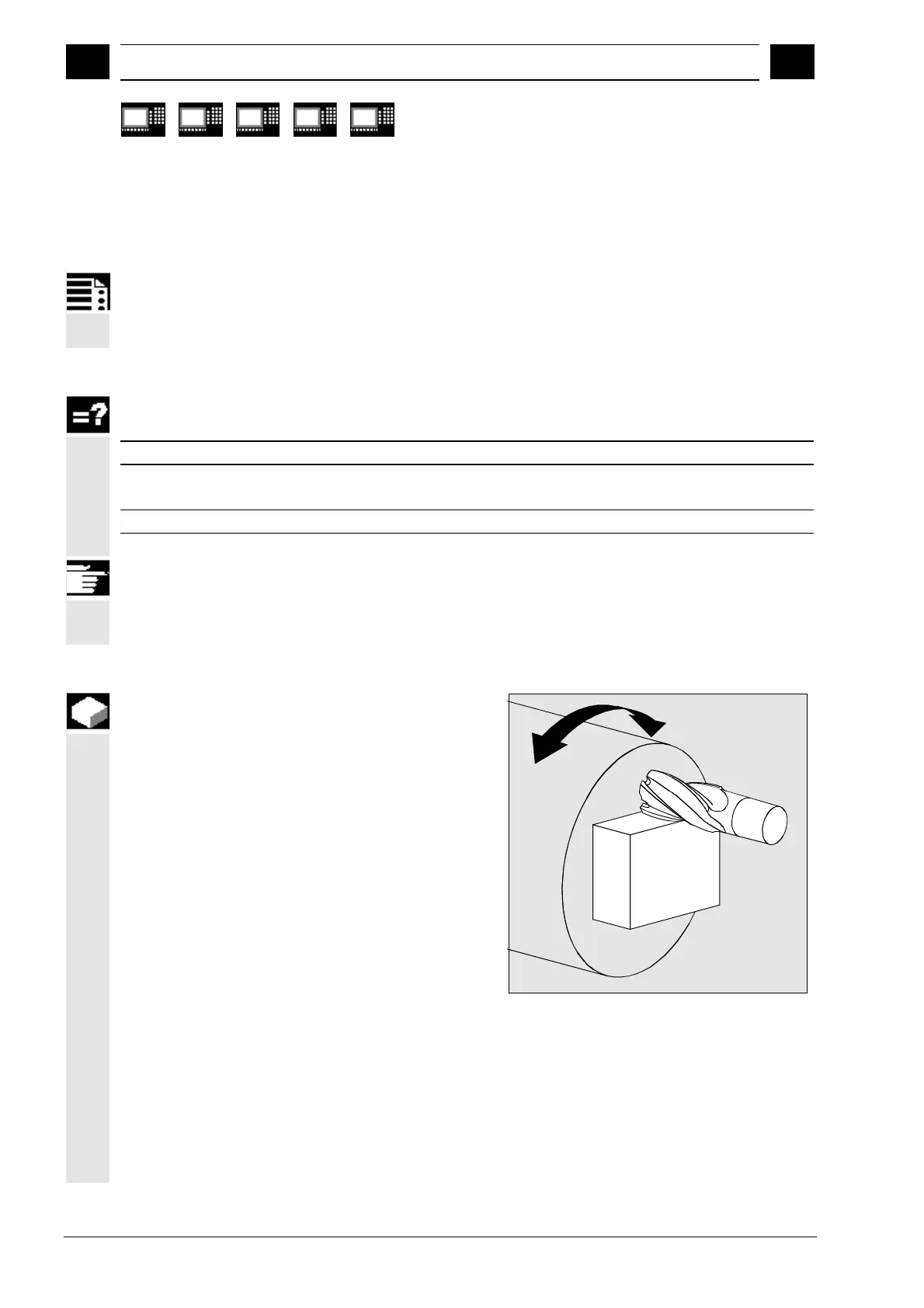

The TRANSMIT function provides the following
capabilities:
•
End face machining of rotating parts in the
rotating clamp (drill holes, contours).
•
A Cartesian coordinate system
can be used to program these
machining operations.
•
The control transforms the programmed
traversing movements of the Cartesian
coordinate system into traversing movements on
the real machine axes (standard setting):
– Rotary axis
– Infeed axis perpendicular to the
rotary axis.
– Longitudinal axis parallel to the
rotary axis.
The linear axes are positioned perpendicular
to each other.
•
Tool center offset relative to the turning center is
permitted.
•
The speed control provides defined limits for the
rotary movements.
