Siemens SINUMERIK 810D Programming Guide

1
04.00 Flexible NC Programming
1.3 Arra
y
definition
1
840D
NCU 571
840D
NCU 572
NCU 573
FM-NC 810D 840Di

Siemens AG 2000. All rights reserved
SINUMERIK 840D/840Di/810D/FM-NC Programming Guide Advanced (PGA)
−
04.00 Edition
1-31
SW 4 and higher
:
An array can be larger than a memory block. The
MD value for block size should be set such that
arrays are fragmented only in exceptional cases.
Standard: 256 bytes
Memory requirements per element: see above.
Example
:
Global user data should contain PLC machine data for
switching the control on/off (definition of BOOL arrays).
Additional notes
Arrays with a maximum of 2 dimensions can be
defined.
Arrays with STRING variables may only be one-
dimensional. The string length is specified after the
data type String.

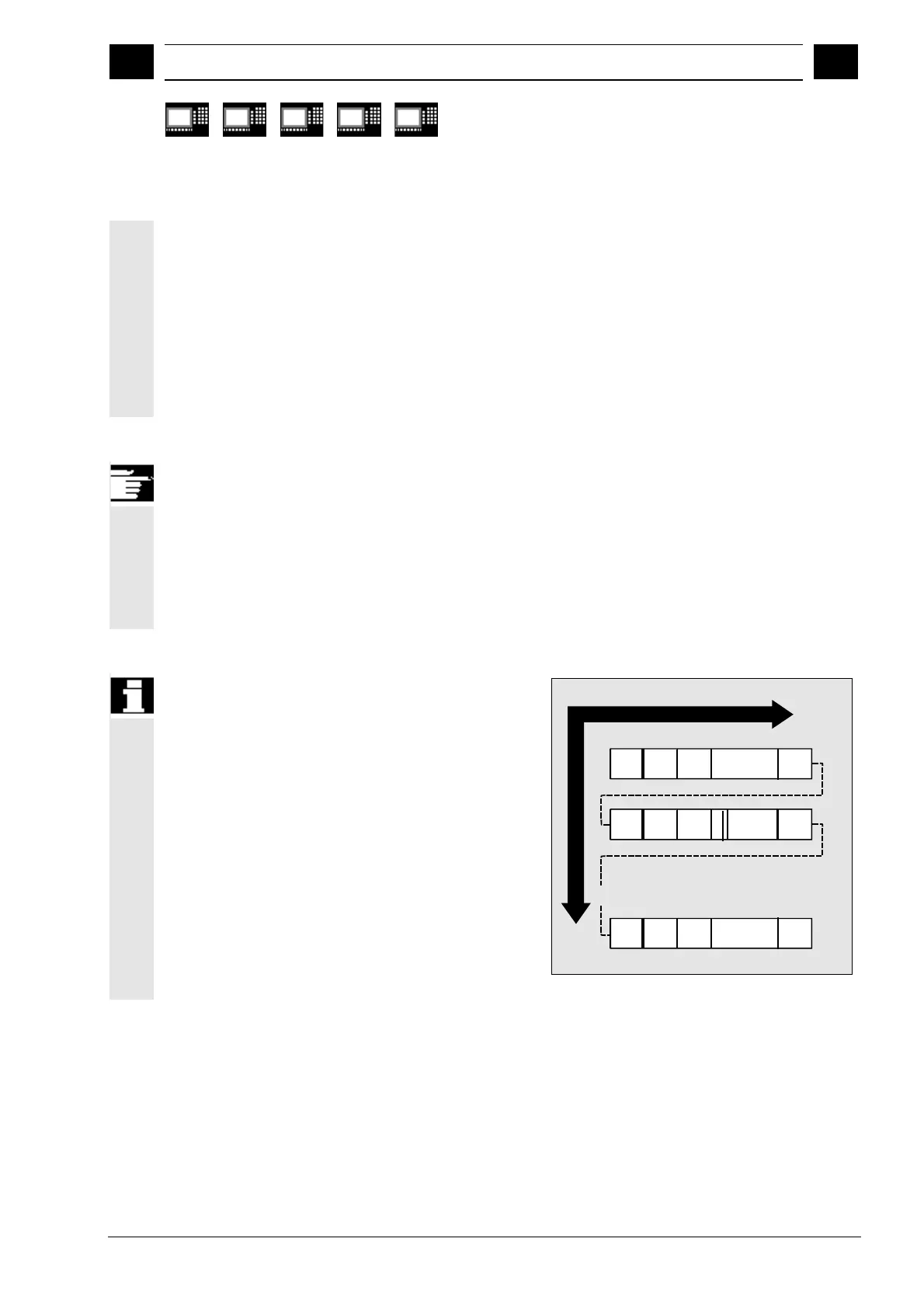

Array index
The elements of an array can be accessed via the
array index. The array elements can either be read
or assigned values using this array index.
The first array element begins with the index [0,0].
With an array size of [3,4], for example, the
maximum array index is [2,3].
. . . . .
. . . . .
. . . . .
0,m-10,20,10,0
.....
1,m-11,21,11,0
.....
n
-
,m-1
1,
n-1,2n-1,1n-1,0
[n,m]
n
m
Array index
. . . . .
