Siemens SIPROTEC 5 Hardware Description

Terminals
Overview of Terminals
[dw_pb201, 2, --_--]

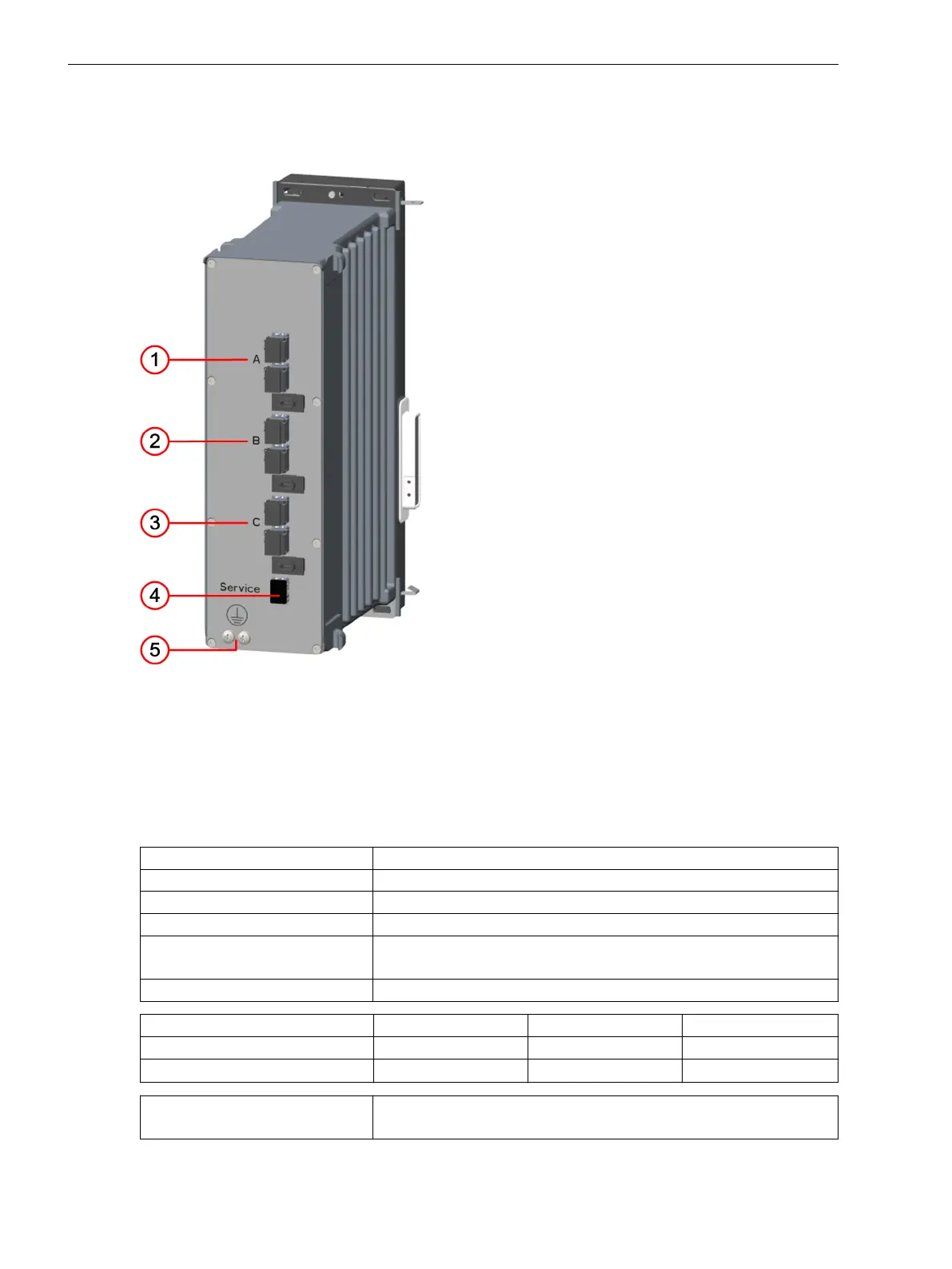

Figure 3-61
PB201 – Terminals
(1) 2 duplex LC interfaces channel A
(2) 2 duplex LC interfaces channel B
(3) 2 duplex LC interfaces channel C
(4) 1 duplex LC interface service port
(5) 2 protective grounding terminals
Product code P1Txxxxxxxxxx
Connector type 7 x duplex LC of which 1 is a service port
Wavelength λ = 1300 nm
Baud rate 100 Mbit/s
Protocol IEC 61850-9-2 (SMV)
IEC 62439-3 (PRP and HSR)
Max. line length 2 km for 62.5 µm/125 µm optical fibers
Transmitter Power Minimum Typical Maximum
50 μm/125 μm, NA
1
= 0.2
-23.5 dBm -20.0 dBm -14.0 dBm
62.5 μm/125 μm, NA
1
= 0.275
-20.0 dBm -17.0 dBm -14.0 dBm
Receiver sensitivity Maximum -12.0 dBm
Minimum -31.0 dBm
3.2.19.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
102 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
