Arc Sensors for Module: ARC-CD-3FO
Point Sensor
Description
The point sensor detects arcs in the control cabinets of the air-insulated system part.
[dwsensap-210314-01, 2, en_US]

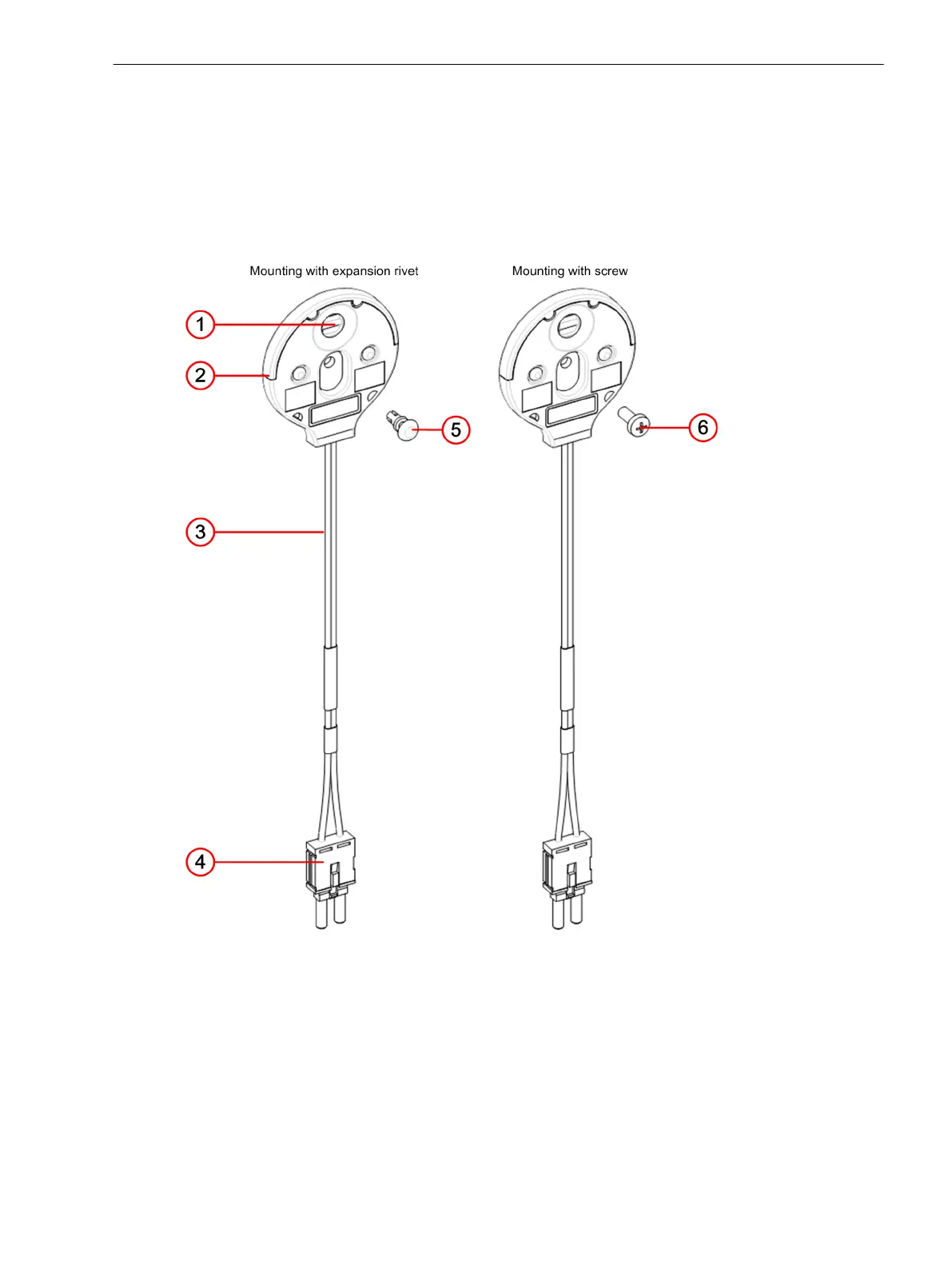

Figure 5-12
Point Sensor for the Arc-Protection Module: ARC-CD-3FO
(1) Optically active zone
(2) Sensor head
(3) Supply line
(4) Plug to the arc-protection module: ARC-CD-3FO
(5) Expansion rivet, 4x7
(6) Screw, M4
5.4
5.4.1
5.4.1.1
Working on the Device
5.4 Arc Sensors for Module: ARC-CD-3FO
SIPROTEC 5, Hardware Description, Manual 173
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
