Siemens SIPROTEC 5 Hardware Description

Surface-Mounted Devices with Detached On-Site Operation Panel
Description
i
i
NOTE
The basic device structure is described in chapter 2.1.1 Description .
The surface-mounting devices with detached on-site operation panel are a variant of the surface-mounting
devices with an integrated on-site operation panel. The essential difference is that you can fit the on-site oper-
ation panel separately from the device. The distance frames are not assembled in this device type.
Base Module
The distance between the installation location of the device and that of the on-site operation panel is limited
to not more than 5 m (196.85 in) by the length of the connecting cable. The on-site operation panel must be
grounded.

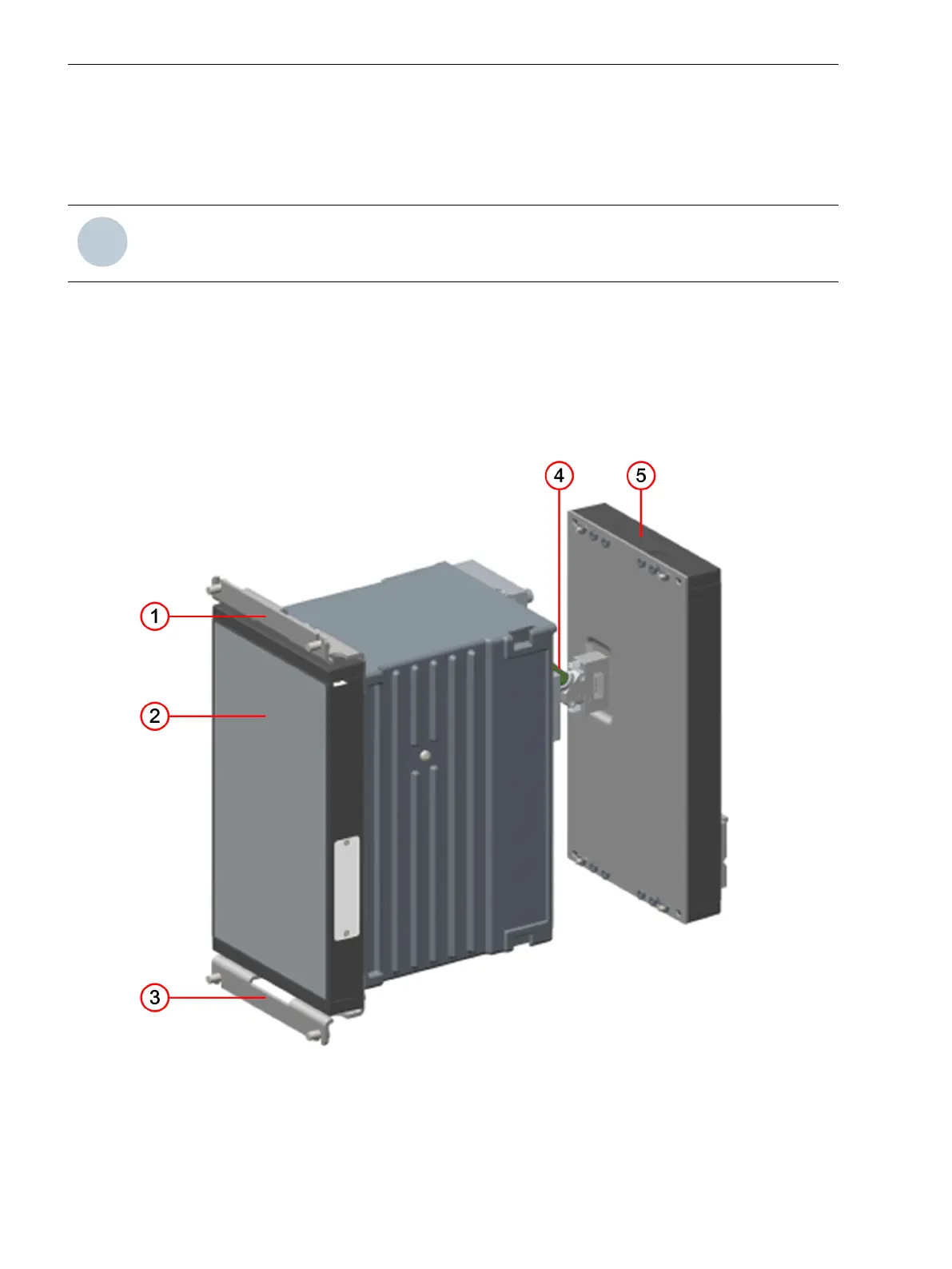

[le_device mounting base module, 1, --_--]
Figure 2-16
Device Structure of the Base Module
(1) Top fixing bracket
(2) Cover
(3) Bottom fixing bracket
2.3
2.3.1
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
34 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
