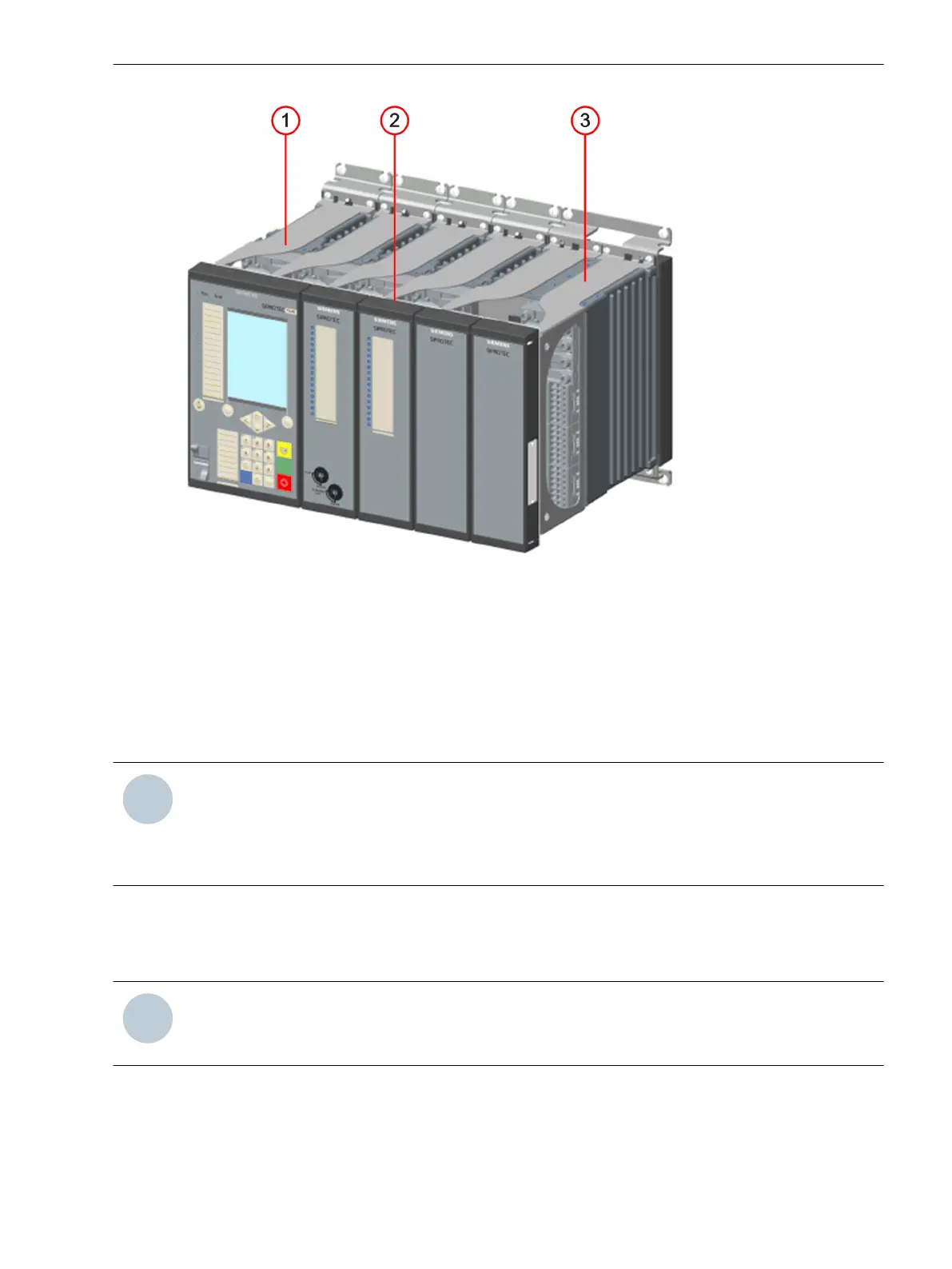

Siemens SIPROTEC 5

Plug-In Module
USART-AB-1EL USART-AC-2EL Plug-In Module USART-AD-1FO USART-AE-2FO ETH-BA-2EL ETH-BB-2FO ETH-BD-2FO
1
USART-AF-1LDFO USART-AW-2LDFO USART-AG-1LDFO USART-AU-2LDFO USART-AK-1LDFO
USART-AV-2LDFO
USART-AH-1LDFO
2
USART-AJ-1LDFO
3
USART-AX-2LDFO
4
USART-AY-2LDFO
5
ANAI-CA-4EL ANAI-CE-2EL ARC-CD-3FO
IEC 60870-5-104 – – – – ■ ■ ■ – – – – – – – – – – – – –
DNP3 serial ■ ■ ■ ■ – – – – – – – – – – – – – – – –
DNP3 TCP – – – – ■ ■ ■ – – – – – – – – – – – – –
Modbus TCP – – – – ■ ■ ■ – – – – – – – – – – – – –
Modbus RTU ■ ■ ■ ■ – – – – – – – – – – – – – – – –
Synchrophasor (IEEE C37.118 - PMU) – – – – ■ ■ ■ – – – – – – – – – – – – –
Protection interface (Sync. HDLC) – – ■ ■ – – – ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ – – –
Protection interface (IEEE C37.94) – – ■ ■ – – – – – – – – – – – – – – – –
PROFINET IO – – – – ■ ■ ■
7
– – – – – – – – – – – – –
SUP Serial (Slave Unit Protocol) for
connecting external temperature- or
20-mA measuring devices
■ ■ ■ ■ – – – – – – – – – – – – – – – –
SUP Ethernet (Slave Unit Protocol) for
connecting external temperature- or
20-mA measuring devices
– – – – ■ ■ ■ – – – – – – – – – – – – –
Diagnosis: Ethernet module homepage
(http)
– – – – ■ ■ ■ – – – – – – – – – – – – –
Measuring transducer, 4 inputs, DC
±20 mA
– – – – – – – – – – – – – – – – – ■ – –
Measuring transducer, 1 input, 0 VDC
to 300 VDC
– – – – – – – – – – – – – – – – – – ■ –
Arc Protection – – – – – – – – – – – – – – – – – – – ■
Additional Ethernet protocols and services
DHCP, DCP (automatic IP configuration) – – – – ■ ■ ■ – – – – – – – – – – – – –
Line Mode – – – – ■ ■ ■ – – – – – – – – – – – – –
PRP (Ethernet ring redundancy) – – – – ■ ■ ■ – – – – – – – – – – – – –
HSR (Ethernet ring redundancy)
8
– – – – ■ ■ ■ – – – – – – – – – – – – –
RSTP (Ethernet ring redundancy) – – – – ■ ■ ■ – – – – – – – – – – – – –
SNTP (time synchronization via
Ethernet)
– – – – ■ ■ ■ – – – – – – – – – – – – –
1
For modular devices only (not for 7ST85 or 6MD89)
2
Only pairs with USART-AJ-1LDFO or USART-AY-2LDFO on the opposite side
3
Only pairs with USART-AH-1LDFO or USART-AX-2LDFO on the opposite side
4
Only pairs with USART-AJ-1LDFO or USART-AY-2LDFO on the opposite side
5
Only pairs with USART-AH-1LDFO or USART-AX-2LDFO on the opposite side
7
PROFINET IO is available in the ETH-BD-2FO module with S2 redundancy and SOE functionality starting with V8.30.
8
HSR is available in the ETH-BD-2FO module starting with V8.30. The IEEE 1588v2 Transparent Clock is supported starting with V8.80.
