Siemens SIPROTEC 5 Hardware Description

²
Remove the device completely.
Assembling the On-Site Operation Panel into One Block
[dwaublo1-040211-01.tif, 2, --_--]

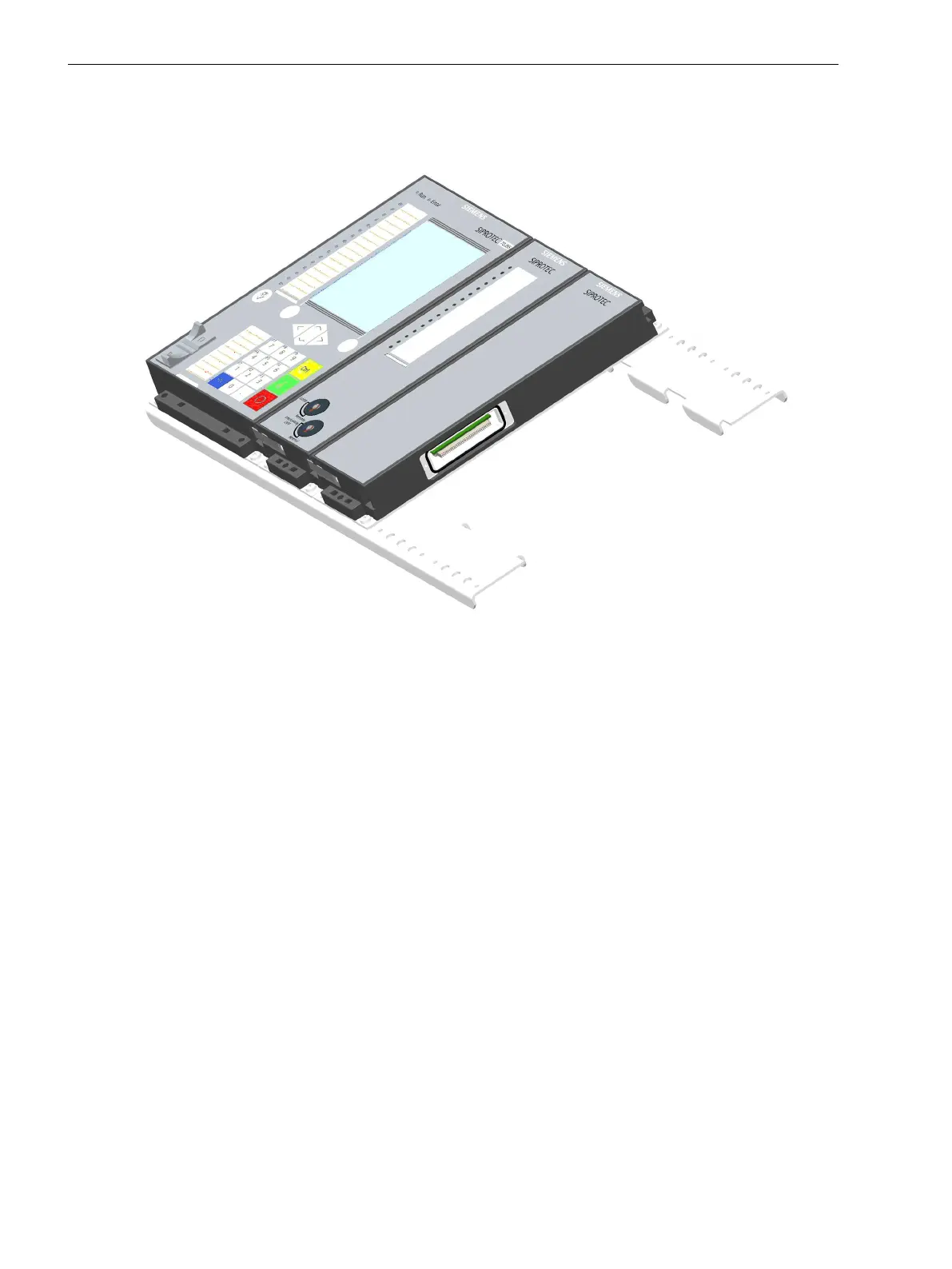

Figure 5-6
On-Site Operation Panel Fitted on Mounting Bracket
²
Place the 2 mounting brackets intended for expansion in parallel to one another on a flat surface.
²
Bolt the 1st (left-hand) on-site operation panel to the 2 mounting brackets. Do not firmly tighten the
screws.
²
Place the 2nd on-site operation panel on the right of the 1st one and screw these panels onto the 2
mounting brackets. Do not firmly tighten the screws. Make sure that the snap-in spring is engaged!
²
Bolt the 2 operation panels to one another through the contact tab. Do not firmly tighten the screws.
²
Repeat the last 2 steps for the remaining operation panels. Leave all screws loose.
Assembling the Devices
²
Remove the distance frame from the expansion module.
²
Remove the bus cover from the extreme left-hand module.
²
Remove the plastic screw covers from the extreme left-hand module and from the expansion module.
²
Place the expansion module on the left next to the device. Insert the 2 hinged angle clips of the expan-
sion module in the cut-outs of the device.
²
Swivel the expansion module in the direction of the device so that the bottom snap-in spring engages.
²
Bolt the contact tab to the 2 modules.
Installation and Commissioning
²
Install the distance frame intended for expansion.
²
Wire and, if required, fasten the current and voltage terminal blocks.
Working on the Device
5.2 Expanding Modular Devices
162 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
