Siemens SIPROTEC 5 Hardware Description

[dwethsw3-090713-01.tif, 2, en_US]

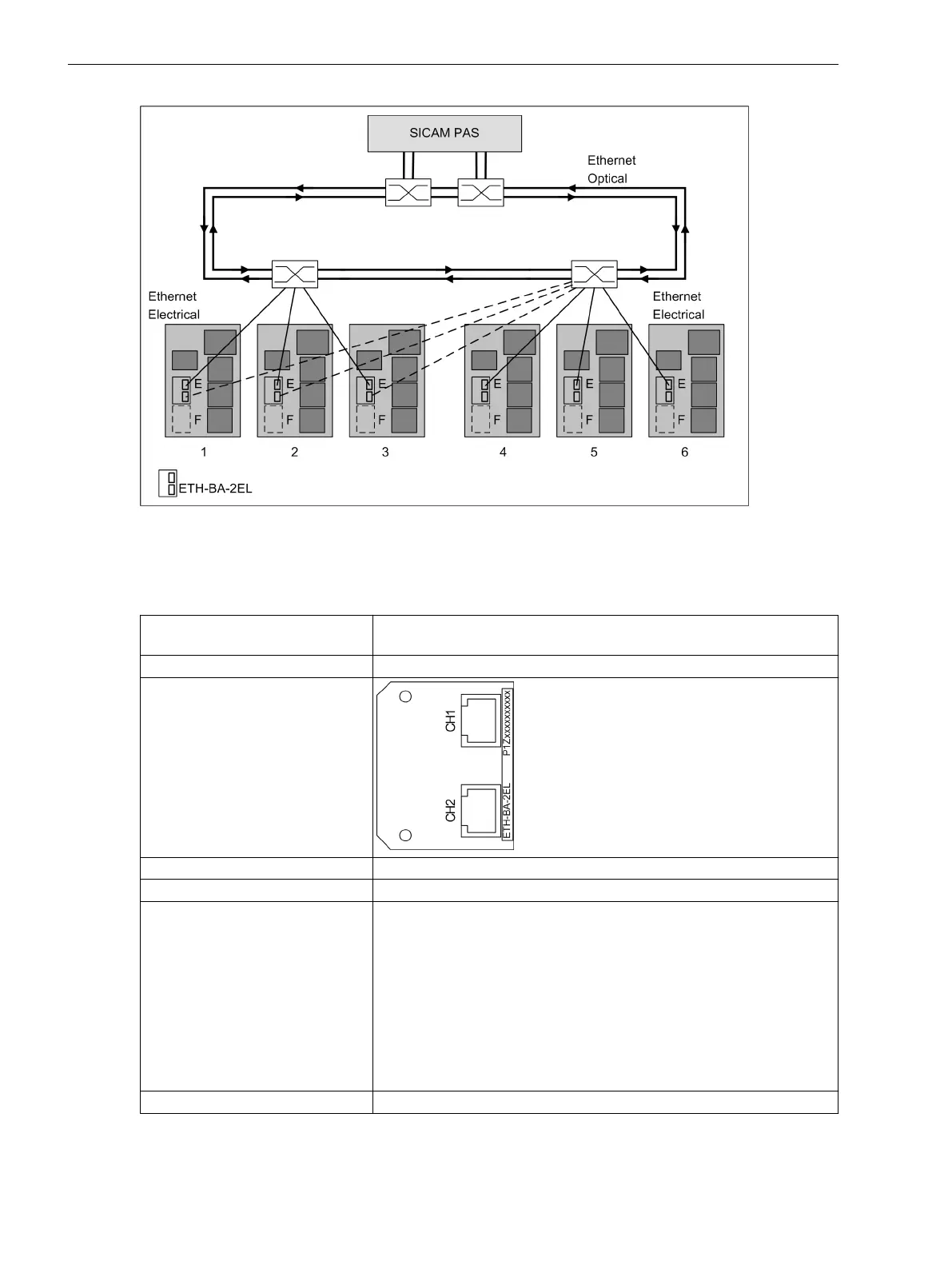

Figure 4-9 Operation of Ethernet Modules Without Integrated Switch Function with Single or Redundant
Connection to the Switch
ETH-BA-2EL
Description
Communication module for the transmission of Ethernet protocols via
2 electrical interfaces
Product code P1Zxxxxxxxxxx
Figure
Connector type 2 x RJ45
Baud rate 100 Mbit/s
Protocol DIGSI 5 protocol (secure Web service protocol)
IEC 61850 (MMS and GOOSE)
DNP3
Modbus
IEC 60870-5-104
PROFINET IO
Synchrophasor protocol
You can switch other network services like SNMP, RSTP, PRP, HSR, SNTP,
and SUP Ethernet on and off.
Max. line length 20 m with Ethernet patch cable CAT 5
4.2.5.2
Plug-In Modules
4.2 Communication Modules
148 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
