The connections are distributed over six 10-pole terminals.
Terminals
Overview of Terminals
[dw_io233x, 1, en_US]

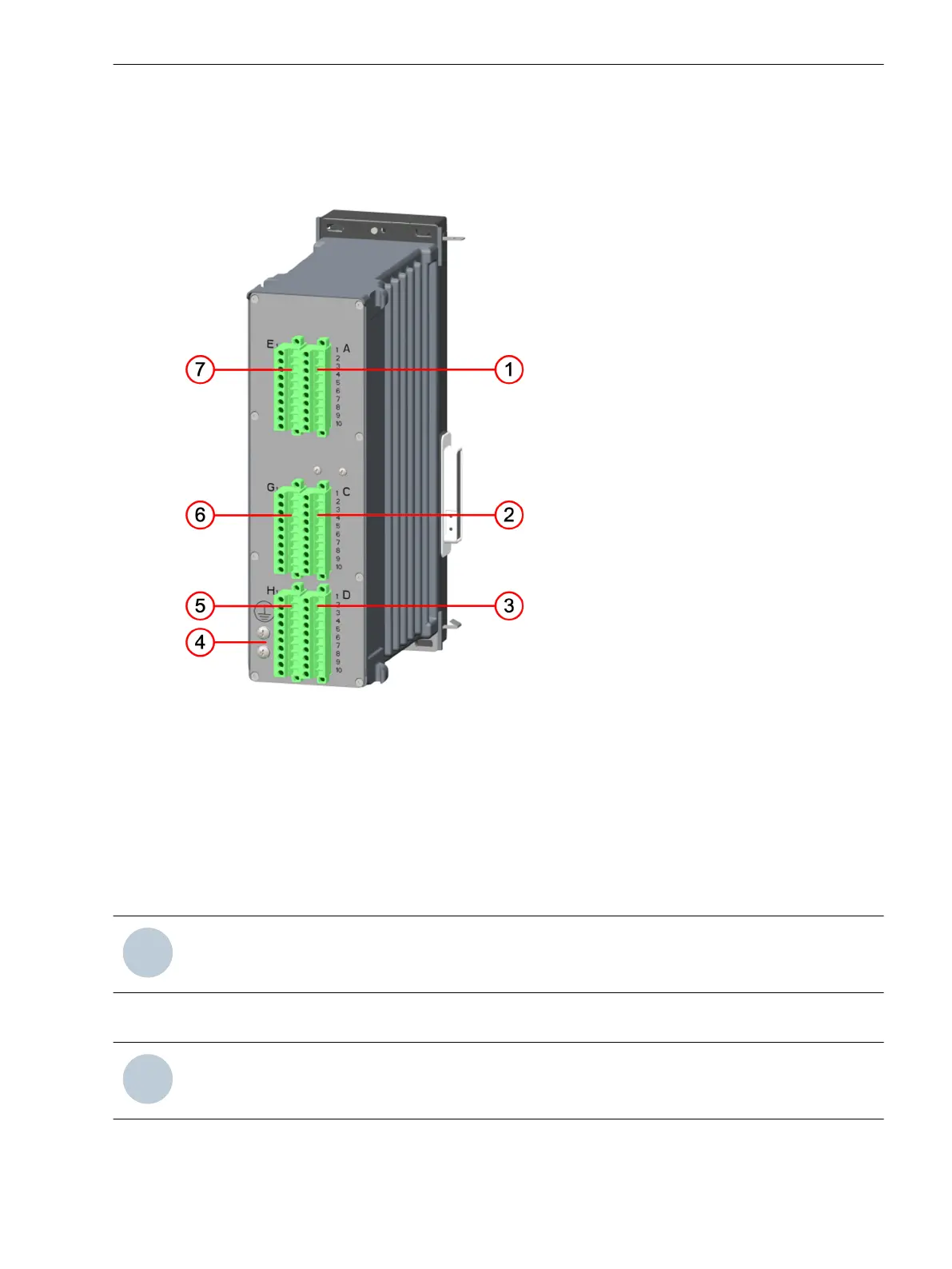

Figure 3-58
IO233 – Terminals
(1) Terminal xA
(2) Terminal xC
(3) Terminal xD
(4) Protective grounding terminal
(5) Terminal xH
(6) Terminal xG
(7) Terminal xE
NOTE
x corresponds to the slot in the 19-inch rack.
Terminal and Connection Diagram
NOTE
The polarities of the voltages at the binary inputs must not be reversed!
3.2.18.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 99
C53000-G5040-C002-C, Edition 10.2017
