Siemens SIPROTEC 5 Hardware Description

Input Module IO230
Description
The terminals for the following are located on the IO230 module:
•
48 binary inputs
The connections are distributed over six 10-pole connection terminals.
i
i
NOTE
Note that the IO230 input module has group switching for switching thresholds. The thresholds of the
binary inputs can be switched only in groups of 4. 4th group x1 to x4 and 4th group x7 to x10 (x = A, C, D,
E, G, H).
Terminals

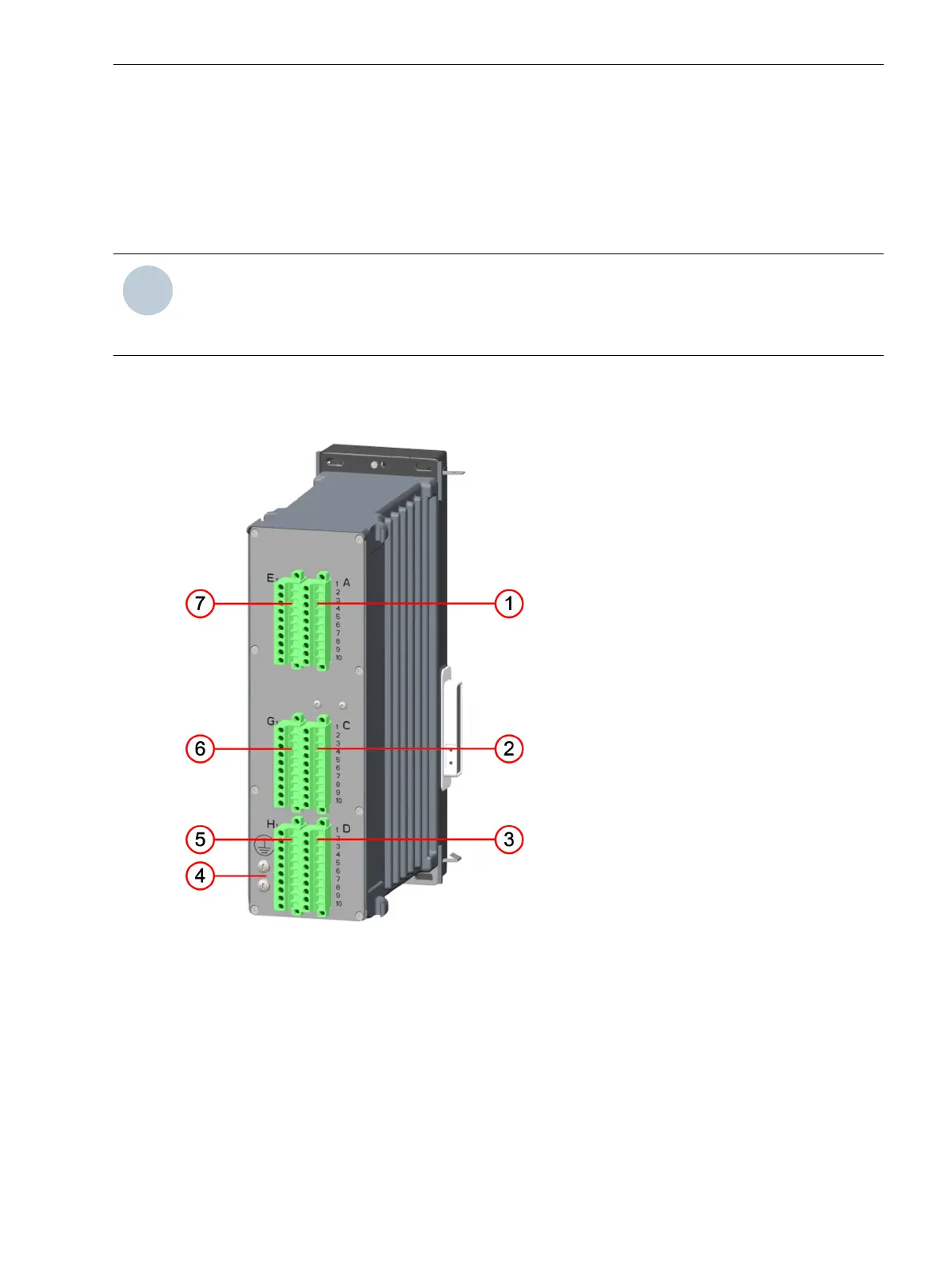

Overview of Terminals
[dwio230x-030713-01.tif, 2, --_--]
Figure 3-52
IO230 – Terminals
(1) Terminal xA
(2) Terminal xC
(3) Terminal xD
(4) Protective grounding terminal
(5) Terminal xH
(6) Terminal xG
(7) Terminal xE
3.2.16
3.2.16.1
3.2.16.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 93
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
