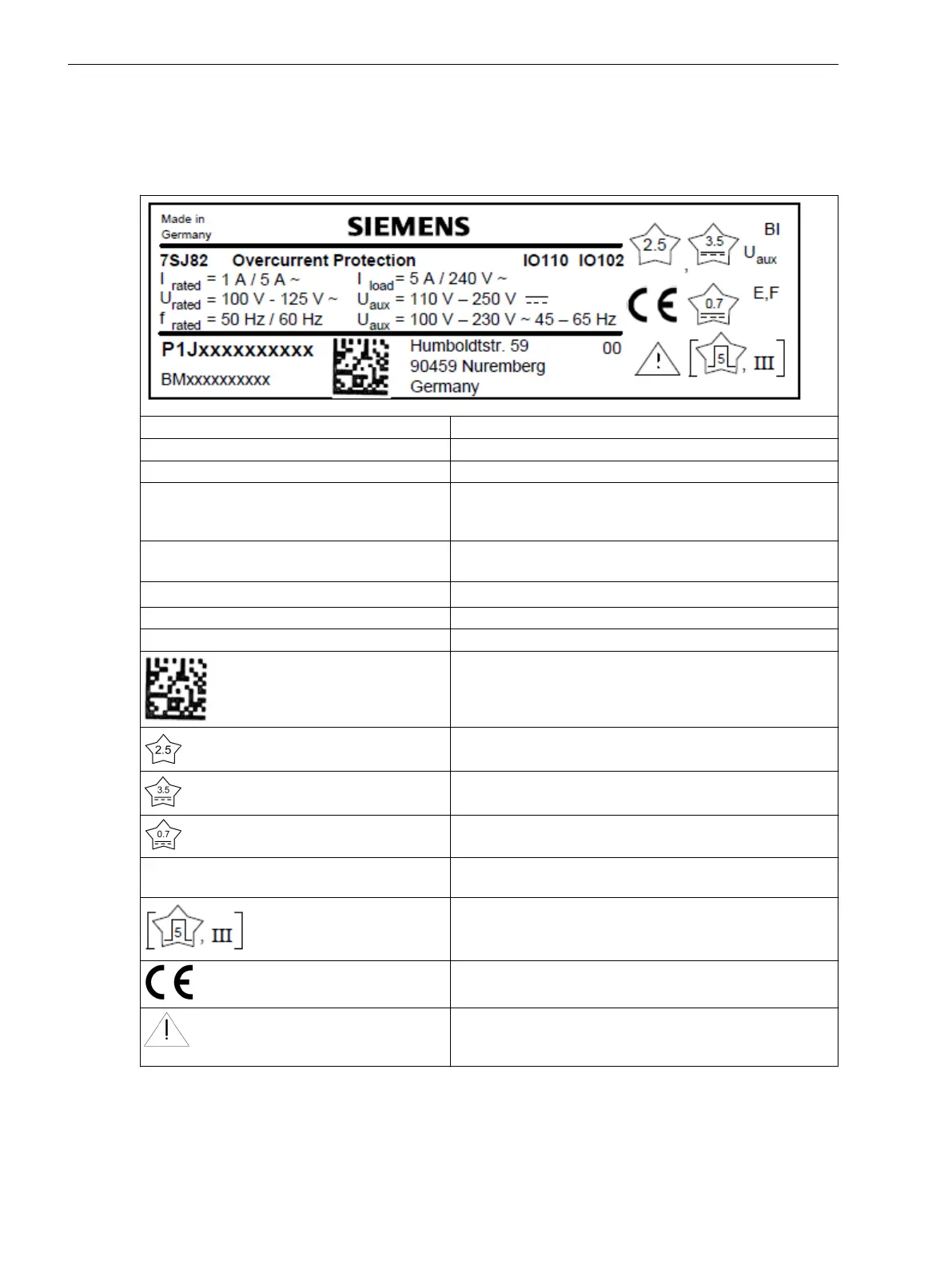

Siemens SIPROTEC 5

High-Speed Relay with Semiconductor Acceleration (Type HS)
Rated voltage AC 200 V, DC 250 V
Rated current (continuous) 5 A (in accordance with UL approval)
10 A (not UL approved; AWG 14 / 2.5 mm
2
copper
conductors necessary)
Permissible current per contact (switching on and
holding)
30 A for 1 s
Short-time current across closed contact 250 A for 30 ms
Breaking capacity Max. 2500 W (L/R = 40 ms)
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
Make time: typical: 0.2 ms; maximum: 0.2 ms
Break time: typical: 9 ms; maximum: 9 ms
Max. rated data of the output contacts in accordance
with UL certification
B150
Q300
Interference suppression capacitors across the
contacts
4.7 nF, ± 20 %, AC 250 V
Safety/monitoring 2-channel activation
Power Relay (for Direct Control of Motor Switches)
Rated voltage (AC and DC) 250 V
Rated current (continuous) and total permissible
current for contacts connected to common potential
5 A
Switching power for permanent and periodic opera-
tion
In order to prevent any damage, the external protec-
tion circuit must switch off the motor in case the rotor
is blocked.
250 V/4.0 A
220 V/4.5 A
110 V/5.0 A
60 V/5.0 A
48 V/5.0 A
24 V/5.0 A
Turn on switching power for 30 s, recovery time until
switching on again is 15 minutes.
For short-term switching operations, an impulse/
pause ratio of 3 % must be considered.
In order to prevent any damage, the external protec-
tion circuit must switch off the motor in case the rotor
is blocked.
100 V/9.0 A
60 V/10.0 A
48 V/10.0 A
24 V/10.0 A
Permissible current per contact (switching on and
holding)
30 A for 1 s
Short-time current across closed contact 250 A for 30 ms
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
≤ 16 ms
Max. rated data of the output contacts in accordance
with UL certification
DC 300 V, 4.5 A – 30 s ON, 15 min OFF
DC 250 V, 1 hp Motor – 30 s ON, 15 min OFF
DC 110 V, 3/4 hp Motor – 30 s ON, 15 min OFF
DC 60 V, 10 A, 1/2 hp Motor – 30 s ON, 15 min OFF
DC 48 V, 10 A, 1/3 hp Motor – 30 s ON, 15 min OFF
DC 24 V, 10 A, 1/6 hp Motor – 30 s ON, 15 min OFF
Interference suppression capacitors across the
contacts
4.7 nF, ± 20 %, AC 250 V
Safety/monitoring 2-channel activation
The power relays operate in interlocked mode, that is, only one relay of each switching pair picks up at a time
thereby avoiding a power-supply short circuit.
Technical Data
6.4 Relay Outputs
