Siemens SIPROTEC 5 Hardware Description

[tdio202x-240812-01.tif, 1, en_US]

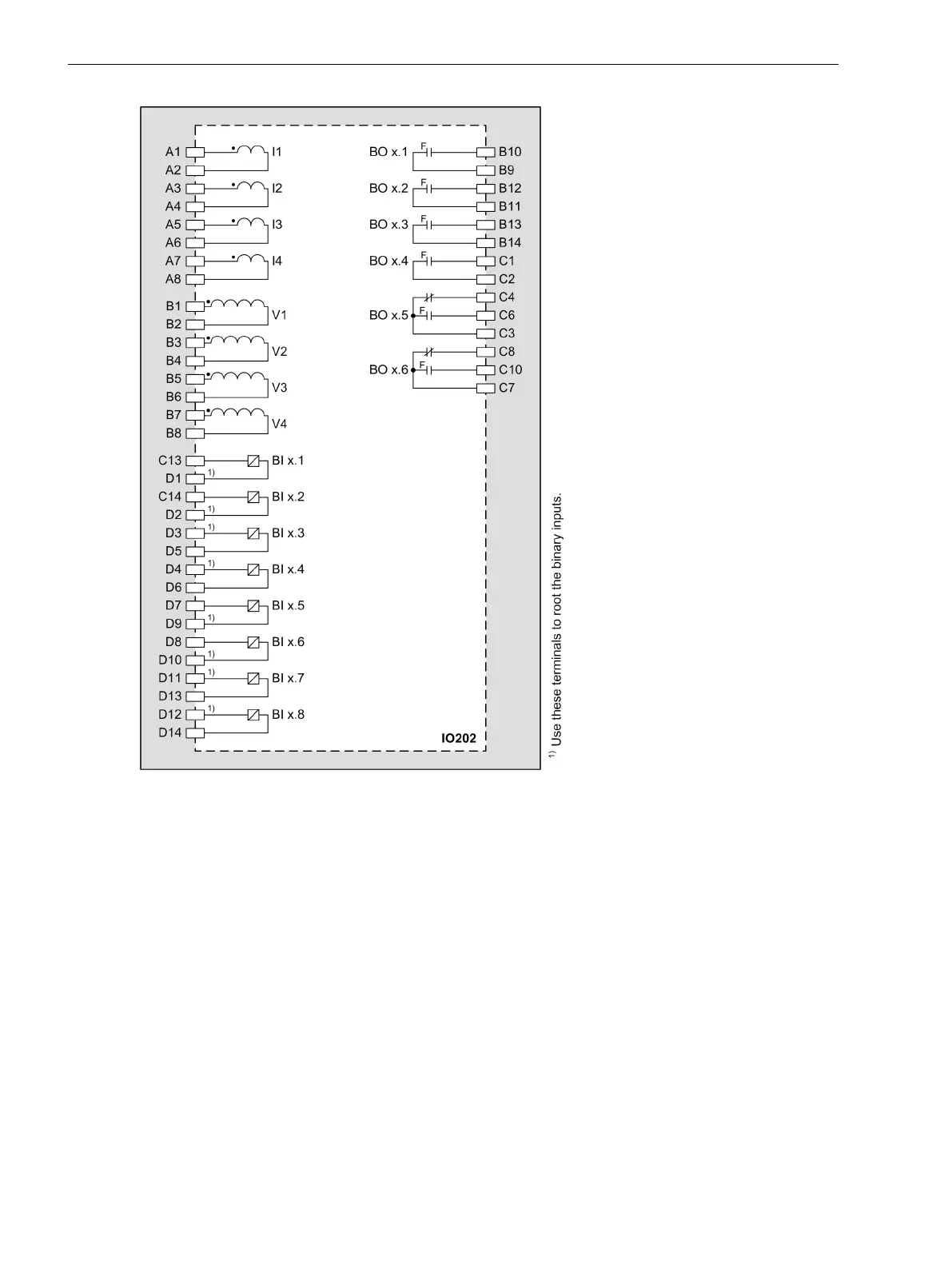

Figure 3-18
IO202 – Connection Diagram
Input and Output Module IO203
Description
The terminals for the following are located on the input and output module IO203:
•
8 current transformers (optionally protection-class current transformers or instrument transformers)
•
4 binary inputs (2 binary inputs each with common connection)
•
4 binary outputs with 4 high-speed make contacts (type F)
The connections are distributed over:
•
2 x 8-pole current terminal
•
1 x 14-pole voltage terminal
3.2.4
3.2.4.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
60 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
