Siemens SIPROTEC 5 Hardware Description

[dw_osop_with_pushbutton, 2, --_--]

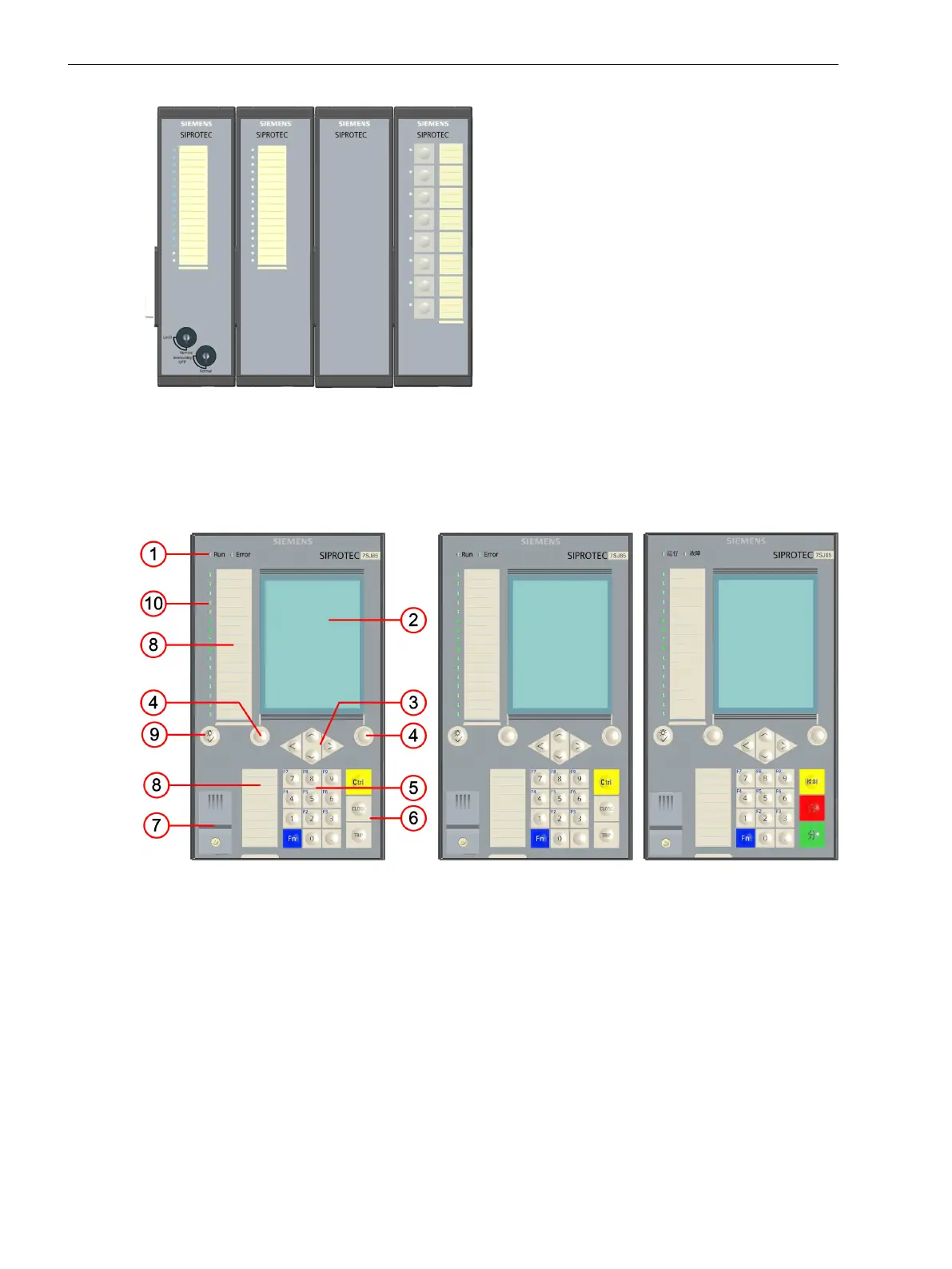

Figure 2-20 Variants 1/6 Views
Overview of Operating Elements and Display Elements
On-Site Operation Panel of the Base 1/3 Module
[le_base_module, 1, --_--]
Figure 2-21 Base 1/3 Module in Standard, US, and China Design
(1) Operating state display
(2) Display in 2 design versions
(3) Keypad with navigation keys
(4) Softkey
(5) Keypad with numerical keys and shiftable function keys
(6) Keypad of control keys
(7) USB port cover
(8) Cover labels
(9) Reset and LED test key
(10) 16 two-colored LEDs
2.4.2
Forms of Devices and On-Site Operation Panels
2.4 On-Site Operation Panels
38 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
