Siemens SIPROTEC 5 Hardware Description

Terminals
Overview of Terminals
[dwio214p-030211-01.tif, 2, --_--]

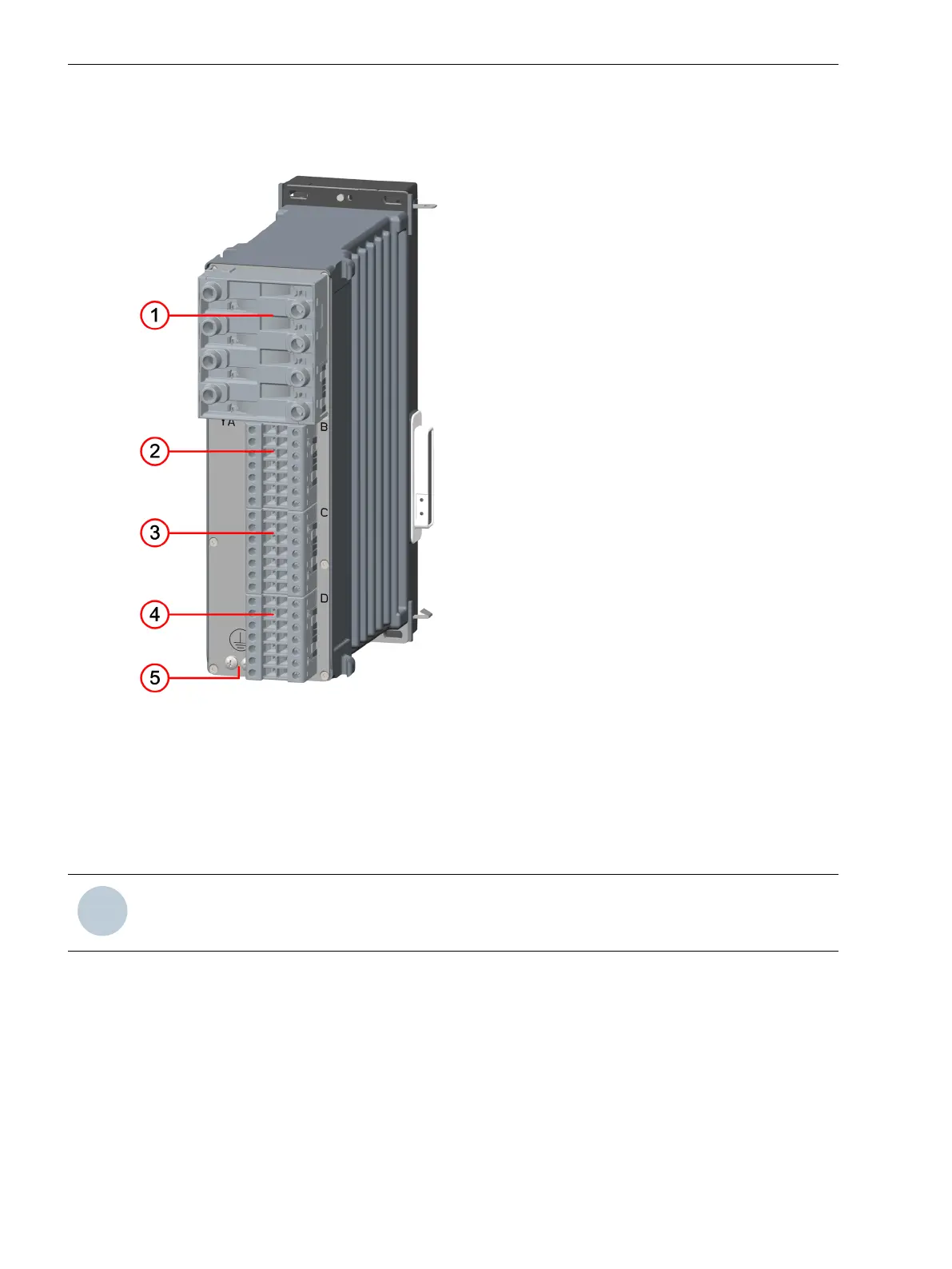

Figure 3-49
IO214 – Terminals
(1) Current terminal xA
(2) Voltage terminal xB
(3) Voltage terminal xC
(4) Voltage terminal xD
(5) Protective grounding terminal
i
i
NOTE
x corresponds to the slot in the 19-inch rack.
3.2.14.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
90 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
