Siemens SIPROTEC 5 Hardware Description

Communication Modules
Overview
SIPROTEC devices can be ordered with factory-installed communication modules. The communication modules
can also be installed and replaced in the SIPROTEC devices afterwards. You do not have to open the device for
this.
i
i
NOTE
The communication modules available for reordering are not preconfigured. Use DIGSI 5 to carry out the
functional adjustment to the required protocol application.
The communication modules can be installed in the base module or the 1/3 module and in the expansion
module with the plug-in module assembly CB202. A maximum of 2 communication modules each can be
installed. You can use only one CB202 in the device.
The plug-in module assembly CB202 is a PCB assembly with an integrated power supply.
The plug-in module assembly CB202 communicates with the base module via a special connecting cable. This
connecting cable (CAT 5 FTP patch cable) is always included in the scope of delivery of the CB202 assembly or
the devices containing the CB202 assembly and need not be ordered separately.
Ensure that you route the communication lines separately from network circuits.
[dwcm201p-030211-01.tif, 2, --_--]

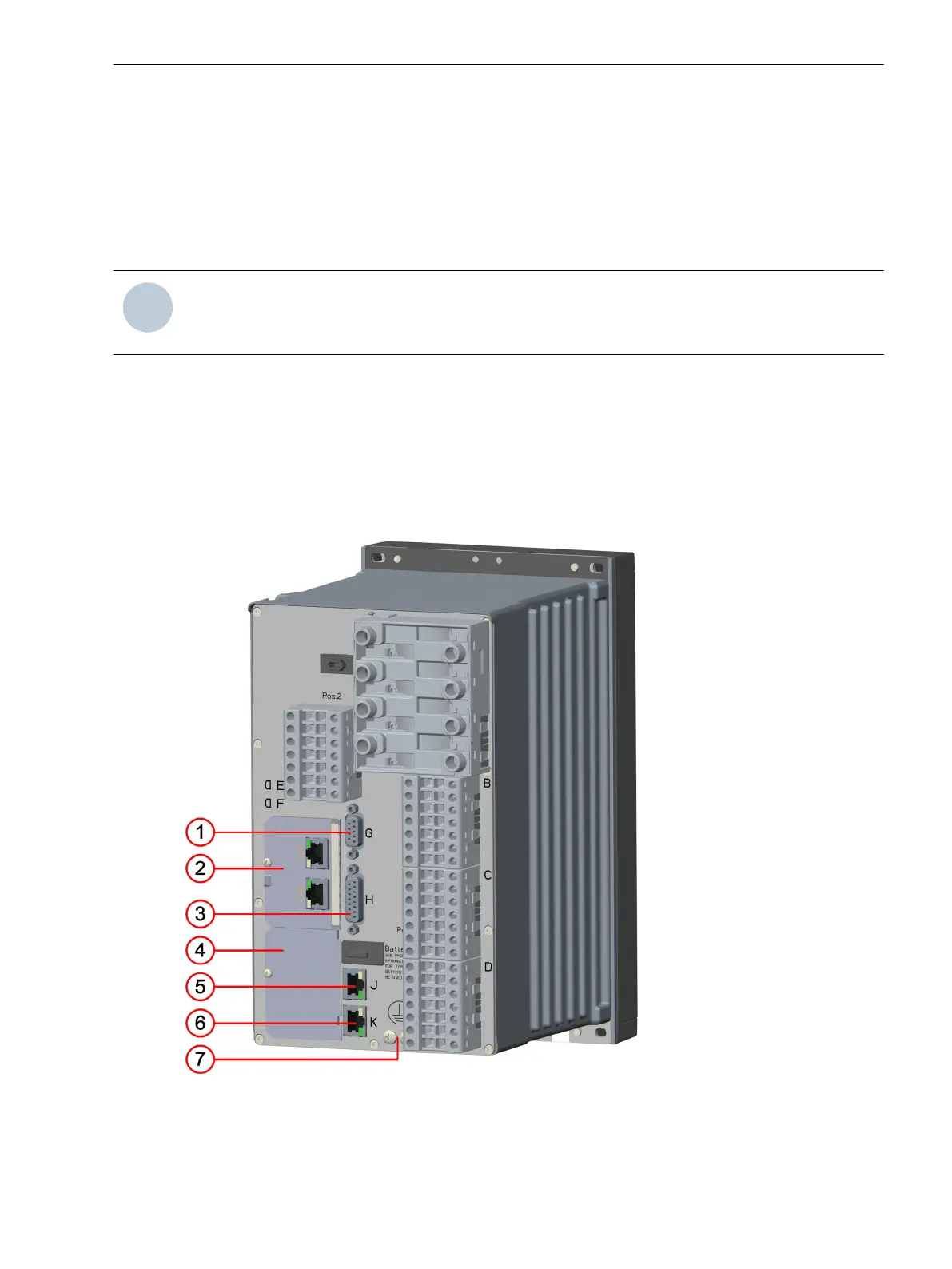

Figure 4-1
Plug-In Module Positions and Communication Terminals in the Base Module, with Modular
Devices
4.2
4.2.1
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 129
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
