Siemens SIPROTEC 5 Hardware Description

(4) Rear plate of the on-site operation panel
(5) Connecting cable between the base module and the on-site operation panel
Fastening Openings
[dwbaaube-040211-01.tif, 2, --_--]

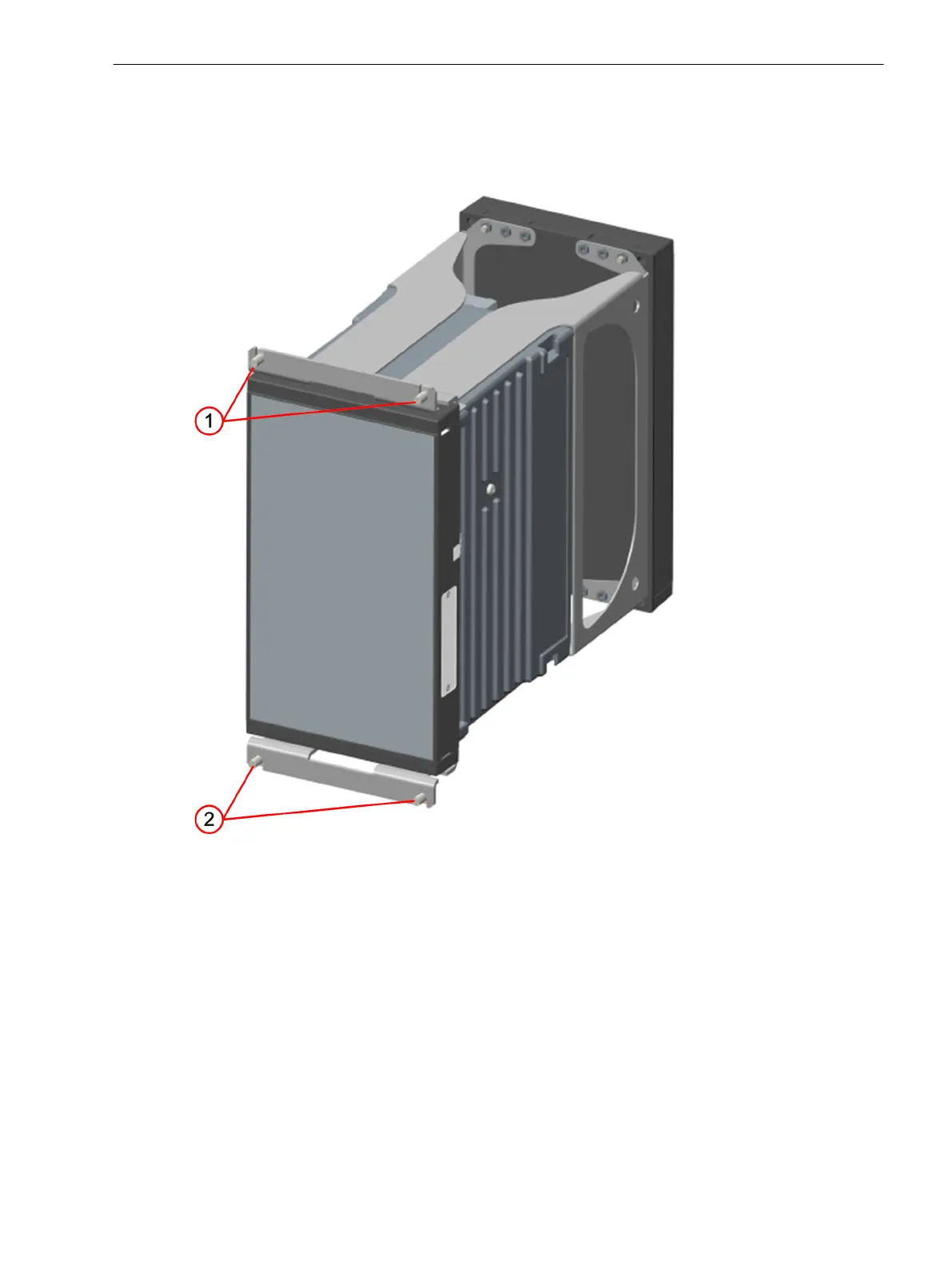

Figure 2-17
Device Structure of the Base Module
(1) Top fastening openings
(2) Bottom fastening openings
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
SIPROTEC 5, Hardware Description, Manual 35
C53000-G5040-C002-C, Edition 10.2017
