NOTE
The following unused terminal pairs must be individually short-circuited, using the voltage terminal cross-
connectors (product code P1Z550):
•
A2 and A4
•
B2 and B4
•
C2 and C4
•
D2 and D4
•
A12 and A14
•
B12 and B14
•
C12 and C14
•
D12 and D14
•
D1 and D3
•
D5 and D7
•
D6 and D8
•
D11 and D13
²
Slide the strain-relief plate from the left toward the voltage terminals.
Electronic Modules

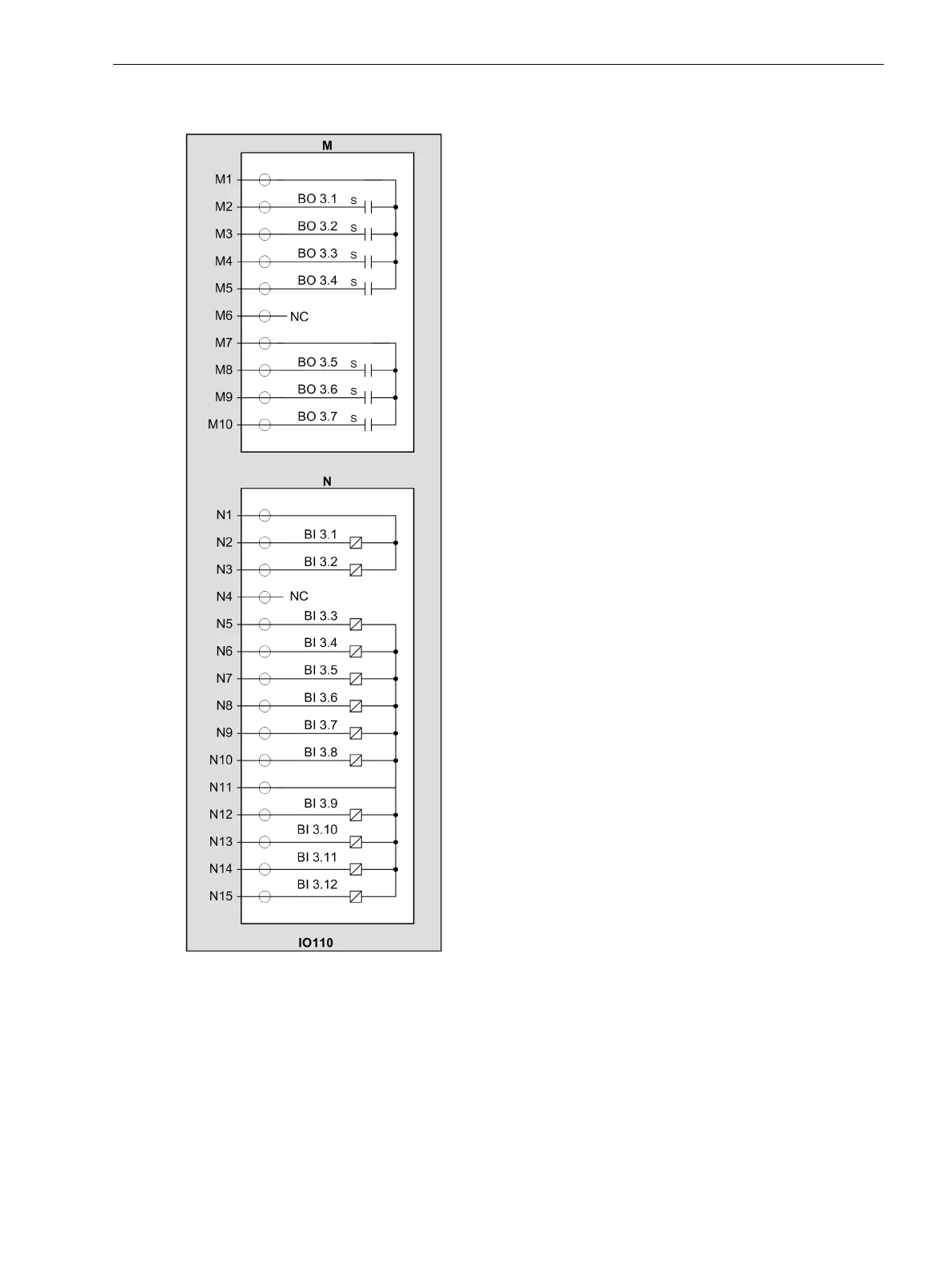

3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 119
C53000-G5040-C002-N, Edition 04.2022
